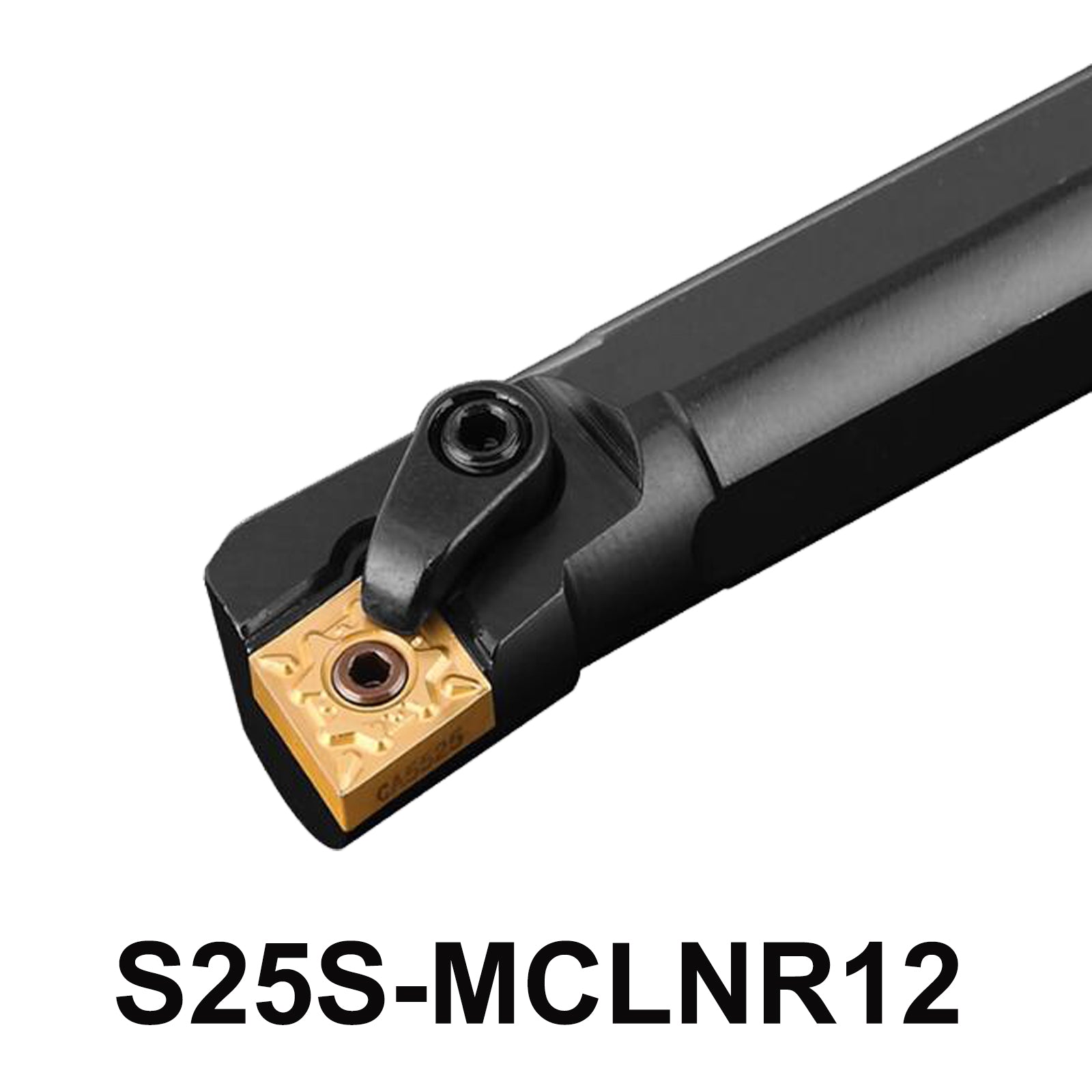

S25S-MCLNR12 Small Boring Bar Right Tool Holder for CNC Lathes | Alloy Steel Construction
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S25S-MCLNR12 Boring Bar Right Tool Holder for CNC Lathes S25S MCLNR12
H2 Tags:
- Overview of S25S-MCLNR12 Tool Holder
- Features of S25S-MCLNR12 Internal Turning Tool Holder
- Specifications and Dimensions of S25S-MCLNR12
H3 Tags:
- Alloy Steel Construction
- 95° Cutting Edge Angle
- Compatible with CNMG Inserts
- Complete Kit Included
- Suitable for CNC Machining
Overview:
The S25S-MCLNR12 Boring Bar Right Tool Holder is designed for precision internal turning operations on CNC lathes and machining centers. Constructed from high-quality alloy steel. The tool holder features a cutting edge angle of 95° and a relief angle of 0°, optimized for efficient chip control and extended tool life. It comes with a complete set of accessories including CTM613 pin, HL1810 clamp, ML0620 screw, and L3.0 wrench, facilitating easy installation and maintenance..
Specifications and Dimensions:
- Tool Holder Type: Boring Bar Right Tool Holder
- Model: S25S-MCLNR12
- Material: Alloy Steel
- Diameter of Handle: 25mm
- Total Length: 250mm
- Length of Cutting Blade: 12mm
- Accessories Included: CTM613 pin, HL1810 clamp, ML0620 screw, L3.0 wrench
- Compatible Inserts: CNMG120404, CNMG120408, CNMG120412, CNMG120416, CNMG431, CNMG432, CNMG433, CNMG434
- Applications: CNC Machine Tools, CNC Lathes
5-Point Description:
-
Durable Alloy Steel Construction: Provides longevity and reliability in machining operations.
-
Optimized Cutting Edge Angle: 95° cutting edge angle for precise internal turning.
-
Versatile Insert Compatibility: Supports a variety of CNMG inserts for different machining needs.
-
Complete Kit for Easy Setup: Includes all necessary accessories for convenient installation and maintenance.
-
Ideal for CNC Machining: Designed specifically for CNC lathes, ensuring efficient performance.
Choosing the S25S-MCLNR12 ensures you have a reliable and versatile tool holder that meets the rigorous demands of CNC machining, providing precision, durability, and efficiency in every application.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
