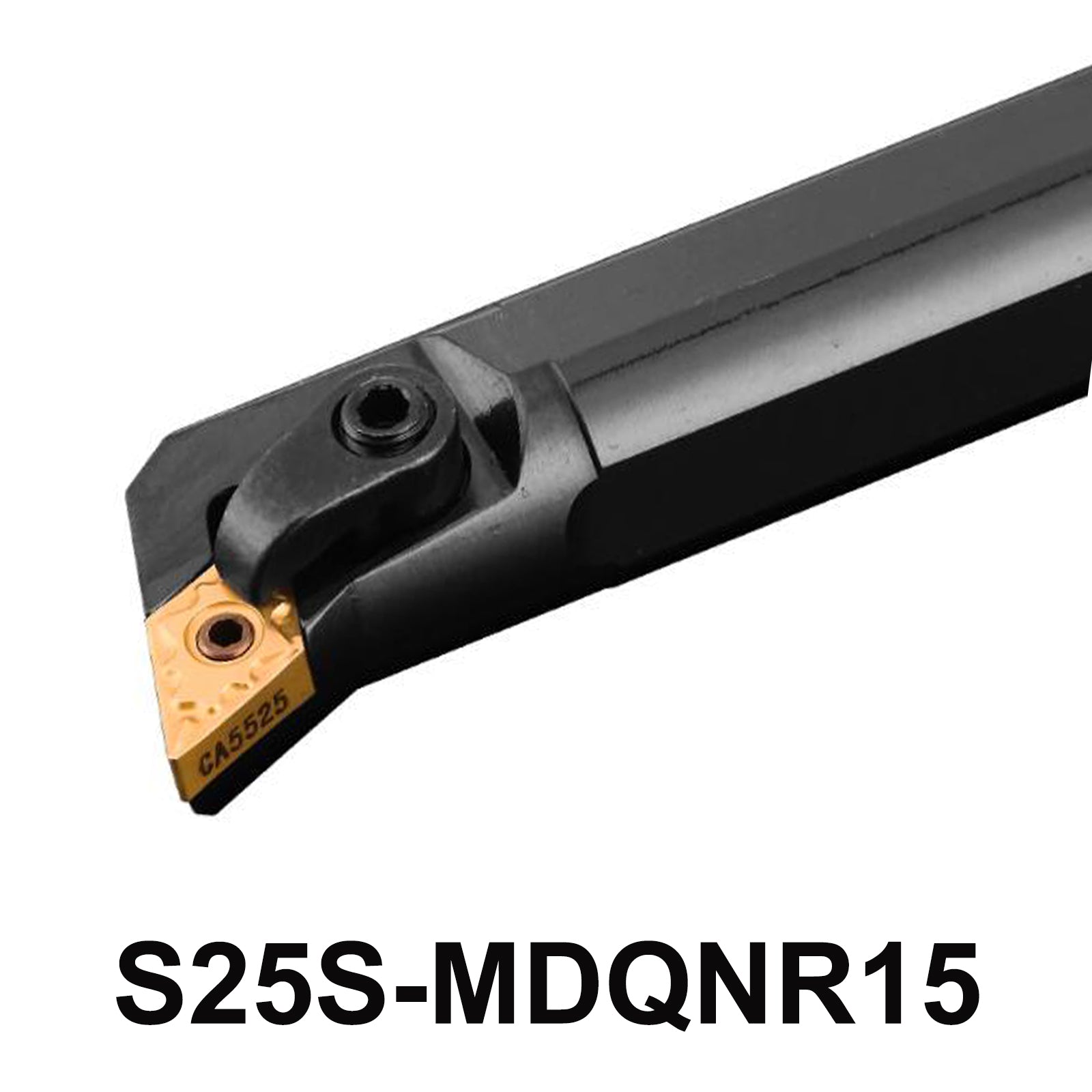

Product Name:S25S-MDQNR15 Internal lathe boring bar holder

Overview:The S25S-MDQNR15 internal boring bar is a precision tool designed for CNC machine tools and lathes. It features a robust alloy steel construction with a 107.5° tool cutting edge angle and 0° relief angle of the blade. Equipped with an M-type multi-lock system, it ensures secure clamping and stability during machining operations.

Features:

• Material: Alloy Steel
• Tool Holder Type: Internal Turning Tools Holder
• Cutting Edge Angle: 107.5°
• Relief Angle: 0°
• Multi-Lock System (M-Type): Provides secure insert clamping for stability and precision during machining.

Specifications:

• Diameter of Handle: 25mm
• Total Length: 250mm
• Length of Cutting Blade: 15mm
• Pin: CTM613
• Clamp: HL2114
• Screw: ML0625
• Wrench: L3.0

Applications:Ideal for internal boring, facing, and turning operations.

Insert Compatibility: DNMG150404, DNMG150408, DNMG150412, DNMG431, DNMG432, DNMG433

Benefits:

• Durability: Made from robust alloy steel for extended tool life.
• Precision: Advanced cutting edge geometry ensures efficient material removal.
• Versatility: Compatible with a wide range of DNMG inserts for diverse machining needs.
• Ease of Use: Features a comprehensive set including screws, wrenches, and clamps for convenient setup.

5-Point Description:

1. Precision Machining: Designed for internal turning and boring, the S25S-MDQNR15 ensures precise and efficient operations on CNC machine tools and lathes.

2. Durable Construction: Made from high-quality alloy steel, providing durability and resistance to wear in industrial environments.

3. Optimized Design: Features a 107.5° cutting edge angle and 0° relief angle for optimal performance during cutting and turning processes.

4. Multi-Lock System: Equipped with an M-type multi-lock system for secure clamping of inserts (DNMG150404, DNMG150408, DNMG150412, DNMG431, DNMG432, DNMG433), ensuring stability and accuracy.

5. Versatile Applications: Suitable for various materials including steel, stainless steel, and cast iron, making it an essential tool for machining operations.
