S25S-MSKNL12 CNC Lathe Cutter Machine Tool Compatible With SNMG inserts boring bar holders
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Internal Boring Bar Tool Holder S25S-MSKNL12 - CNC Lathe Cutter Tool S25S MSKNL12 boring bar inserts

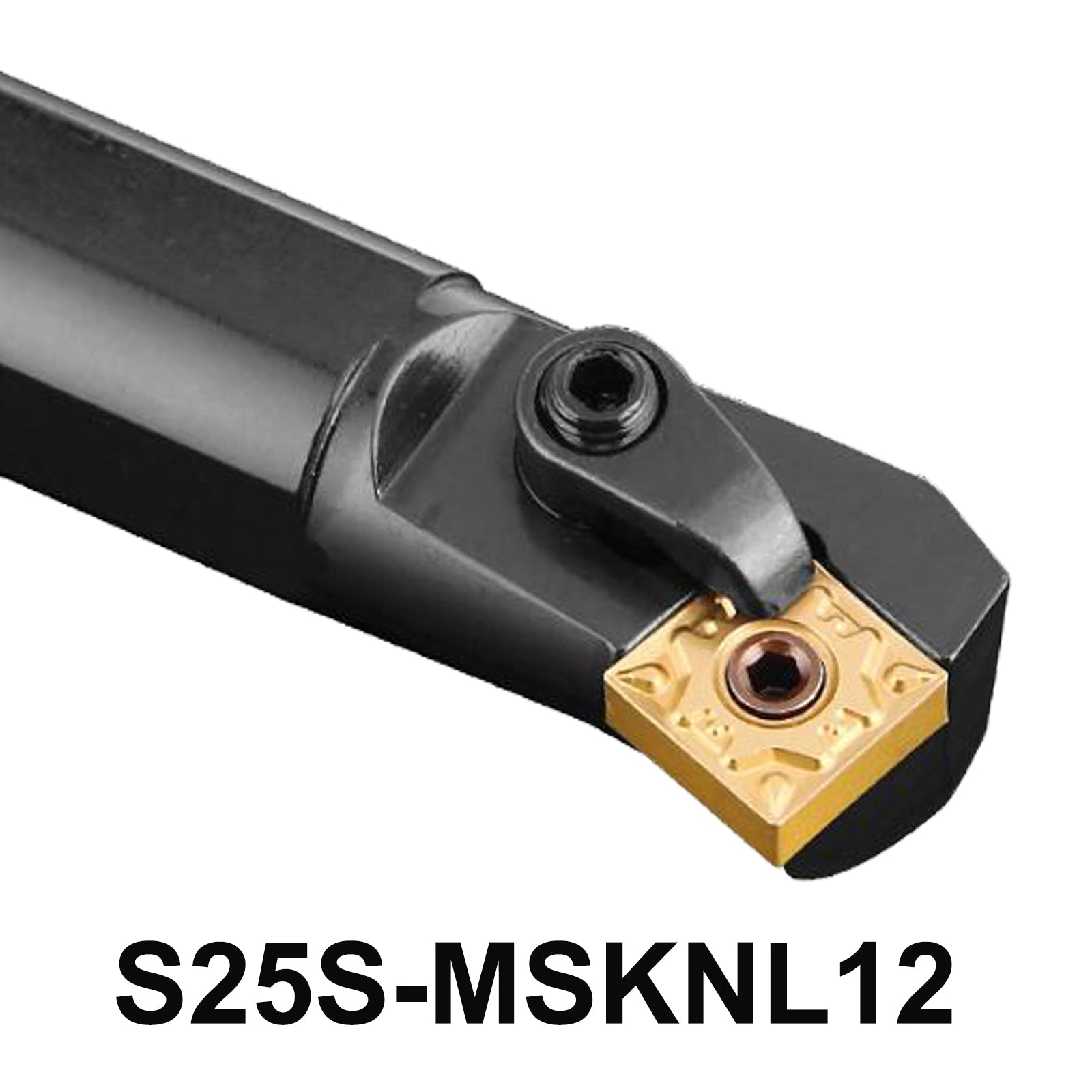

S25S-MSKNL12 Precision Alloy Steel Internal Turning Tool Holder for CNC Lathes
S25S-MSKNL12 Internal Boring Bar Tool holder Details (Including Size, Application, and Advantages)
Detail Page Overview: The S25S-MSKNL12 is a precision-engineered internal boring bar tool holder designed for CNC machine tools and lathes. It features a tool cutting edge angle of 75° and a 0° relief angle, crafted from high-quality alloy steel with an M-type multi-lock system for secure tool holding.
Key Features:
-
Tool Cutting Edge Angle: 75°
-
Relief Angle of Blade: 0°
-
Material: Alloy Steel
-
Total Length: 250mm
- Diameter handle:25mm
- Length of Cutting Blade: 12mm
- Includes Pin: CTM613,
- Clamp: HL1810
- Screw: ML0620
- Wrench: L3.0
- Carbide inserts: SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434
5-Point Description:
-
Material: Crafted from high-quality alloy steel, ensuring durability and resistance to wear and tear in demanding machining environments.
-
Tool Holder Type: Specifically designed for internal turning operations, providing stable and precise cutting performance.
-
Dimensions: Features a 25mm diameter handle with a total length of 250mm. The cutting blade extends up to 12mm, offering ample reach for various machining tasks.
-
Insert Compatibility: Compatible with a wide range of carbide inserts including SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, and SNMG434. This versatility allows for flexibility in machining different materials and geometries.
-
Locking Mechanism: Equipped with a multi-lock system (M-type), which enhances stability and security during operation, ensuring precise cutting results.
Advantages:
- Robust alloy steel construction for durability
- Multi-lock system (M-type) ensures secure tool holding
- Designed for precise internal turning operations
- Compatible with a wide range of carbide inserts for versatile machining applications
Applications:
- Suitable for a wide range of machining applications including internal turning operations,
- Accommodates various SNMG carbide inserts (SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434).
Package Includes:
- S25S-MSKNL12 Tool Holder
- Compatible Clamps, Pins, Screws, and Wrenches
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
