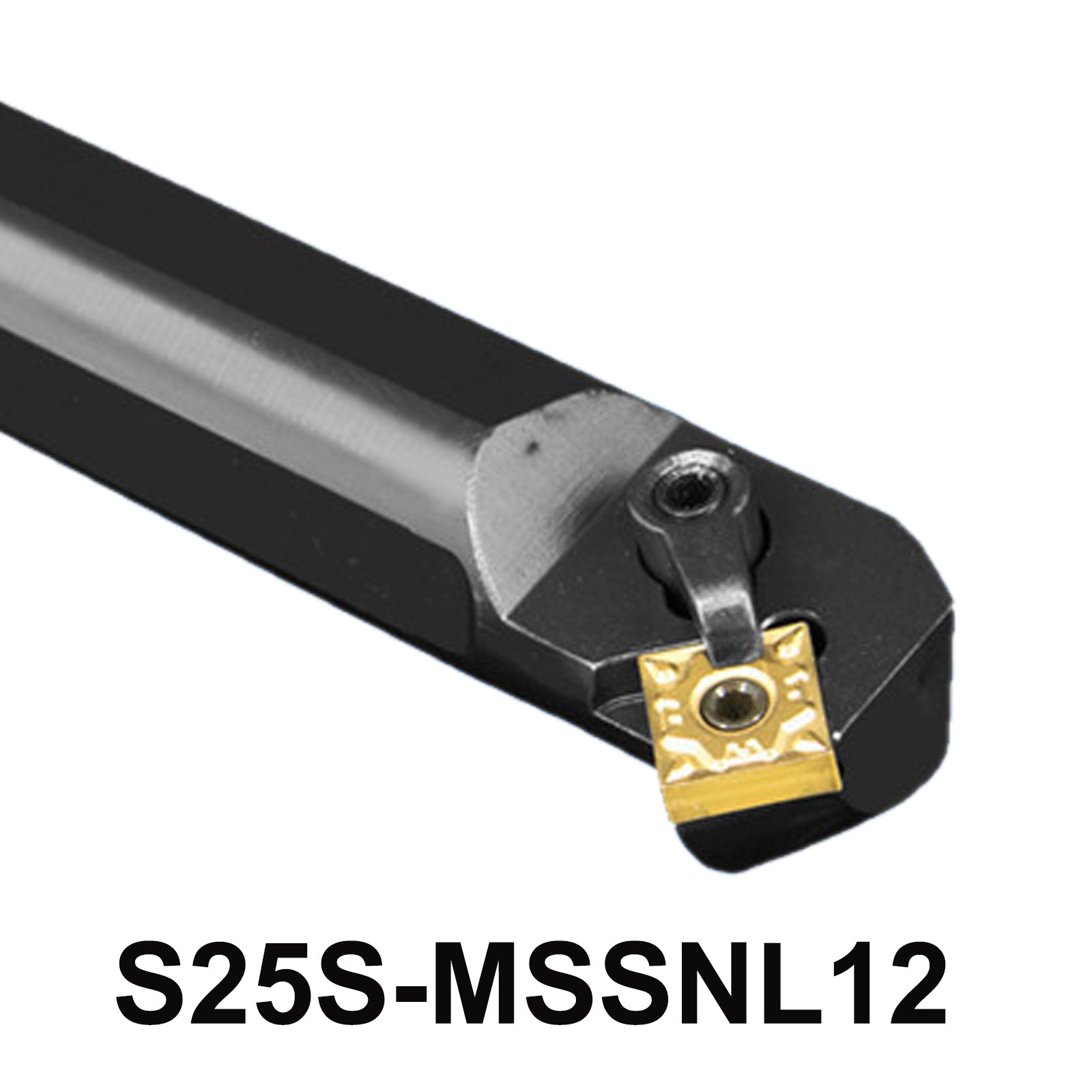

S25S-MSSNL12 CNC Boring Bar Tool Holder Internal Turning Tools for CNC Lathes 25mm Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
- Material: Alloy Steel
- Tool Holder Type: Internal Turning Tools Holder
- Cutting Edge Angle: 45° Relief, 0° Rake Angle
- Dimensions: Diameter of Handle 25mm, Total Length 250mm, Cutting Blade Length 12mm
-
Compatibility: Accepts SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434 Inserts
Application: Ideal for internal turning and boring operations on CNC lathes and machine tools, suitable for both roughing and finishing cuts.
Advantages:
-
Durable Construction: Made from high-quality alloy steel for longevity.
- Versatile Compatibility: Compatible with a range of carbide inserts for various machining needs.
- Precision Machining: 45° cutting edge angle for accurate and smooth cutting.
- Ease of Use: Includes components such as CTM613 pin, HL1810 clamp, ML0625 screw, and L3.0 wrench, facilitating straightforward installation and maintenance.
5-Point Description:
-
Precision Machining Tool: The S25R-MSSNL12 CNC Boring Bar Tool Holder is engineered for precision machining operations on CNC lathes and machine tools. It features a tool cutting edge angle of 45° with a 0° relief angle, ensuring sharp and accurate cutting performance.
-
Durable Alloy Steel Construction: Crafted from high-quality alloy steel, this tool holder offers exceptional durability and resistance to wear and tear. It is designed to withstand the rigors of continuous use in industrial machining environments.
-
Versatile Compatibility with Carbide Inserts: Compatible with a variety of carbide inserts including SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434. This versatility allows for a wide range of machining applications and cutting tasks.
-
Secure Multi-Lock System: Equipped with an M-type multi-lock system, the S25R-MSSNL12 ensures a secure grip and stable tool holding during operation. This enhances precision and reduces the risk of tool displacement or vibration.
-
Ideal for CNC Machine Tools and Lathes: Specifically designed for use in CNC machine tools and lathes, this tool holder facilitates efficient internal turning and boring operations. It is suitable for both roughing and finishing cuts, making it a versatile choice for machinists and manufacturing professionals.
S20R-MSSNL12 S20R MSSNL12 CNC Boring Bar Tool Holder lathe boring bar tool holder
-
Specifications, advantages and applications of internal boring bar tool holders
-
Compatible with Standard SNMG Inserts
-
Precision Machining Tool
-
Main specifications include 25mm Diameter of handle and Total length: 250mm
-
SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434
-
High-quality alloy steel construction for durability and reliability
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
