S25S-MTFNL16 CNC Boring Bar Tool Holder | Internal Turning Tools Holder 25*250mm
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S20R-MTFNL16 CNC lathe boring bar holder cnc lathe boring bar sleeves
Buy S20R-MTFNL16 CNC Boring Bar Tool Holder | Alloy Steel, M-Type
Specifications and Features of S25S-MTFNL16

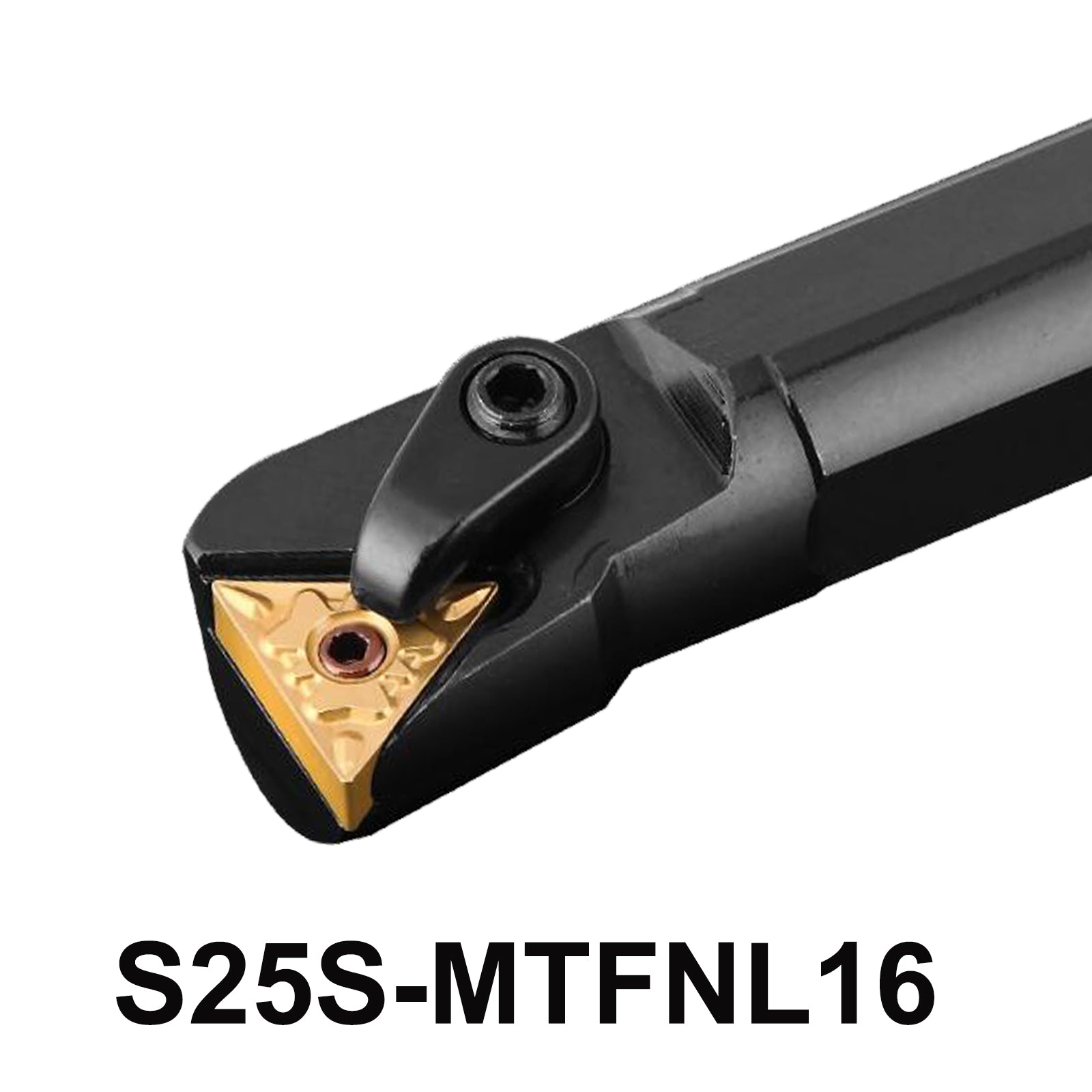

Product Name:S25S-MTFNL16 Internal lathe boring bar holder
Overview:The S25S-MTFNL16 CNC boring bar tool holder is designed for precise internal turning operations on CNC machine tools and lathes. It features a 91° cutting edge angle with a relief angle of 0°, made from high-quality alloy steel. The multi-lock M-type system ensures secure clamping during machining operations.
Detail Page:
- Material: Alloy Steel
- Cutting Edge Angle: 91°
- Relief Angle: 0°
- Model: S25S-MTFNL16
- Type: Internal Boring Bar, Right Tool Holder
- Handle Diameter: 25mm
- Total Length: 200mm
- Cutting Blade Length: 11mm
-
Compatible Blades: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
- Accessories: CTM511 pin, HL1810 clamp, ML0620 screw, L2.0 L3.0 wrenches
Advantages:
- Precision Machining: [Highlight specific precision features]
- Durability: Made from durable alloy steel.
- Secure Clamping: M-type multi-lock system ensures stability.
- Versatility: Compatible with a range of inserts for different machining needs.
- Application: Ideal for CNC lathes and machine tools, suitable for internal turning operations.
Application:
Suitable for internal turning operations in CNC machine tools and lathes, the S25R-MTFNL16 tool holder accommodates various inserts, making it versatile for machining tasks.
5-Point Description:
-
Precision Engineering: Crafted from durable alloy steel, the S25S-MTFNL16 boasts a precise 91° cutting edge angle, ensuring efficient machining operations.
-
Secure Tool Holding: Featuring an advanced multi-lock system (M-type), this tool holder provides robust clamping force, maintaining stability during high-speed turning.
-
Versatile Compatibility: Compatible with a variety of carbide inserts including TNMG160404, TNMG160408, and more, making it adaptable to different machining needs.
-
Optimized Design: With a 25mm diameter handle and a total length of 250mm, it offers a balanced design for enhanced control and performance on CNC lathes and machine tools.
-
Application Flexibility: Ideal for internal turning tasks, the S25S-MTFNL16 excels in precision cutting applications, ensuring superior results across various workpieces.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
