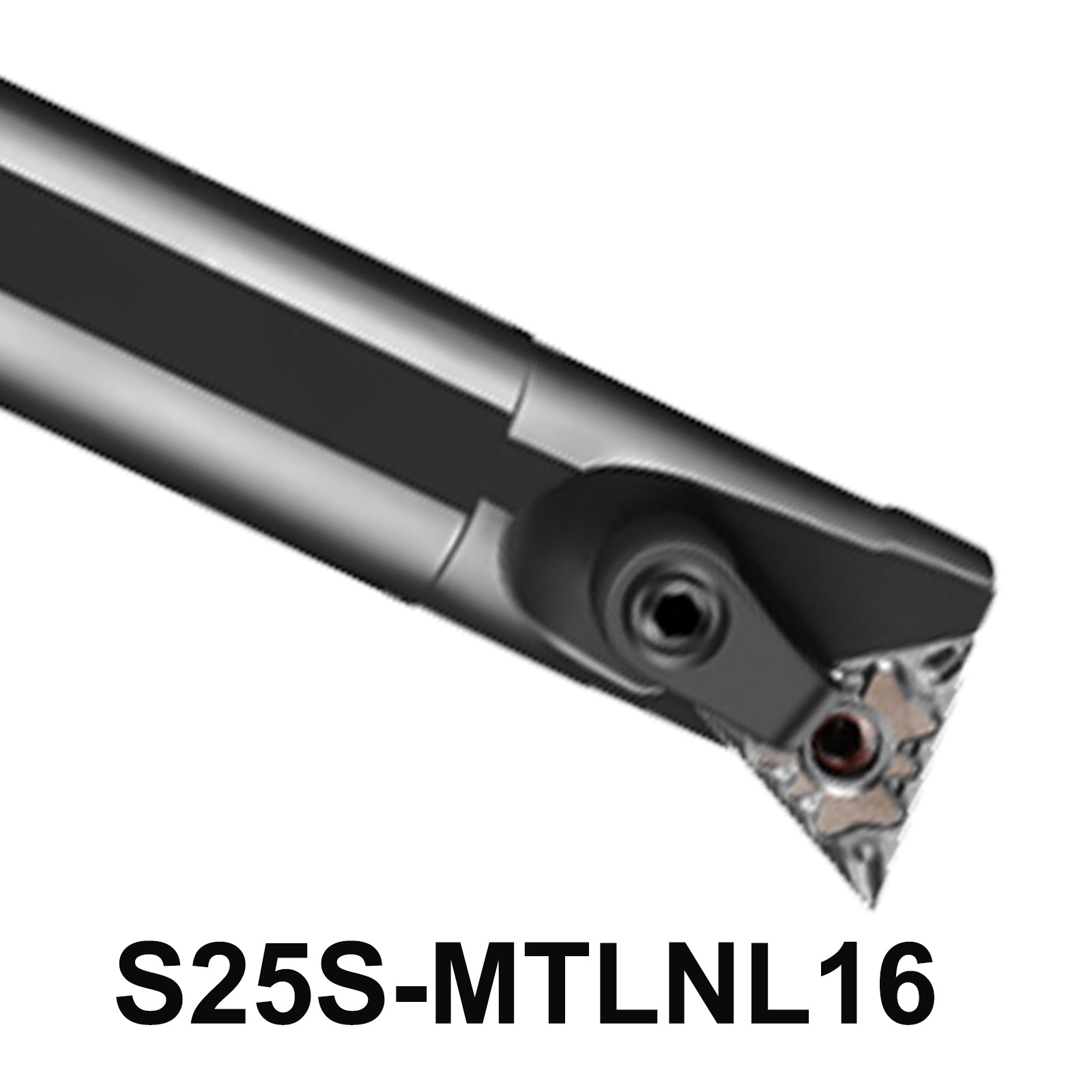

S25S-MTLNL16 Internal Boring Bar Tool Holder | CNC Iathe boring bar carbide

Details (Overview and Specifications)

Overview:

The S25S-MTLNL16 is an advanced internal boring bar tool holder designed for precision machining applications on CNC machine tools and lathes. This tool holder is equipped with a 95° cutting edge angle and a 0° relief angle, facilitating precise internal turning operations and achieving high-quality surface finishes.

Specifications:

• Material: Alloy Steel

• Model: S25R-MTLNL16

• Tool Type: Internal Turning Tools Holder

• Cutting Edge Angle: 95°

• Relief Angle of Blade: 0°

• Diameter of Handle: 25mm

• Total Length: 250mm

• Length of Cutting Blade: 16mm

• Components: Pin CTM511, Clamp HL1810, Screw ML0625, Wrench L2.0, L3.0

• Blades Compatibility: TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333


Precision Tool for CNC Machining

Advantages:

• Precision Machining: 95° cutting edge angle and 0° relief angle for precise internal turning.
• Durable Construction: Made from alloy steel for reliability in demanding machining environments.
• Secure Clamping: M-type multi-lock system ensures stable tool holding and reduced vibration.
• Versatile Compatibility: Compatible with multiple TNMG inserts for diverse material machining.
• Ease of Use: Includes all necessary accessories for easy setup and maintenance on CNC machines.

Application:

The S25S-MTLNL16 is primarily used in CNC machine tools and lathes for internal turning operations. It accommodates TNMG series carbide inserts, making it suitable for machining a wide range of materials, including metals and alloys.

5-Point Product Description for S25S-MTLNL16:

1. Precision Machining: Designed for internal turning operations with a 95° cutting edge angle and 0° relief angle, ensuring precise results and high-quality surface finishes.

2. Durable Construction: Made from robust alloy steel, the S25S-MTLNL16 offers durability and reliability, suitable for continuous use in CNC machine tools and lathes.

3. Secure Clamping System: Features an M-type multi-lock system for secure clamping of TNMG series carbide inserts, providing stability and reducing vibration during machining.

4. Versatile Compatibility: Compatible with a wide range of TNMG inserts (TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), it supports machining of various materials from standard metals to challenging alloys.

5. Easy Maintenance: Includes essential accessories such as the CTM511 pin, HL1810 clamp, ML0625 screw, and L2.0/L3.0 wrenches for easy assembly, adjustment, and maintenance on CNC machines.
