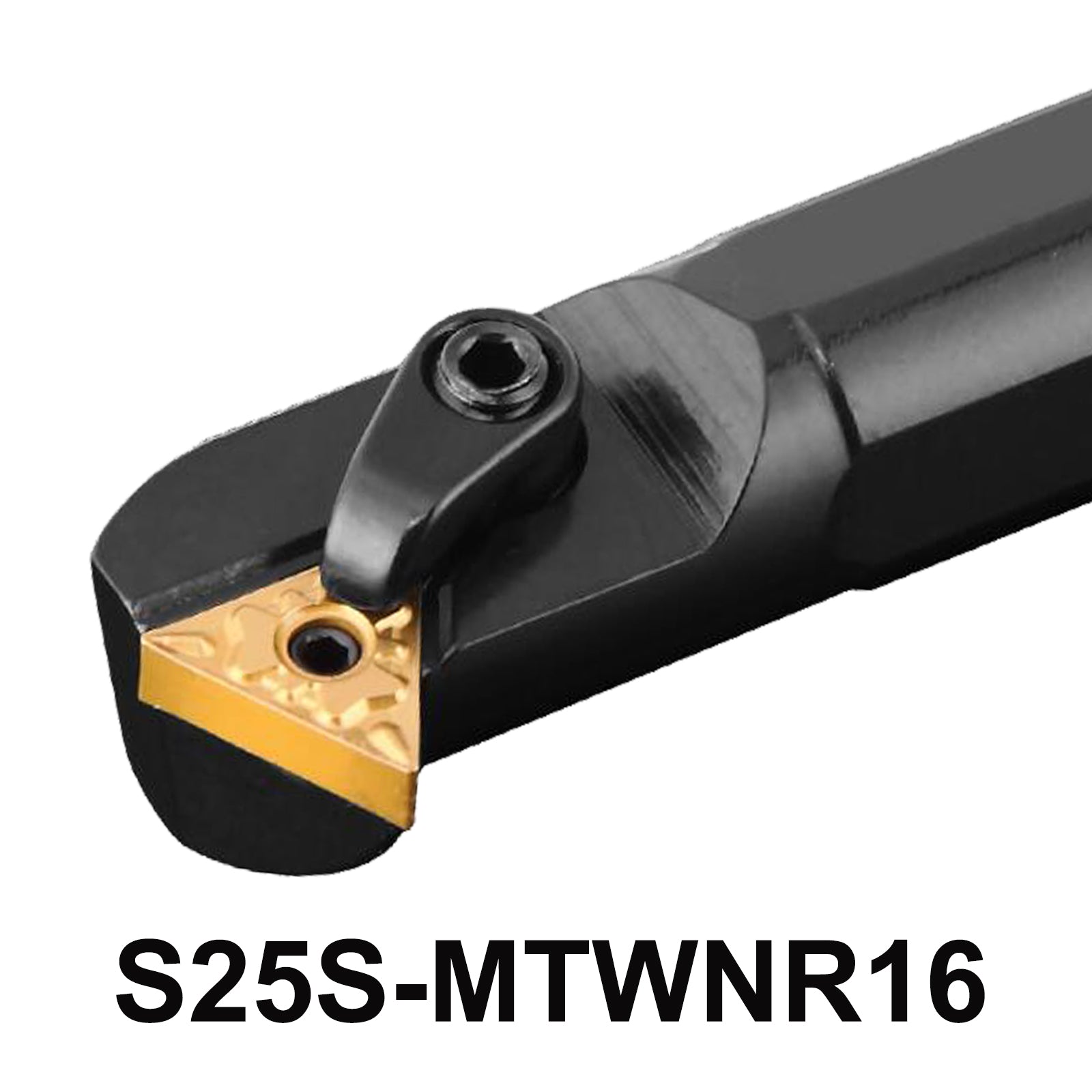

Overview: The S25S-MTWNR16 is an internal boring bar right tool holder designed for precise internal turning operations. It features a 60° cutting edge angle with a 0° relief angle of the blade. Constructed from durable alloy steel and equipped with a multi-lock system (M-type), this tool holder ensures stability and reliability in CNC machine tools and lathes. It accommodates TNMG carbide inserts for various cutting applications.

5-point Description:

1. Precision Machining: Offers a 60° cutting edge angle for accurate internal turning operations.
2. Durable Build: Made from alloy steel with a 0° relief angle, ensuring longevity and reliability.
3. Secure Locking: Equipped with an M-type multi-lock system for enhanced stability.
4. Complete Set: Includes CTM511 Pin, HL1810 Clamp, ML0620 Screw, L2.0, L3.0 Wrenches for convenient setup.
5. Wide Application: Suitable for use in CNC machine tools and lathes, compatible with TNMG carbide inserts for various machining needs.

Specifications and Dimensions:

• Tool Holder Type: Internal Boring Bar Right Tool Holder
• Tool Cutting Edge Angle: 60°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Model: S25S-MDWNR15
• Diameter of Handle: 25mm
• Total Length: 250mm
• Length of Cutting Blade: 16mm
• Included Accessories: CTM511 Pin, HL1810 Clamp, ML0620 Screw, L2.0, L3.0 Wrenches
• Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

Application Scenarios:

Suitable for various CNC machines, CNC lathes, and boring bar sets, ideal for high-precision internal turning operations.

Advantages:

Precision Machining: The tool holder is designed to deliver high precision in internal turning operations.

Versatility: Compatible with a range of TNMG carbide inserts, the tool holder can be used across various materials and applications.

Stability and Rigidity: Equipped with an M-type multi-lock system, the tool holder provides secure clamping of inserts, minimizing vibration and enhancing machining stability.

Optimized Design: With its 60° cutting edge angle and zero relief angle, the tool holder is optimized for efficient chip control and reduced cutting forces.

S25S-MTWNR16 Internal Boring Bar | Precision CNC Turning Tool

• High-Quality Alloy Steel Material


• Multi-Lock System (M-Type)


• Compatible with TNMG Multiple Inserts

• Professional Design for Enhanced Efficiency


• Optimal Choice for Internal Turning Operations
