Overview:

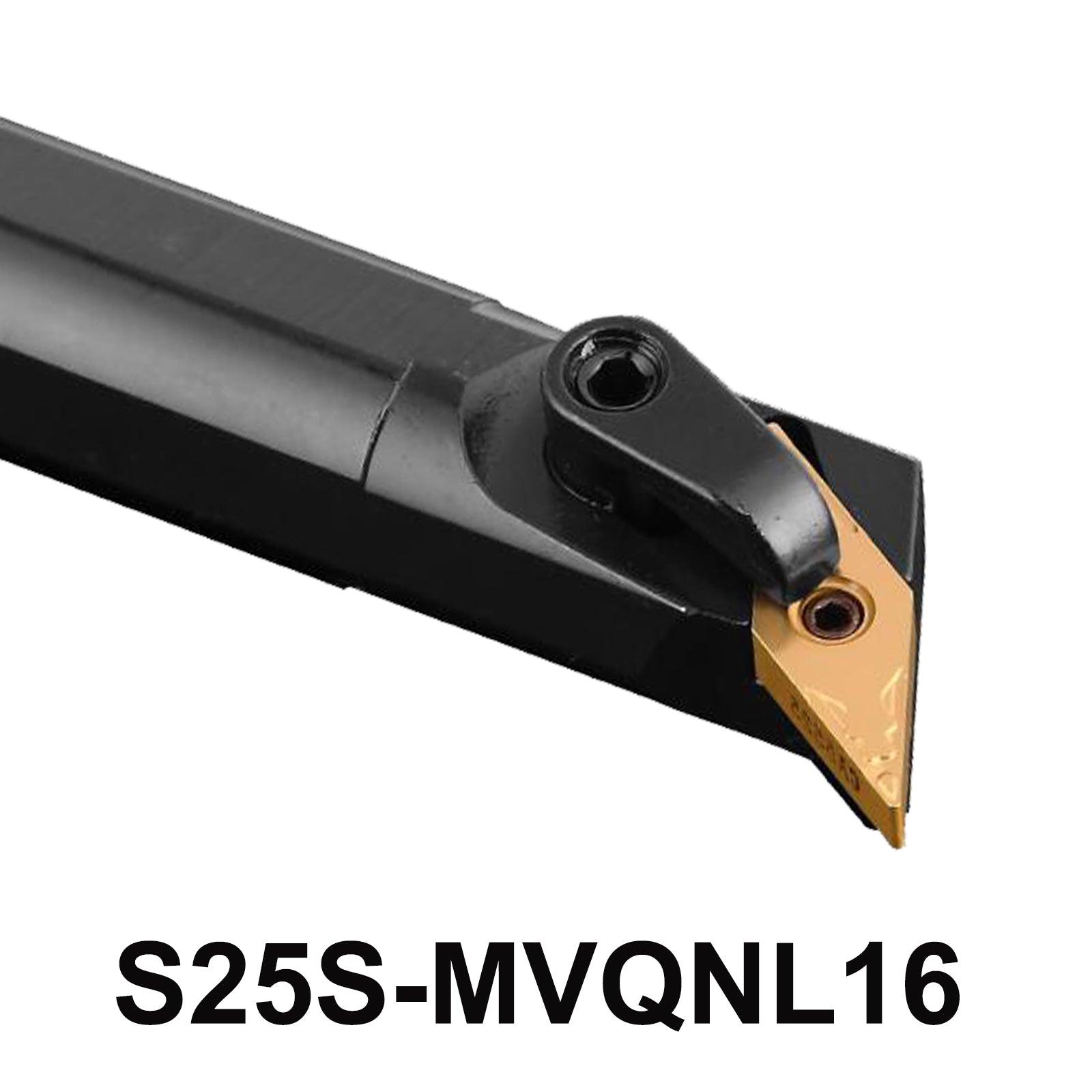

The S25S-MVQNL16 Internal Turning Tool Holder is meticulously engineered for precision machining applications. It features a 117.5° cutting edge angle and a sturdy alloy steel construction, ensuring durability and consistent performance. Equipped with an M-type multi-lock system, this tool holder securely holds a variety of blades including VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333.

Detail Page:

• Tool Holder Type: Internal Turning Tool Holder
• Tool Cutting Edge Angle: 117.5°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Model: S25S-MVQNL16
• Handle Diameter: 25mm
• Total Length: 250mm
• Length of Cutting Blade: 16mm
• Pin: CTM511
• Clamp: HL2114
• Screw: ML0625
• Wrench: L2.0/L3.0
• Blade Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333

Applications

• Precision Turning Operations: Ideal for precise internal turning operations in CNC machine tools and lathes.
• Machining Centers: Well-suited for use in machining centers where internal turning with high accuracy and stability is required.
• Metalworking: Suitable for turning various metals such as steel, stainless steel, aluminum, and alloys due to its robust construction and effective cutting edge angles.
• Engineering Workshops: Used extensively in engineering workshops for manufacturing components with tight tolerances and smooth finishes.

Package Includes:

• S25S-MVQNL16 Tool Holder
• Compatible Clamps, Pins, Screws, and Wrenches

5-point Description:

1. Precision Machining: Engineered with a 117.5° cutting edge angle and a robust alloy steel build, the S25S-MVQNL16 ensures precise and reliable internal turning operations.

2. Durable Construction: Crafted from high-quality alloy steel, providing longevity and reduced tool wear, making it ideal for continuous machining tasks.

3. Multi-Lock System: Features an M-type multi-lock system for secure blade clamping, enhancing stability and accuracy during CNC lathe and machining center applications.

4. Versatile Blade Compatibility: Compatible with a range of blades including VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333, offering flexibility across various materials and machining requirements.

5. Application: Suitable for CNC machine tools, CNC lathes, and machining centers, optimizing machining processes in industrial settings.
