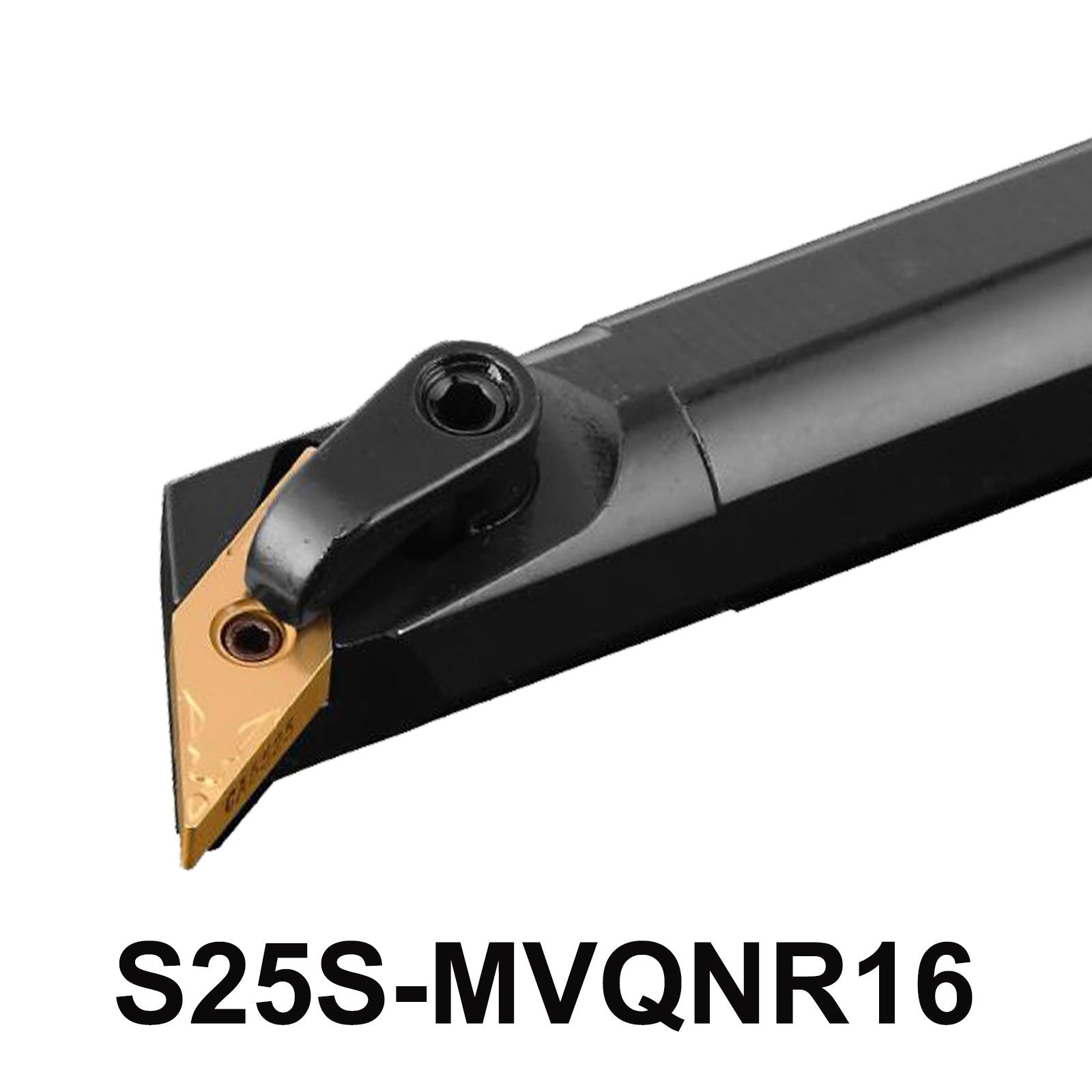

S25S-MVQNR16 CNC Internal Turning Tool Holder | 25mm Diameter | 250mm Length
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S25S-MVQNR16 CNC Internal Turning Tool Holder | boring bar mill
-
Features of S25S-MVQNR16
-
Specifications
-
Compatibility with VNMG Blades
-
Applications
-
Precision Machining with 117.5° Angle
-
Alloy Steel Construction
-
M-Type Multi-Lock System
-
Tool Holder Dimensions
Overview:
The S25S-MVQNR16 Internal Turning Tool Holder is meticulously engineered for precision machining applications. It features a 117.5° cutting edge angle and a sturdy alloy steel construction, ensuring durability and consistent performance. Equipped with an M-type multi-lock system, this tool holder securely holds a variety of blades including VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333.
Detail Page:
- Tool Holder Type: Internal Turning Tool Holder
- Tool Cutting Edge Angle: 117.5°
- Relief Angle of Blade: 0°
- Material: Alloy Steel
- Model: S25S-MVQNR16
- Handle Diameter: 25mm
- Total Length: 250mm
- Length of Cutting Blade: 16mm
- Pin: CTM511
- Clamp: HL2114
- Screw: ML0625
- Wrench: L2.0/L3.0
- Blade Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333
Applications
- Precision Turning Operations: Ideal for precise internal turning operations in CNC machine tools and lathes.
- Machining Centers: Well-suited for use in machining centers where internal turning with high accuracy and stability is required.
- Metalworking: Suitable for turning various metals such as steel, stainless steel, aluminum, and alloys due to its robust construction and effective cutting edge angles.
- Engineering Workshops: Used extensively in engineering workshops for manufacturing components with tight tolerances and smooth finishes.
Package Includes:
- S25S-MVQNR16 Tool Holder
- Compatible Clamps, Pins, Screws, and Wrenches
5-point Description:
-
Precision Machining: Engineered with a 117.5° cutting edge angle and a robust alloy steel build, the S25S-MVQNR16 ensures precise and reliable internal turning operations.
-
Durable Construction: Crafted from high-quality alloy steel, providing longevity and reduced tool wear, making it ideal for continuous machining tasks.
-
Multi-Lock System: Features an M-type multi-lock system for secure blade clamping, enhancing stability and accuracy during CNC lathe and machining center applications.
-
Versatile Blade Compatibility: Compatible with a range of blades including VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, TNMG333, offering flexibility across various materials and machining requirements.
-
Application: Suitable for CNC machine tools, CNC lathes, and machining centers, optimizing machining processes in industrial settings.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
