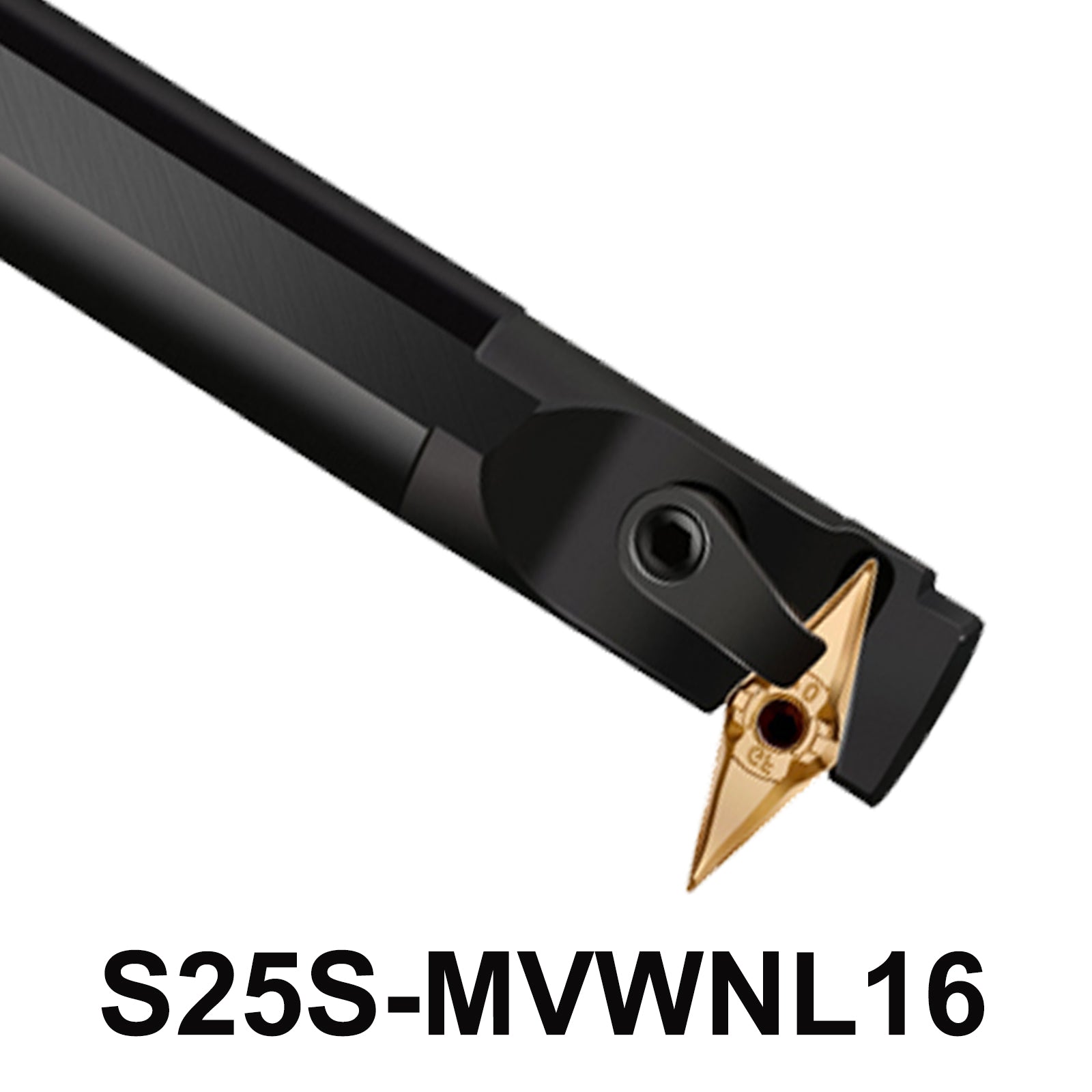

Overview:

The S25S-MVWNL16 is a precision internal boring bar Left tool holder designed for CNC machine tools and lathes. It features a tool cutting edge angle of 72.5° and a 0° relief angle of the blade. Constructed from durable alloy steel, it includes an M-type multi-lock system for secure clamping of inserts.

5-Point Description:

1. Material: Made from high-grade alloy steel for strength and durability.
2. Design: Internal turning tool holder with a 72.5° cutting edge angle.
3. Specifications: Diameter: 25mm, Total Length: 200mm, Cutting Blade Length: 16mm.
4. Compatibility: Compatible with VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333 inserts.
5. Complete Accessories Included:   Pin CTM511, Clamp HL2114, Screw ML0620, and Wrench L2.0 L3.0

Specifications

• Model: S25S-MVWNL16
• Tool Cutting Edge Angle: 72.5°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Diameter of Handle: 25mm
• Total Length: 200mm
• Length of Cutting Blade: 16mm
• Insert Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
• Tool Holder Type: Internal Boring Bar
• Pin: CTM511
• Clamp: HL2114
• Screw: ML0620
• Wrench: L2.0 / L3.0
• Locking System: M-type (multi-lock system)

Application:

The S25S-MVWNL16 Internal Boring Bar Tool Holder is specifically designed for use in CNC machine tools and CNC lathes. Versatile for different cutting tasks such as:Internal Turning,Boring Operations,Facing,Grooving and Parting.

S25S-MVWNL16 Internal Boring Bar Tool Holder - CNC Lathe Tool

• Overview of S25S-MVWNL16 Tool Holder

• Features of S25S-MVWNL16 Internal Turning Tool Holder

• Specifications and Dimensions of S25S-MVWNL16

• Alloy Steel Construction

• 72.5° Cutting Edge Angle

• Compatible with VNMG Inserts


• Suitable for CNC Machining

 Why Choose S25S-MVWNL16:

• Premium Material and Construction
• Optimized Cutting Geometry
• Versatile Insert Compatibility
• Secure and Stable Machining
