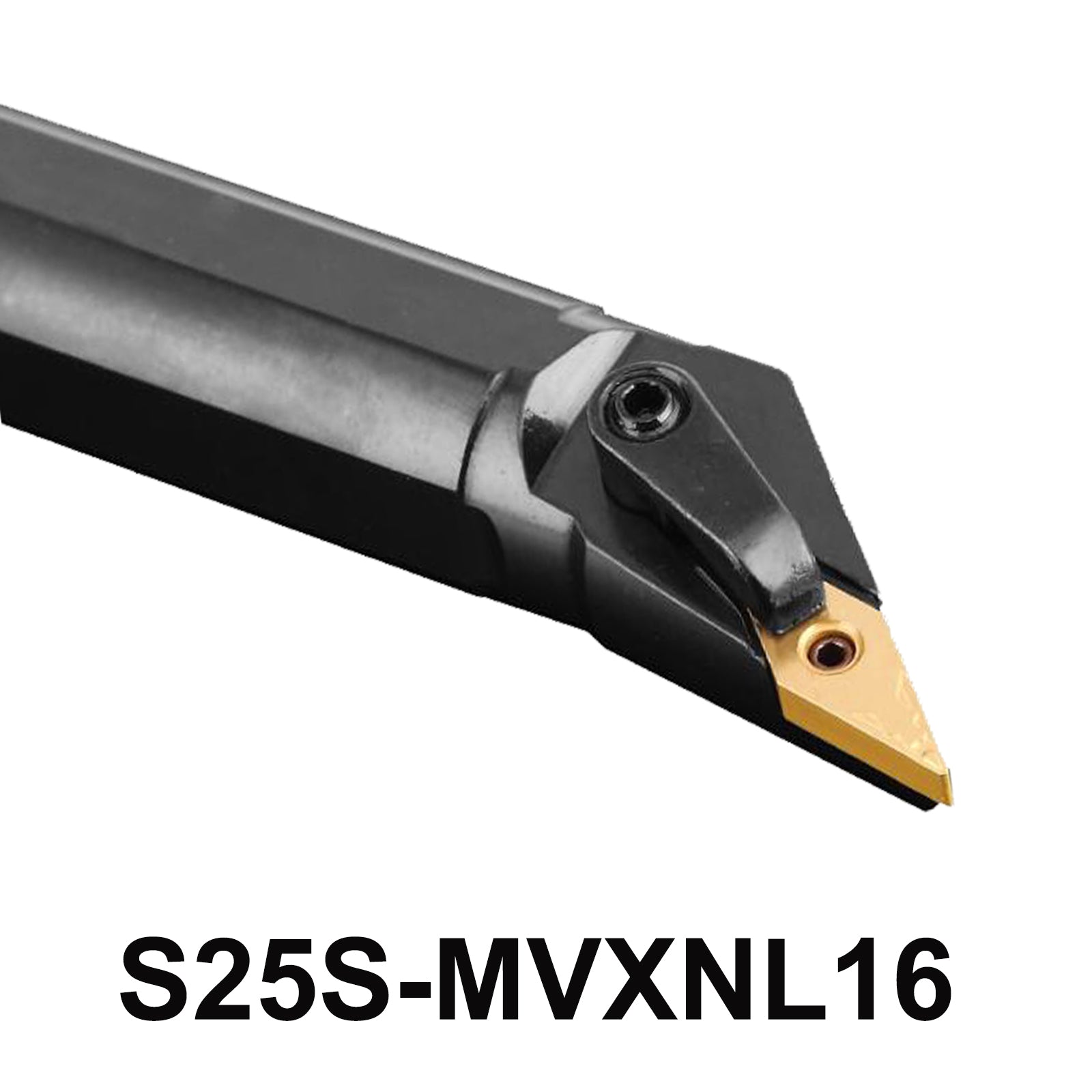

Product Name:S25S-MVXNL16 CNC Boring Bar Tool Holder

Overview:

The S25S-MVXNL16 CNC Boring Bar Tool Holder is engineered for high-precision internal turning operations on CNC machine tools and lathes. It features a 96° tool cutting edge angle and is crafted from durable alloy steel, ensuring reliability and longevity in machining processes. The M-type multi-lock system provides secure clamping of VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333), minimizing vibrations and enhancing cutting stability. This tool holder comes complete with a CTM511 pin, HL2414 clamp, ML0625 screw, and L2.0/L3.0 wrench for comprehensive functionality.

Detail Page:

• Model: S25S-MVXNL16
• Tool Holder Type: CNC Boring Bar
• Tool Cutting Edge Angle: 96°
• Material: Alloy Steel
• Handle Diameter: 25mm
• Total Length: 250mm
• Cutting Blade Length: 16mm
• Multi-Lock System: Yes (M-type)
• Included Inserts: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
• Accessories: CTM511 pin, HL2414 clamp, ML0625 screw, L2.0/L3.0 wrench

Application:

The S25S-MVXNL16 is ideal for precise machining tasks on CNC machine tools and lathes, including:

• Internal Turning: Achieve accurate results in internal surface machining.
• Boring: Enlarge existing holes with precision and efficiency.
• Facing: Create smooth and flat surfaces on workpieces.
• Grooving and Parting: Perform detailed grooving and parting-off operations.

5-Point Description:

1. Precision Machining: Designed for internal turning with a precise 96° tool cutting edge angle.
2. Durable Construction: Made from high-quality alloy steel for reliability and extended tool life.
3. Multi-Lock System: M-type system ensures secure clamping of VNMG carbide inserts, enhancing stability during machining.
4. Versatile Compatibility: Supports VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333) for a wide range of machining applications.
5. Comprehensive Set: Includes CTM511 pin, HL2414 clamp, ML0625 screw, and L2.0/L3.0 wrench for immediate use and maintenance.

S25S-MVXNL16 Right Tool Holder for CNC Machinesr | Internal Boring Bar

Buy S25S-MVXNL16 CNC Boring Bar Holder | Alloy Steel, M-Type

Specifications | Features | Applications | Compatibility | Included Accessories

Key Benefits

• Precision Machining:Made from durable alloy steel, featuring a 96° cutting edge angle and 0° relief angle for precise machining operations.
• Secure Locking System:Includes an M-type multi-lock system (HL2414 clamp) for secure tool positioning during intensive machining tasks.
• Optimal Dimensions:25mm diameter handle and 250mm total length, with a 16mm cutting blade length, ensuring stability and efficiency in machining.
• Versatile Compatibility:Compatible with a range of VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333) for various machining requirements.
• High-Performance Tool:Engineered for use in CNC lathe environments, providing consistent cutting performance and reliability.
