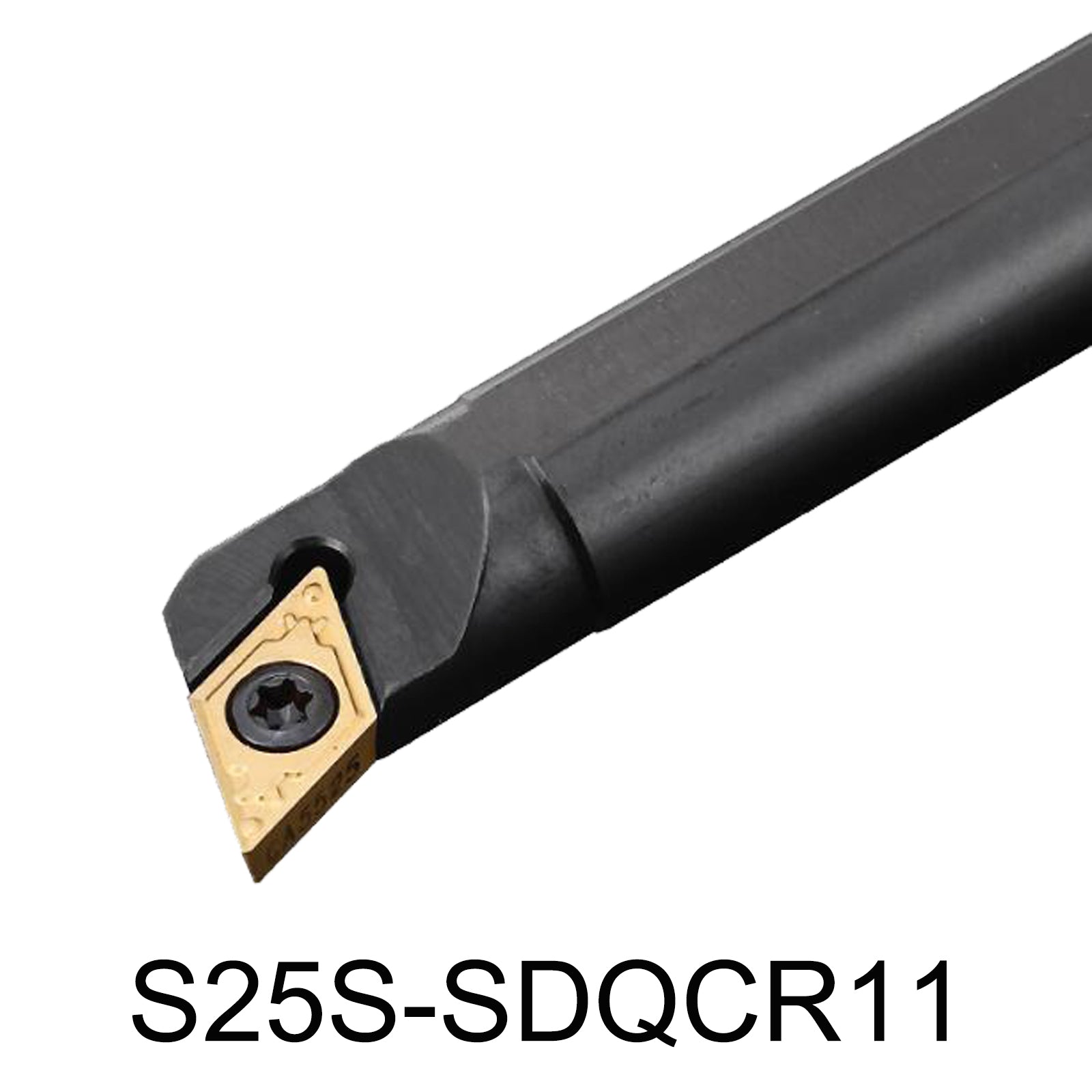

S25S-SDQCR11 Internal cnc boring head Tool Holder | High-Performance Alloy Steel Tool for Precision Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Overview:
Introducing the S25S-SDQCR11 CNC Internal Boring Bar Tool Holder, a precision-engineered component designed to meet the highest standards of machining excellence. With a cutting edge angle of 107.5° and a relief angle of 7°, this tool holder ensures precise internal boring operations. Crafted from high-quality alloy steel, combines durability with superior performance, featuring an ergonomic 25mm handle diameter and a total length of 250mm. The tool holder is compatible with a range of DCMT blades, including DCMT11T302, DCMT11T304, and DCMT11T308, offering versatility and adaptability for various cutting needs.
Key Features
- Cutting Edge Angle: 107.5°
- Relief Angle: 7°
- Material: Alloy Steel
- Handle Diameter: 25mm
- Total Length: 250mm
- Blade Length: 11mm
- Compatible Inserts: DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, DCMT3(2.5)2
- Includes: M4*8 Screws, T15 Wrench
5-Point Description:
- Precision Engineering: With a cutting edge angle of 107.5° and a relief angle of 7°, this tool holder is optimized for accurate internal boring operations.
- Durable Construction: Made from high-quality alloy steel, ensuring longevity and reliable performance in demanding machining environments.
- Ergonomic Design: Features a 25mm diameter handle and 250mm total length for comfortable handling and stability during use.
- Versatile Compatibility: Compatible with various DCMT blades including DCMT11T302, DCMT11T304, and DCMT11T308, offering flexibility for different applications.
- Convenient Features: Includes an M4*8 screw and T15 wrench for easy setup and adjustments, making maintenance straightforward.
Precision Engineering: S25S-SDQCR11 CNC Internal Boring Bar Tool Holder
-
High-Performance Internal Boring Bar Tool Holder
-
Optimized Cutting Edge Angle for Superior Machining
-
Robust Alloy Steel Construction for Durability
-
Reliable Performance with DCMT Blade Compatibility
-
Adjustable Cutting Edge with a 107.5° Angle
-
Includes M4*8 Screw and T15 Wrench for Easy Adjustment
Applications:
- CNC Machine Tools
- CNC Lathes
- Internal Boring Operations
- Precision Machining
Advantages:
- Enhanced Precision: Ensures accurate internal turning with optimized cutting angles.
- Durable Build: High-quality alloy steel construction for extended tool life.
- Ergonomic Handling: Comfortable and stable operation with an ergonomic handle design.
- Versatile Blade Compatibility: Works with a range of DCMT blades for varied machining tasks.
- Ease of Use: Simple setup and maintenance with included screw and wrench.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
