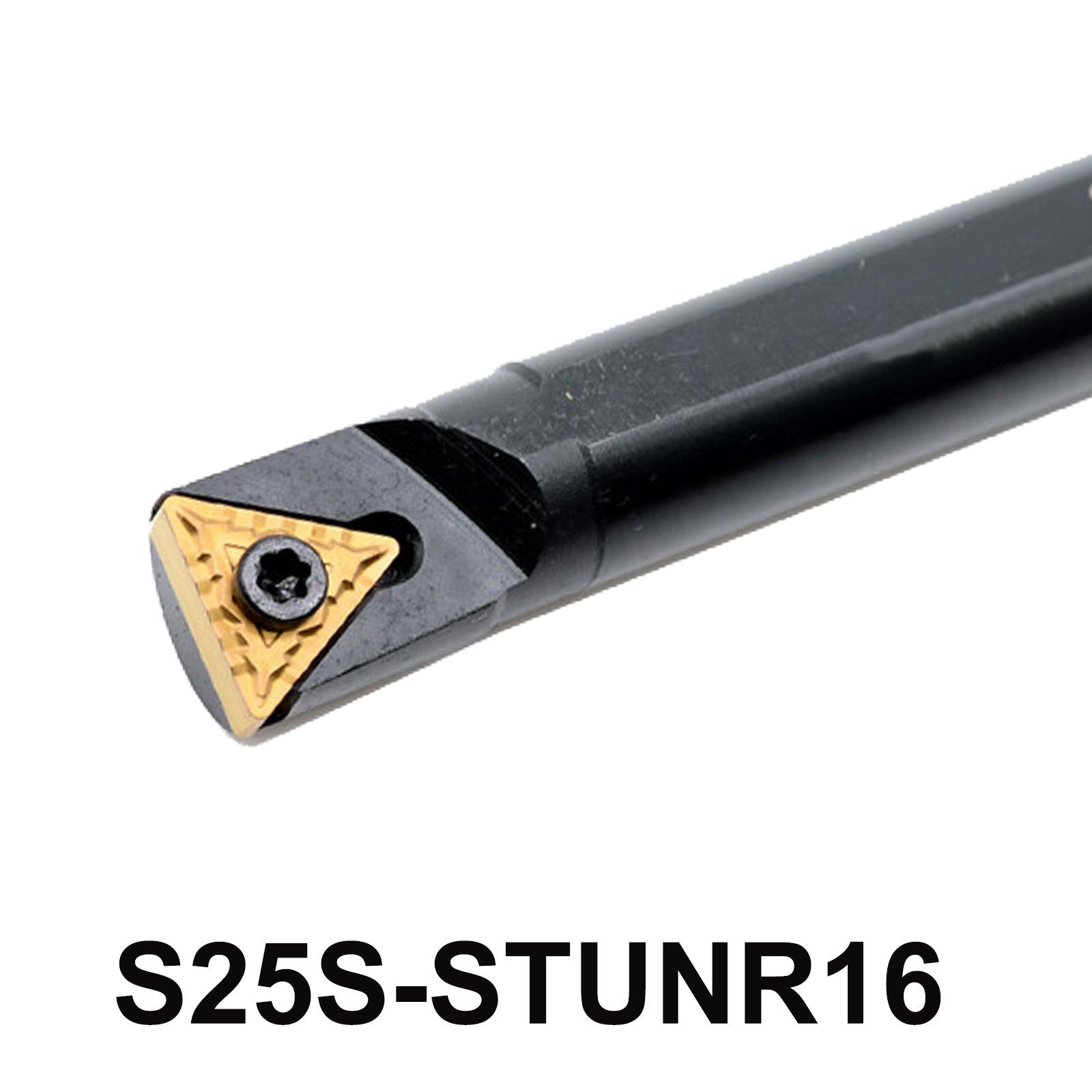

S25S-STUNR16 Internal Turning Tools Holder - Alloy Steel, 25mm Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview:
Detail Page:
- Material: Alloy Steel
- Type: S25S-STUNR16
- Diameter of Handle: 20mm
- Total Length: 200mm
- Length of Cutting Blade: 16mm
- Screw: M3.5*13T
- Wrench: T15
- Compatible Blades (Inserts):TNMG160404, TNMG160408, TNMG160412, TNMG160416 TNMG331, TNMG332, TNMG333
5-Point Description:
-
Precision Machining: Features a 93° cutting edge angle for accurate internal turning operations, delivering high precision and excellent surface finish.
-
Durable Construction: Made from alloy steel for strength and longevity, suitable for continuous use in CNC machining environments.
-
Optimized Design: Designed with a 25mm diameter handle and 250mm total length, providing stability and reliability during machining operations.
-
Versatile Compatibility: Compatible with TNMG carbide inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), offering flexibility for machining various materials.
-
Application: Ideally suited for CNC machine tools, lathes, and machining centers, perfect for internal turning applications requiring precision and efficiency.
Advantages:
-
Precision Machining: Ensures accurate and consistent results in CNC turning operations.
-
Durable Build: Made from robust materials for long-lasting performance and reliability.
-
Versatile Compatibility: Compatible with various inserts, offering flexibility for different machining requirements.
-
Easy Handling: Designed for easy insert changes and secure clamping, minimizing setup time.
-
Wide Application: Suitable for diverse industries and materials, enhancing operational versatility and efficiency.
Application:
This tool holder is primarily used in CNC lathe operations for turning applications. It is suitable for machining a wide range of materials including metals, plastics, and composites. Perfect for industries such as automotive, aerospace, and general manufacturing where precision and reliability are crucial.
Why Choose S25S-STUNR16:
- High-quality construction for durability and longevity.
- Wide compatibility with standard TNMG inserts.
S25S-STUNR16 Internal Turning Tools Holder Online - CNC Lathe Tool Holder
-
Key Features of the S25S-STUNR16 Tool Holder
-
Overview,Specifications and Applications
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
