BEYOND S25S-SVXCR16 Internal Turning Tools Holder S25S SVXCR16 SVXCR 16 BoringTool Holders SVXCR Carbide Inserts VCMT1604 VCMT160404

• S25S-SVXCR16 Information Overview

• Overview

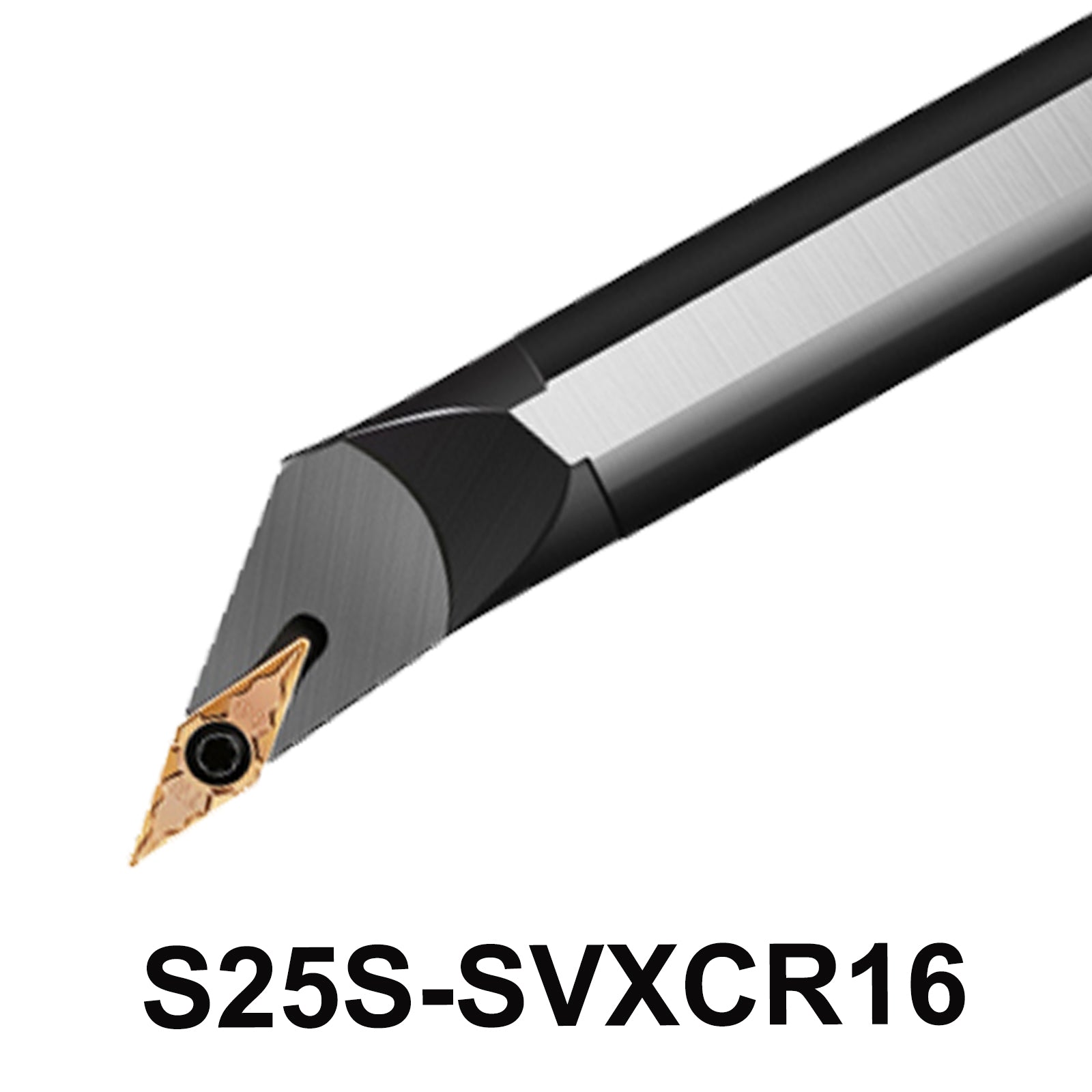

Introducing the S25S-SVXCR16 CNC Internal Boring Bar Tool Holder, engineered for precision and efficiency in machining. Crafted from high-quality alloy steel, this tool holder features a 96° cutting edge angle and a blade relief angle of 7°, ensuring superior performance in CNC applications. Designed for compatibility with a variety of carbide inserts, it is the ultimate choice for professionals seeking reliability and versatility in their machining tasks.

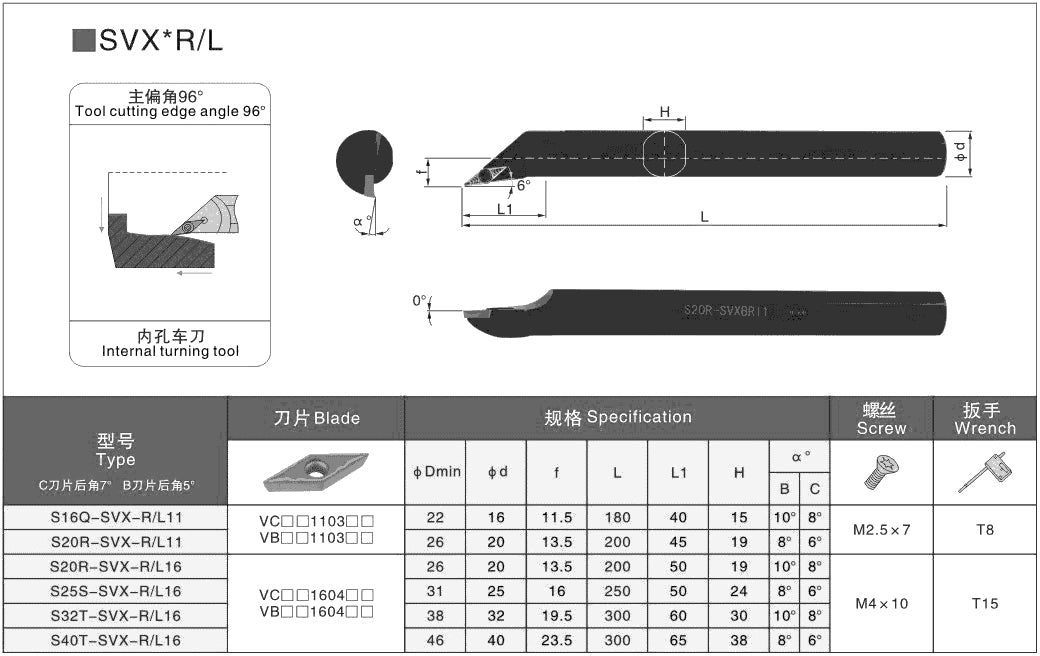

• Dimensions and Specifications of S25S-SVXCR16 Carbide Boring Bars

• Features and Specifications

  • Model: S25S-SVXCR16
  • Package Includes: S25S-SVXCR16 Tool Holder and compatible Screws, and Wrenches
  • 96° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 25mm
  • Total Length: 250mm
  • Cutting Blade Length: 16mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: VCMT160404  VCMT160408 VCMT331 VCMT332

• 5-Point Description

1. High-Performance Design: Features a 96° cutting edge angle for enhanced precision and smooth internal turning.
2. Robust Material: Made from durable alloy steel, ensuring longevity and reliability in demanding machining environments.
3. Versatile Compatibility: Compatible with popular carbide inserts like VCMT160404 and VCMT331, catering to diverse machining needs.
4. Ergonomic Specifications: Handle diameter of 25mm and total length of 250mm for optimal handling and control.
5. Easy Installation: Includes M4*10 screw and T15 wrench for straightforward setup and maintenance.
