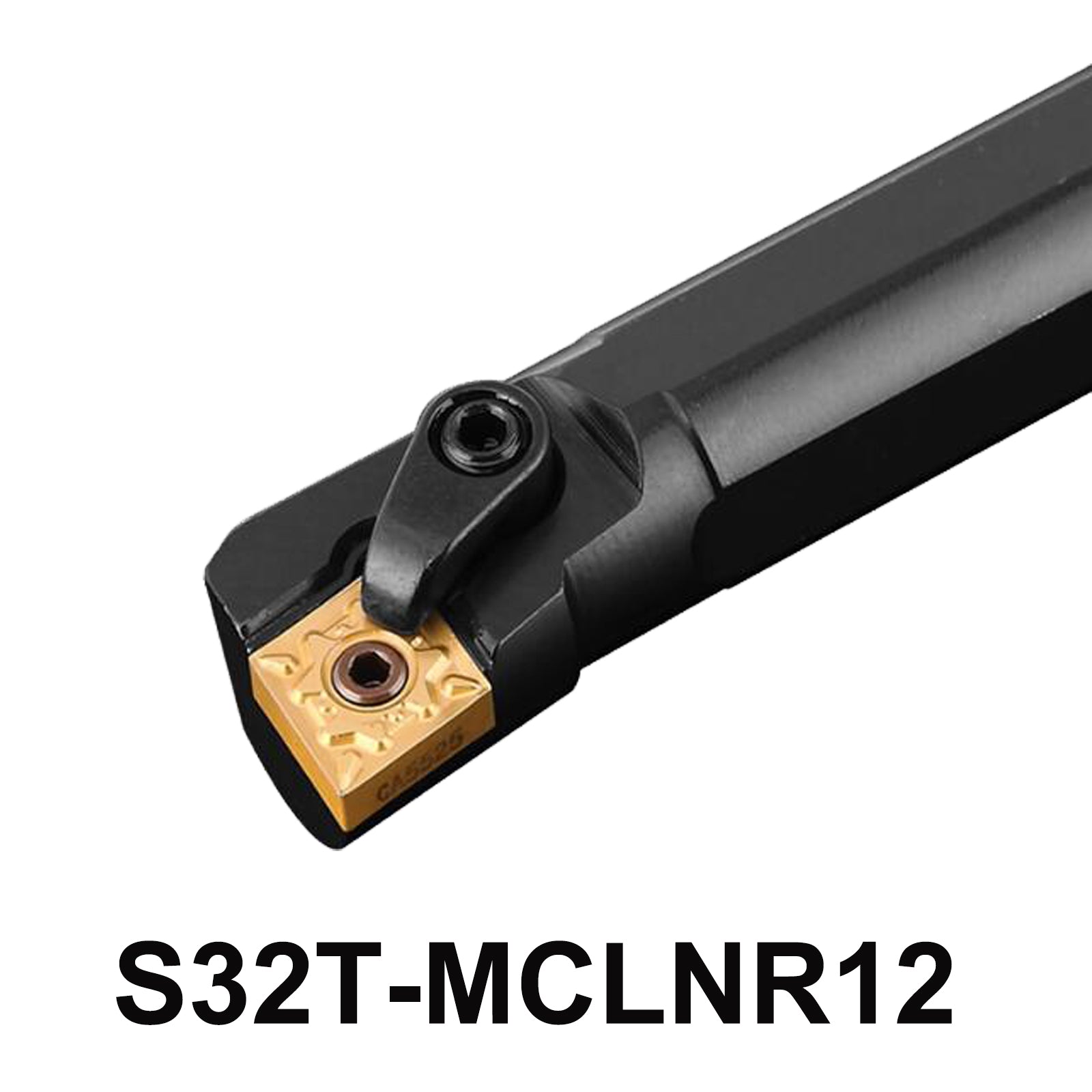

S32T-MCLNR12 machine boring bar Right Tool Holder for CNC Lathes | Alloy Steel Construction
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Name: S32T-MCLNR12 Right Tool Holder
Overview:
The S32T-MCLNR12 machine boring bar Right Tool Holder is designed for precise internal turning operations on CNC lathes and machining centers. Crafted from high-quality alloy steel, The tool holder features a 95° cutting edge angle and a relief angle of 0°, optimized for efficient chip control and extended tool life. It comes complete with essential accessories including MC1204 shim, CTM617 pin, HL1813 clamp, ML0625 screw, and L3.0 wrench, facilitating straightforward installation and maintenance. Compatible with a variety of CNMG inserts
Specifications and Dimensions:
- Tool Holder Type: machine boring bar Right Tool Holder
- Model: S32T-MCLNR12
- Material: Alloy Steel
- Diameter of Handle: 32mm
- Total Length: 300mm
- Length of Cutting Blade: 12mm
- Accessories Included: MC1204 shim, CTM617 pin, HL1813 clamp, ML0625 screw, L3.0 wrench
- Compatible Inserts: CNMG120404, CNMG120408, CNMG120412, CNMG120416, CNMG431, CNMG432, CNMG433, CNMG434
- Applications: CNC Machine Tools, CNC Lathes
S32T-MCLNR12 Machine boring bar Right Tool Holder for CNC Lathes S32T MCLNR12
-
Overview of S32T-MCLNR12 Tool Holder
-
Features of S32T-MCLNR12 Internal Turning Tool Holder
-
Specifications and Dimensions of S32T-MCLNR12 CNC Lathe Tool Holder
-
Installation and Maintenance of S32T-MCLNR12
-
Boring Bar Applications of S32T-MCLNR12 Tool Holder
-
Alloy Steel Construction
-
95° Cutting Edge Angle
-
Compatible with CNMG Inserts
-
Complete Kit Included
-
Suitable for CNC Machining
5-Point Description:
-
Durable Alloy Steel Construction: Provides robustness and longevity in demanding machining environments.
-
Optimized Cutting Edge Angle: 95° cutting edge angle for precise internal turning operations.
-
Wide Insert Compatibility: Accommodates a variety of CNMG inserts, offering flexibility for different machining tasks.
-
Comprehensive Kit: Includes MC1204 shim, CTM617 pin, HL1813 clamp, ML0625 screw, and L3.0 wrench for easy setup and maintenance.
-
Ideal for CNC Machining: Specifically designed for CNC lathes, ensuring high-performance machining results.
Choosing the S32T-MCLNR12 ensures you have a reliable and versatile tool holder that meets the rigorous demands of CNC machining, providing precision, durability, and efficiency in every application.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
