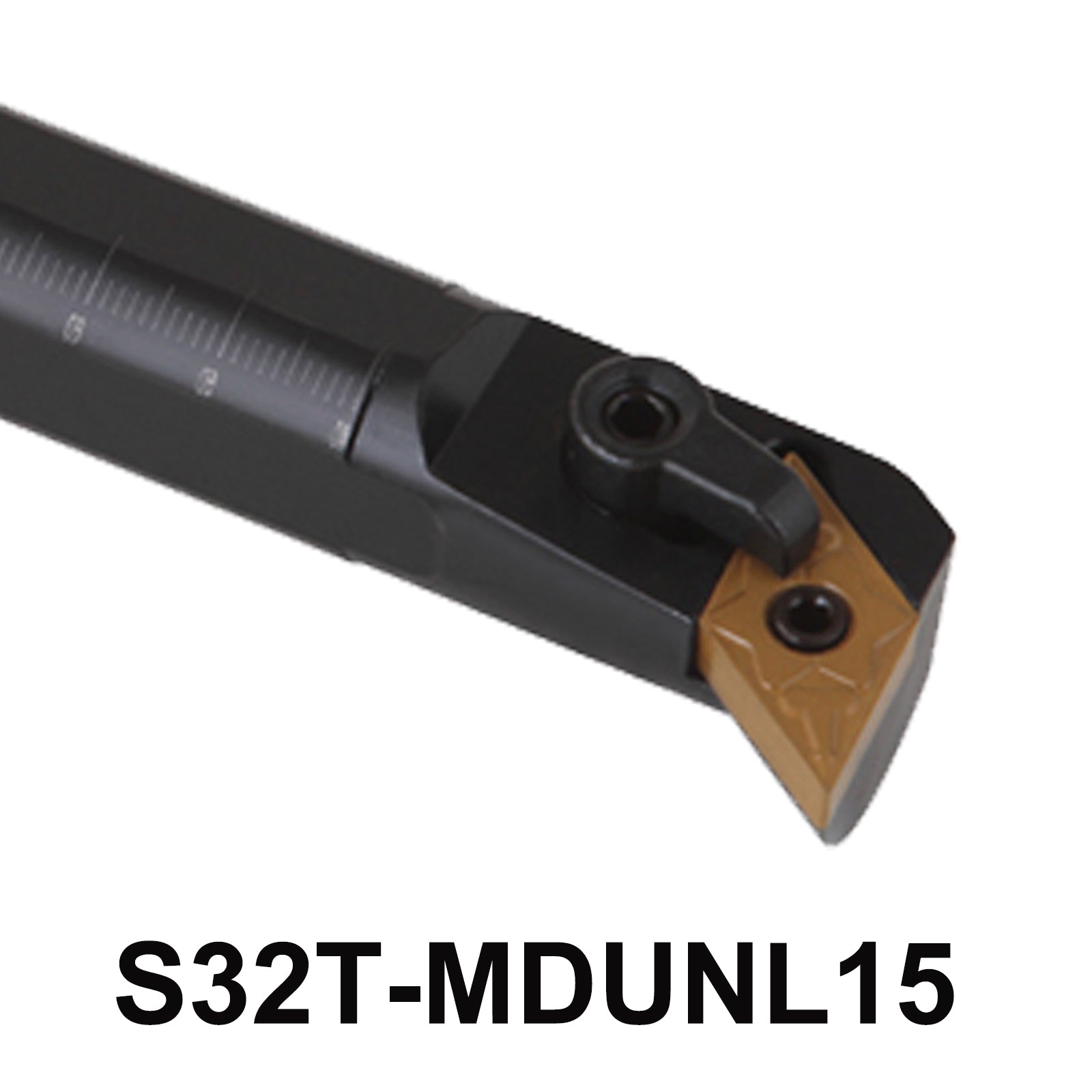

Overview:The S32T-MDUNL15 Internal Boring Bar Tool Holder is an essential tool for precise internal turning and boring operations on CNC lathes and machine tools. Crafted from durable alloy steel and equipped with a multi-lock system, it ensures stability and efficiency in machining tasks.

Features:

• Material: Alloy Steel
• Tool Holder Type: Internal Boring Bar, Right Tool Holder
• Cutting Edge Angle: 95°
• Relief Angle of Blade: 0°
• Diameter of Handle: 32mm
• Total Length: 300mm
• Length of Cutting Blade: 15mm
• Shim:MD1506
• Pin: CTM619
• Clamp: HL2114
• Screw: ML0625
• Wrench: L3.0
• Insert Compatibility:DNMG150404 DNMG150408 DNMG150412 DNMG431 DNMG432 DNMG433

5-Point Description:

1. High Precision Machining: Designed with a 95° cutting edge angle and 0° relief angle on the blade for accurate internal turning and boring.

2. Robust Alloy Steel Build: Made from high-quality alloy steel, offering durability and resistance to wear and tear in demanding machining environments.

3. Versatile Compatibility: Compatible with a range of inserts including DNMG150404, DNMG150408, DNMG150412, DNMG431, DNMG432, and DNMG433, suitable for various materials and applications.

4. Secure Multi-Lock System: Features an M-type multi-lock system with CTM619 pins, HL2114 clamps, ML0625 screws, and an L3.0 wrench for secure tool holding and enhanced machining stability.

5. Optimal Dimensions: 32mm diameter handle, 300mm total length, and a 15mm cutting blade length, designed for ergonomic handling and efficient machining performance.

Application:

• Suitable for CNC machine tools, CNC lathes, and other machining applications requiring internal turning operations.

S32T-MDUNL15 Internal Boring Bar Holder | CNC Lathe Tool criterion boring bars S32T MDUNL15

• CNC Lathe Tool Holder

• Durable and Reliable Multi-Lock System

• Compatible with Standard DNMG Inserts

• 95° Cutting Edge Angle for Precision Machining

• Robust Construction with 32mm Shank

• Specifications and Dimensions of S32T-MDUNL15
