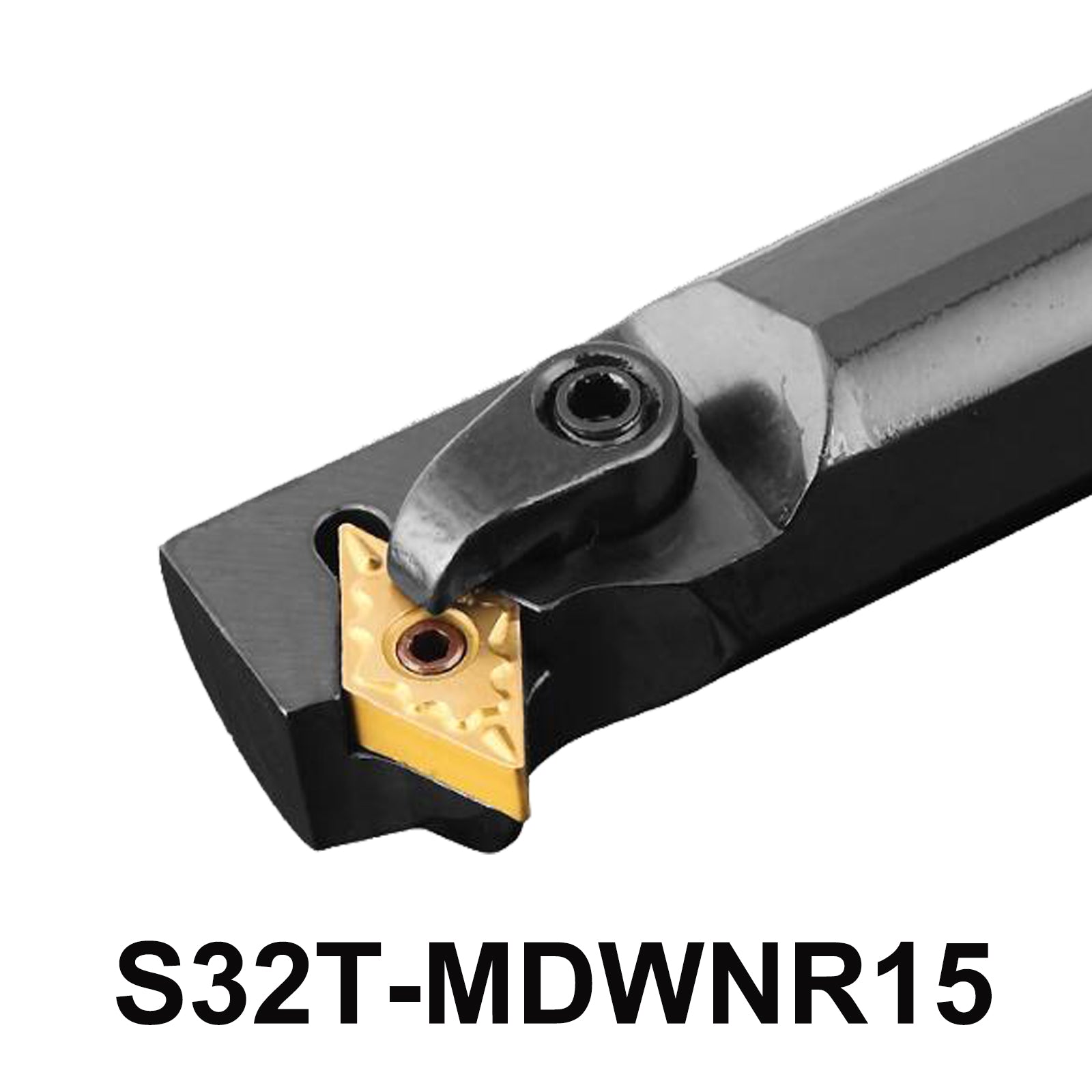

S32T-MDWNR15 Internal boring bar holder lathe for CNC Lathes With DNMG Insert carbide

$49.31 USD
Shipping calculated at checkout.

cnchome-beyond assurance

1.Safe payments Payment methods used by many international shoppers
2.Security & privacy We respect your privacy so your personal details are safe
3.Buyer protection Get your money back if your order isn't delivered by estimated date or if you're not satisfied with your order

4.Free shipping

Add to WishlistCompare

american expressmasterpaypalvisa
Ask a Question
SKU: S32T-MDWNR15
Availability : In Stock Pre order Out of stock
Categories: Internal Turning Tool Holder Boring bar
Tags: S32T-MDWNR15
Description

S32T-MDWNR15 Internal Boring Bar Tool Holder S32T MDWNR15 CNC Lathe Cutter Machine Tool Cutting Carbide Inserts

  • Premium Internal Turning Tool Holder for CNC Machines

  • Detailed Sections


Product Name:S32T-MDWNR15 Internal lathe boring bar holder

Product Overview: The S32T-MDWNR15 Internal Boring Bar Tool Holder is crafted for precision internal turning operations in CNC lathes and machine tools. It features a robust alloy steel construction with a 32mm diameter handle and a total length of 300mm. The cutting blade measures 15mm and supports a variety of inserts including DNMG150404, DNMG150408, DNMG150412, DNMG431, DNMG432, and DNMG433. This tool holder is equipped with an M-type multi-lock system for secure tool positioning, complemented by the MD1504 Shim,CTM617 pin, HL2113 clamp, and ML0625 screw for enhanced stability during machining operations.

Features:

  • Tool Cutting Edge Angle: 62.5°
  • Relief Angle of Blade: 0°
  • Material: Alloy Steel
  • M-Type (Multi-Lock System) Model
  • Diameter handle:32mm
  • Total Length: 300mm
  • Length of Cutting Blade: 15mm
  • Shim:MD1504
  • Pin: CTM617
  • Clamp: HL2113
  • Screw: ML0625
  • Wrench:L3.0
  • Insert Compatibility:DNMG150404 DNMG150408 DNMG150412 DNMG431 DNMG432 DNMG433



Applications: Ideal for a wide range of internal turning tasks in industrial settings, ensuring high precision and durability. The tool holder accommodates various carbide inserts to meet specific machining requirements, making it essential for professional machining operations.

Usage Recommendations: Before use, ensure proper installation and alignment of the tool holder with compatible inserts. Regular maintenance and inspection are recommended to maximize tool life and performance efficiency.

5-point description:

  1. Precision Tool Holder: Designed for internal turning operations with CNC precision, ensuring high accuracy and reliability in machining tasks.

  2. Robust Construction: Made from durable alloy steel, featuring a 32mm diameter handle and a total length of 300mm for stable and efficient machining.

  3. Versatile Compatibility: Supports a variety of carbide inserts including DNMG150404, DNMG150408, DNMG150412, DNMG431, DNMG432, and DNMG433, offering flexibility in machining applications.

  4. Secure Fixation: Equipped with an M-type multi-lock system, complemented by MD1504 Shim,CTM617 pin, HL2113 clamp, and ML0625 screw, ensuring secure tool positioning and stability during operations.

  5. Ideal for CNC Machines: Suitable for use in CNC lathes and machine tools, providing optimal performance in industrial settings where precision and durability are essential.
