Product Name:S32T-MDZNR15 Internal lathe boring bar holder

Product Overview:The S32T-MDZNR15 Internal Boring Bar is a precision tool holder designed for internal turning operations on CNC machine tools and lathes. Featuring a 93° cutting edge angle and a robust alloy steel construction with an M-type multi-lock system, it ensures stability and accuracy during machining. Ideal for a variety of materials, this tool holder accommodates DNMG inserts for versatile machining capabilities.

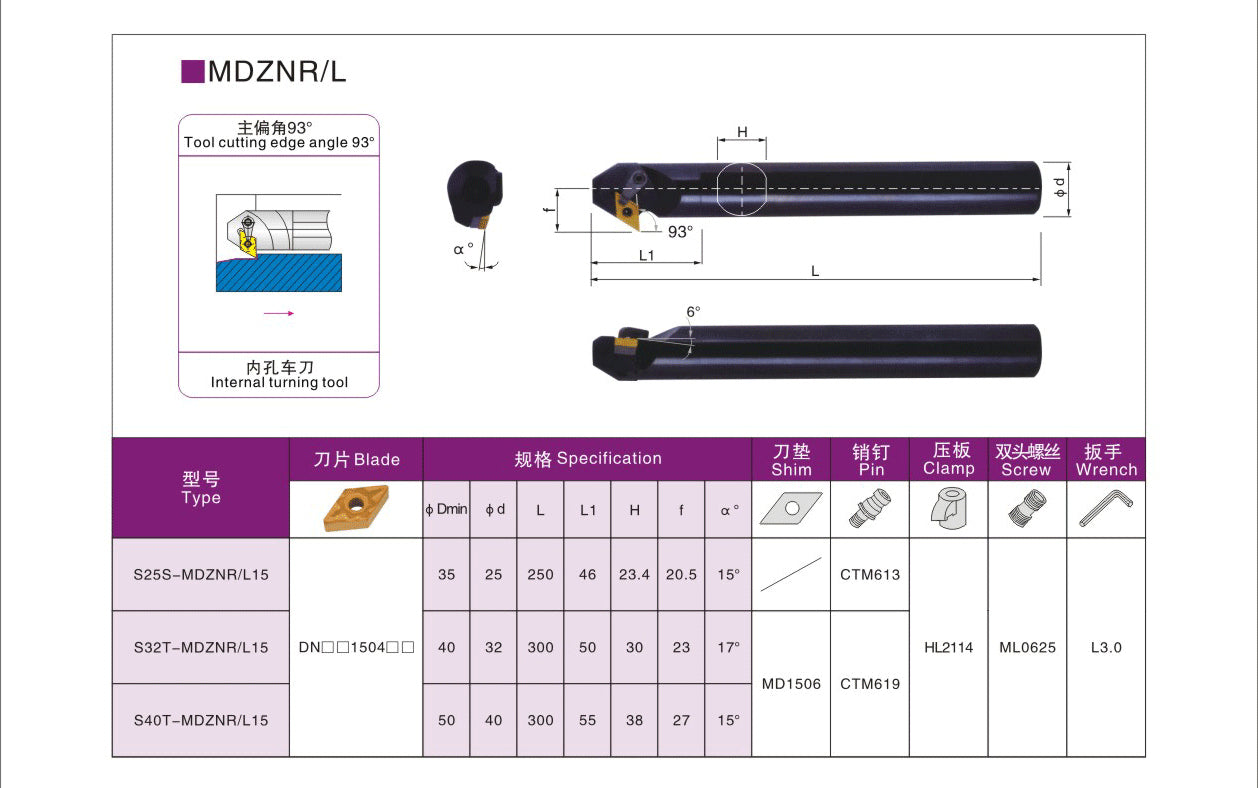

Features:

• Tool Cutting Edge Angle: 93°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• M-Type (Multi-Lock System) Model

• Diameter handle:32mm
• Total Length: 300mm
• Length of Cutting Blade: 15mm
• Shim:MD1506
• Pin: CTM613
• Clamp: HL2114
• Screw: ML0625
• Wrench:L3.0
• Insert Compatibility:DNMG150404 DNMG150408 DNMG150412 DNMG431 DNMG432 DNMG433

5-Point Description:

1. Precision Machining: Designed for internal turning with a precise 93° cutting edge angle and 0° relief angle for optimal performance.
2. Durable Construction: Made from high-quality alloy steel, providing durability and reliability in machining applications.
3. Secure Clamping: Features an M-type multi-lock system for secure tool clamping, reducing vibration and enhancing machining accuracy.
4. Versatile Compatibility: Compatible with DNMG inserts (DNMG150404, DNMG150408, DNMG150412, DNMG431, DNMG432, DNMG433) for versatile machining capabilities across different materials.
5. Complete Tool Set: Includes Shim:MD1506,CTM613 pin, HL2114 clamp, ML0625 screw, and L3.0 wrench for convenient setup and maintenance in CNC machining environments.

Applications:

• Precision Machining: Ideal for internal turning operations requiring high precision and accuracy, such as bore machining and facing on CNC lathes.
• CNC Machine Tools: Designed to be compatible with CNC machine tools, ensuring compatibility and integration into automated machining processes.

Usage Recommendations: Ensure proper installation and alignment of the tool holder with compatible inserts. Regular maintenance and inspection are recommended to optimize performance and extend tool life.
