S32T-MSKNR12 Right boring bar Tool Holder for sale CNC machine tools, internal turning tools holder, CNC lathe cutter,SNMG carbide inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S32T-MSKNR12 Internal Boring Bar Tool Holder for CNC Lathe Cutter Machine S32T MSKNR12 boring bar for sale
-
Buy Internal Boring Bar Tool Holder S32T-MSKNR12 Online
-
Compatible with Standard SNMG Inserts
-

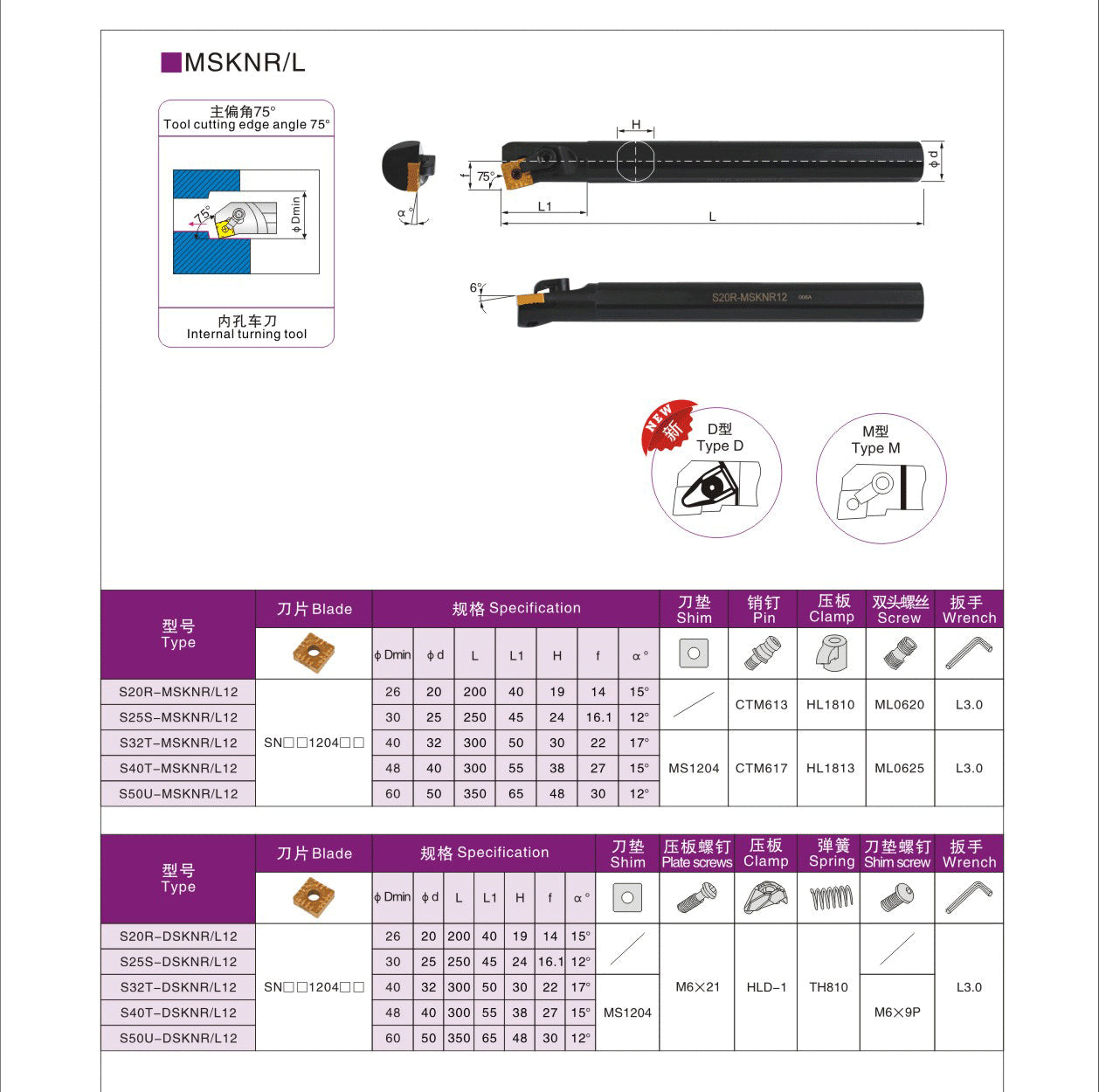

Specifications and Features of S32T-MSKNR12 Internal Boring Bar Tool Holder
-
75° tool cutting edge angle ensures precision CNC machining
-
Main specifications include 32mm Diameter of handle and Total length: 300mm
-
SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434

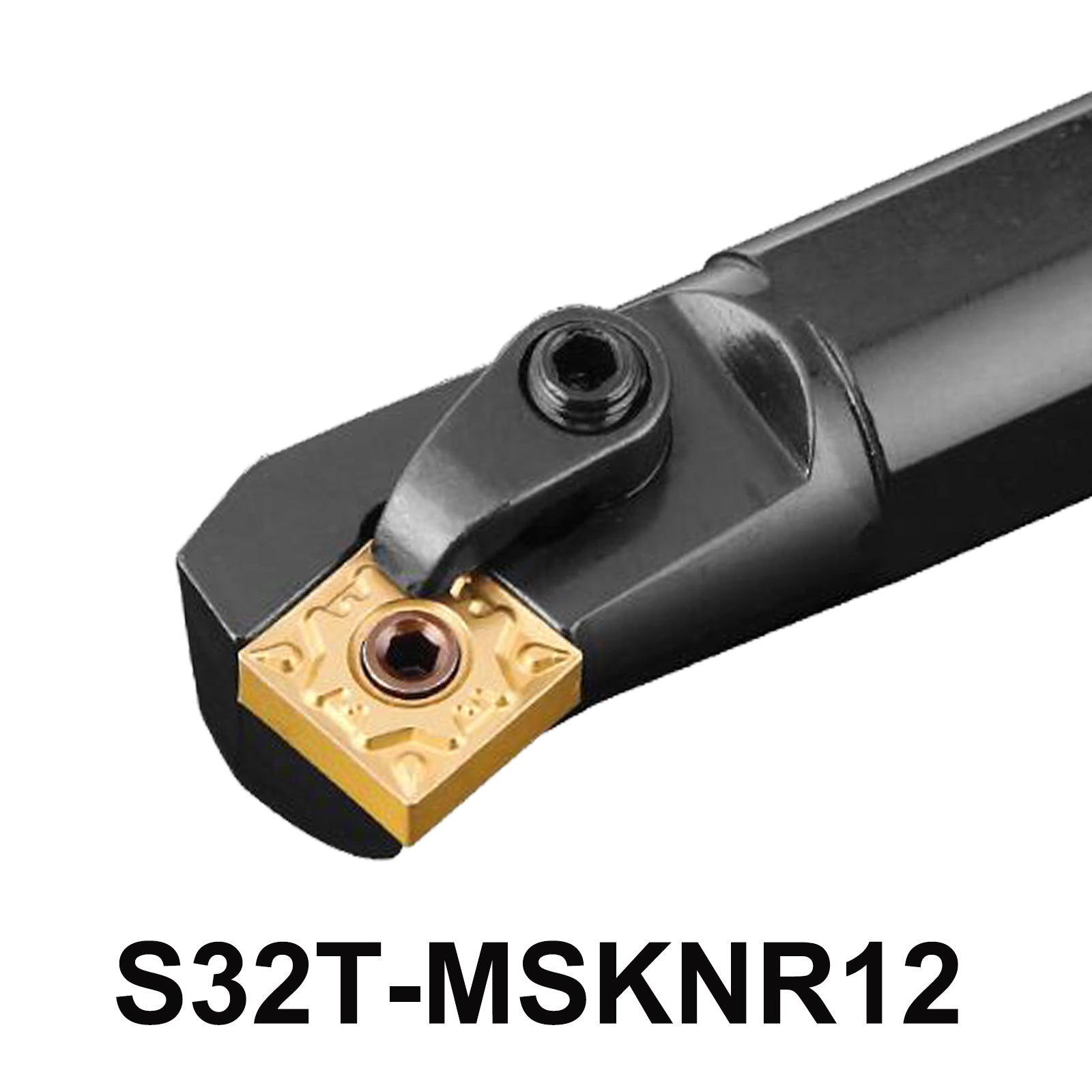

Product Name: S32T-MSKNR12 Right boring bar Tool Holder
Overview:The S32T-MSKNR12 is an advanced internal boring bar tool holder designed for precision machining in CNC machine tools and lathes. It features a tool cutting edge angle of 75° and a 0° relief angle, constructed from high-quality alloy steel with an M-type multi-lock system for secure tool retention.
Main Features:
-
Tool Cutting Edge Angle: 75°
- Relief Angle of Blade: 0°
- Diameter of handle: 32mm
- Total length: 300mm
- Length of cutting blade: 12mm
- Shim:MD1204
- Pin:CTM617
- Clamp:HL1813
- Screws:ML0625
- Wrench:L3.0
-
Compatibility blade: SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434
Application:
- Suitable for CNC machine tools and CNC lathes, ideal for internal turning operations.
Advantages:
- Robust alloy steel construction with a multi-lock system for enhanced stability.
- Designed for precision internal turning with a variety of carbide insert options.
- Comprehensive set of accessories included for immediate use.
5-Point Description:
-
Material: Constructed from durable alloy steel for long-lasting performance.
-
Tool Holder Type: Internal turning tool holder with a 75° cutting edge angle and 0° relief angle, ensuring precise machining.
-
Dimensions: Features a 32mm diameter handle with a total length of 300mm. The cutting blade extends up to 12mm, providing versatility in machining operations.
-
Accessories: Includes MD1204 shim, CTM617 pin, HL1813 clamp, ML0625 screw, and L3.0 wrench for comprehensive tool setup.
-
Insert Compatibility: Compatible with a range of carbide inserts: SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, and SNMG434, suitable for various machining tasks.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
