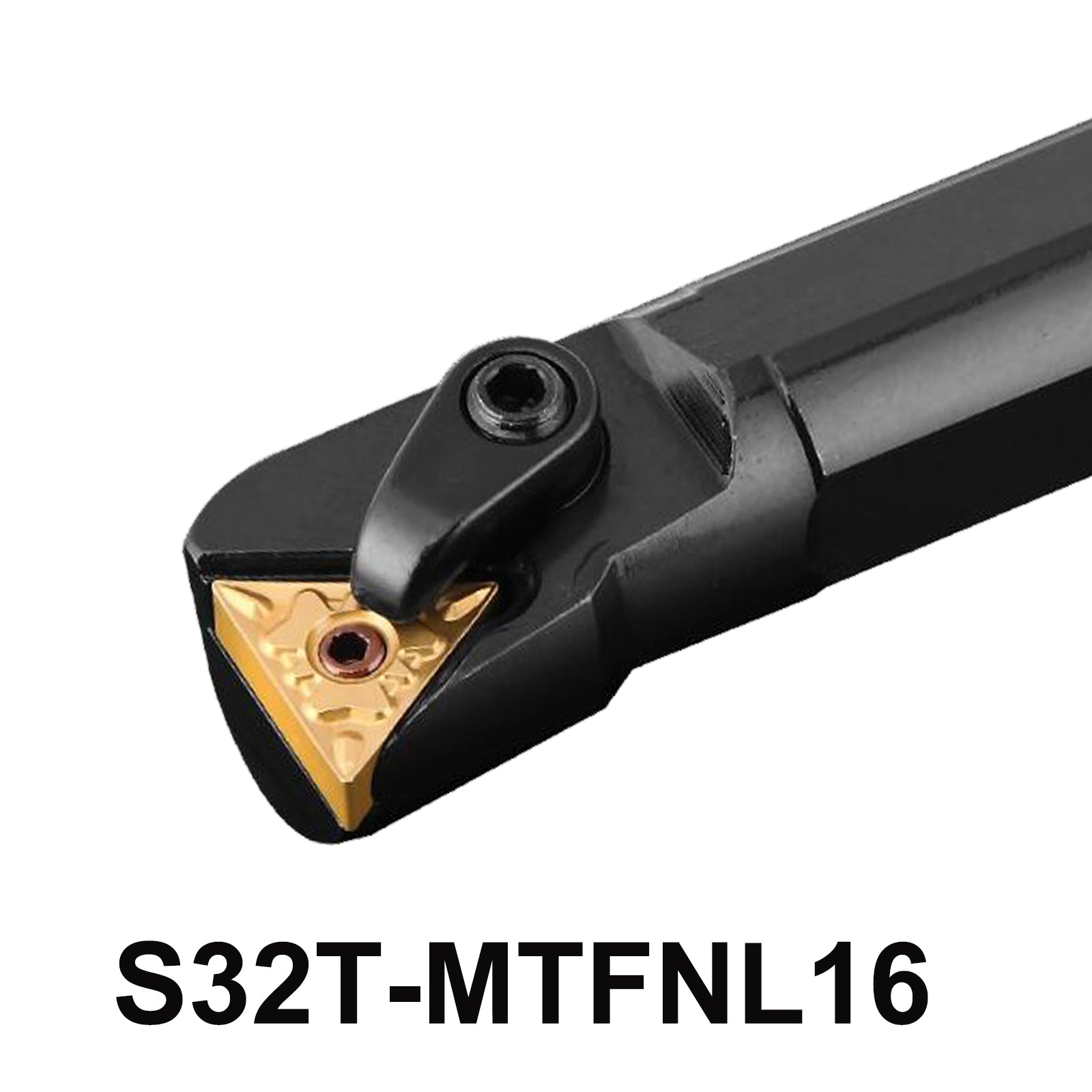

S32T-MTFNL16 CNC Lathe Internal Turning Tool Holder For TNMG Insert | 32mm Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S32T-MTFNL16 CNC Boring Bar Tool Holder - Alloy Steel, 32mm Diameter
-
Precision CNC Boring Bar Tool Holder
-
Internal Turning Tools Holder
-
Alloy Steel Construction
-
Multi-Lock (M-Type) System
-
Compatible with TNMG Inserts
-
CNC Lathe Tool Holder
-
Machine Tool Cutting
-
Carbide Inserts Holder
-
CNC Machining Accessories
Product Name:S32T-MTFNL16 Internal lathe boring bar holder
Overview:Enhance your CNC machining capabilities with the S32T-MTFNL16 CNC Boring Bar Tool Holder. Designed for precision and durability, this tool holder is ideal for internal turning applications on CNC lathes and machine tools. Crafted from high-quality alloy steel and featuring a secure multi-lock (M-type) system, it ensures stable performance and excellent cutting results.
Specifications:
- Model: S32T-MTFNL16
- Type: Right-hand tool holder for internal turning tools
- Material: Alloy steel
- Cutting Edge Angle: 91°
- Relief Angle: 0°
- Shim: MT1603
- Pin: CTM513
- Clamp: HL1813
- Screw: ML0625
- Wrench: L2.0, L3.0
- Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333
Dimensions:
- Handle Diameter: 32mm
- Total Length: 300mm
- Cutting Blade Length: 16mm
5-Point Description:
-
Material and Construction: Made from high-quality alloy steel, the S32T-MTFNL16 CNC Boring Bar Tool Holder is built for durability and precision in CNC machining applications.
-
Design Features: It features a 91° cutting edge angle and 0° relief angle, optimized for internal turning operations on CNC lathes, ensuring consistent performance and tool longevity.
-
Dimensions: With a 32mm handle diameter and a total length of 300mm, including a cutting blade length of 16mm, it offers stability and flexibility for a variety of machining tasks.
-
Clamping System: Equipped with a secure multi-lock (M-type) clamping system, including HL1813 clamps and ML0625 screws, it allows for easy and reliable tool changes, enhancing operational efficiency.
-
Compatibility: Compatible with TNMG inserts such as TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333, the S32T-MTFNR16 supports a wide range of cutting applications, from roughing to finishing, in industrial settings.
Application: The S32T-MTFNL16 CNC Boring Bar Tool Holder is specifically designed for CNC machining applications, particularly on CNC lathes. It is ideal for precision internal turning operations where stability and accuracy are critical.
Advantages:
-
Precision Machining: Crafted from high-quality alloy steel, the S32T-MTFNL16 ensures precise machining results, making it suitable for intricate internal turning tasks.
-
Durability: The tool holder's robust construction and multi-lock (M-type) clamping system provide exceptional durability and stability during machining operations.
-
Versatility: Compatible with a variety of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), it supports a wide range of cutting applications and materials, enhancing versatility in CNC machining.
-
Ease of Use: Featuring an ergonomic design and user-friendly components such as HL1813 clamps and ML0625 screws, it facilitates quick and efficient tool changes and adjustments.
-
Application Flexibility: Suitable for both roughing and finishing operations, the S32T-MTFNR16 adapts well to diverse machining needs in industrial settings.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
