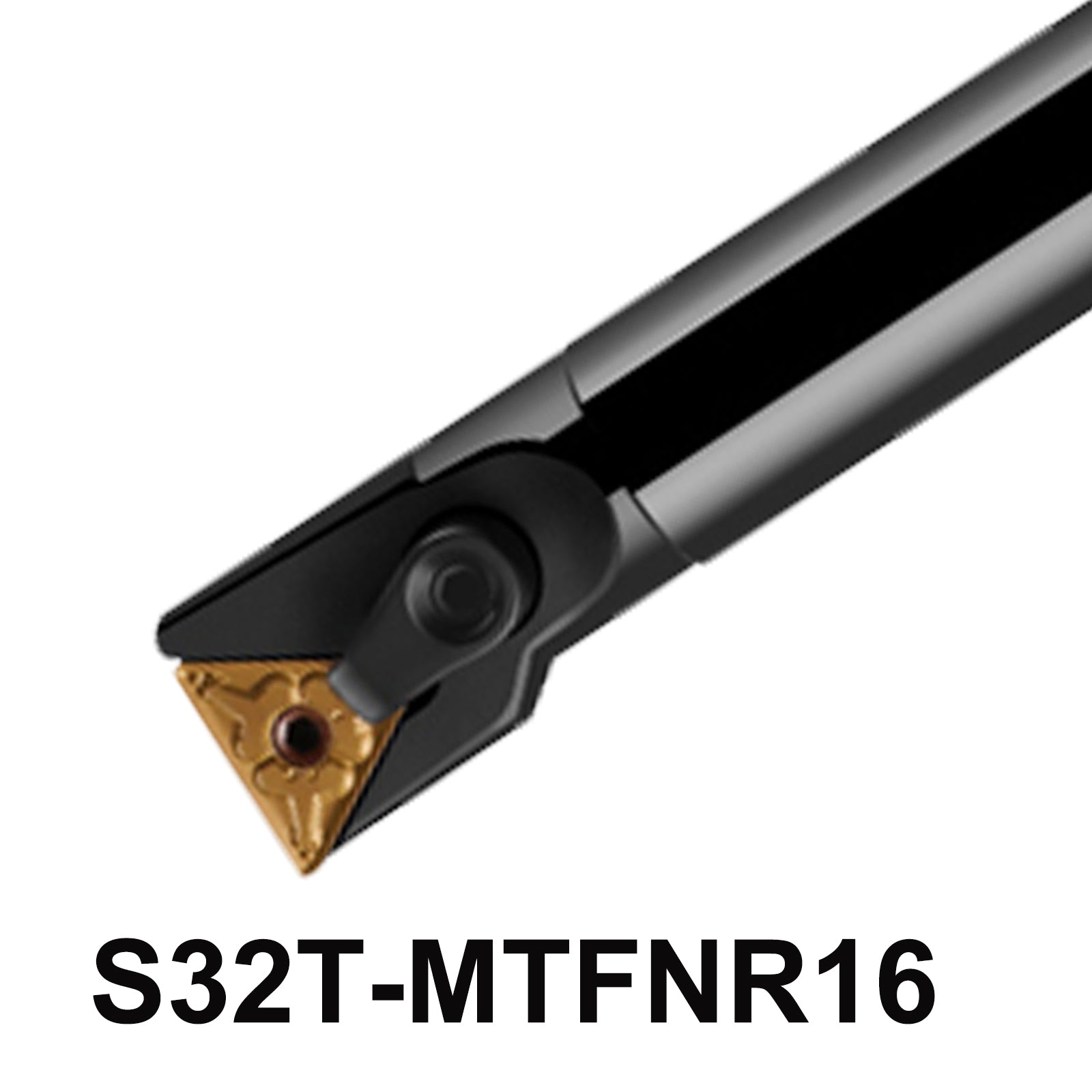

S32T-MTFNR16 CNC Boring Bar Tool Holder - Alloy Steel, 32mm Diameter

• Precision CNC Boring Bar Tool Holder

• Internal Turning Tools Holder

• Alloy Steel Construction

• Multi-Lock (M-Type) System

• Compatible with TNMG Inserts

• CNC Lathe Tool Holder

• Machine Tool Cutting

• Carbide Inserts Holder

• CNC Machining Accessories

Product Name:S32T-MTFNR16 Internal lathe boring bar holder

Overview:Enhance your CNC machining capabilities with the S32T-MTFNR16 CNC Boring Bar Tool Holder. Designed for precision and durability, this tool holder is ideal for internal turning applications on CNC lathes and machine tools. Crafted from high-quality alloy steel and featuring a secure multi-lock (M-type) system, it ensures stable performance and excellent cutting results.

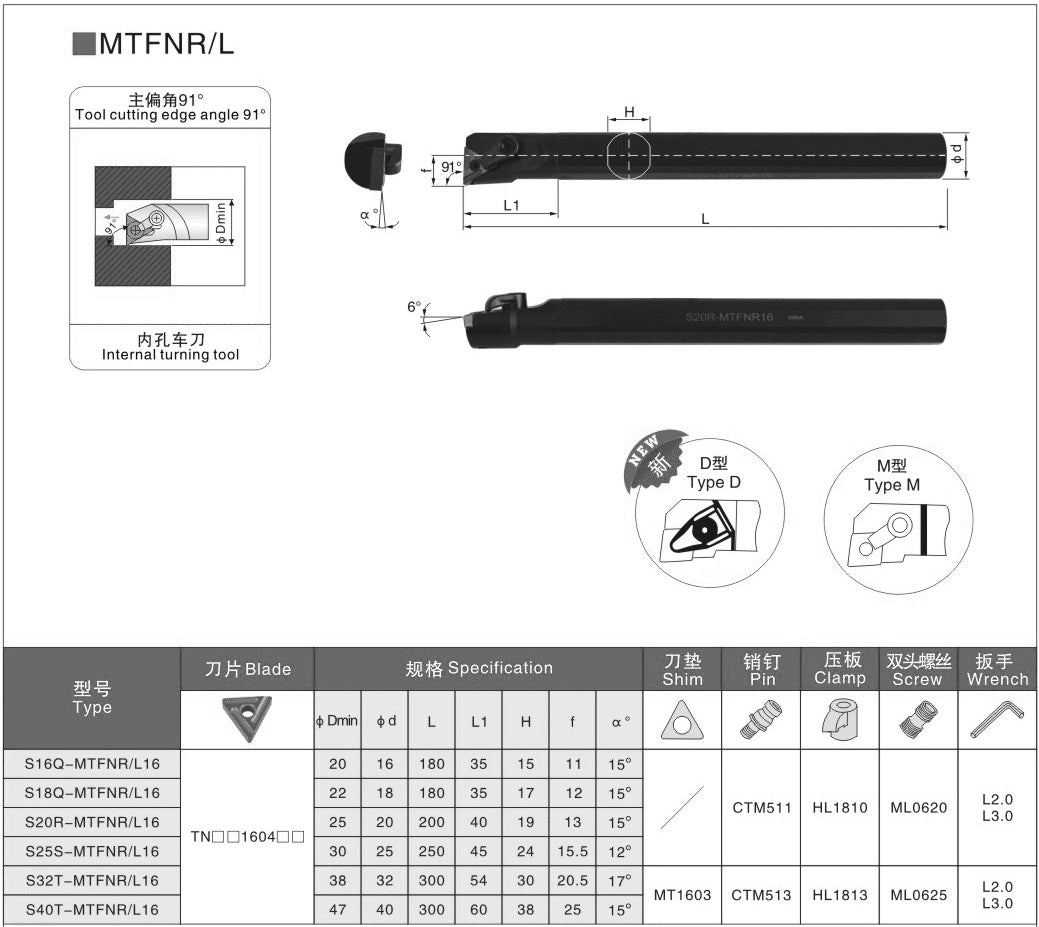

Specifications:

• Model: S32T-MTFNR16
• Type: Right-hand tool holder for internal turning tools
• Material: Alloy steel
• Cutting Edge Angle: 91°
• Relief Angle: 0°
• Shim: MT1603
• Pin: CTM513
• Clamp: HL1813
• Screw: ML0625
• Wrench: L2.0, L3.0
• Compatible Inserts: TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

Dimensions:

• Handle Diameter: 32mm
• Total Length: 300mm
• Cutting Blade Length: 16mm

5-Point Description:

1. Material and Construction: Made from high-quality alloy steel, the S32T-MTFNR16 CNC Boring Bar Tool Holder is built for durability and precision in CNC machining applications.

2. Design Features: It features a 91° cutting edge angle and 0° relief angle, optimized for internal turning operations on CNC lathes, ensuring consistent performance and tool longevity.

3. Dimensions: With a 32mm handle diameter and a total length of 300mm, including a cutting blade length of 16mm, it offers stability and flexibility for a variety of machining tasks.

4. Clamping System: Equipped with a secure multi-lock (M-type) clamping system, including HL1813 clamps and ML0625 screws, it allows for easy and reliable tool changes, enhancing operational efficiency.

5. Compatibility: Compatible with TNMG inserts such as TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333, the S32T-MTFNR16 supports a wide range of cutting applications, from roughing to finishing, in industrial settings.

Application: The S32T-MTFNR16 CNC Boring Bar Tool Holder is specifically designed for CNC machining applications, particularly on CNC lathes. It is ideal for precision internal turning operations where stability and accuracy are critical.

Advantages:

1. Precision Machining: Crafted from high-quality alloy steel, the S32T-MTFNR16 ensures precise machining results, making it suitable for intricate internal turning tasks.

2. Durability: The tool holder's robust construction and multi-lock (M-type) clamping system provide exceptional durability and stability during machining operations.

3. Versatility: Compatible with a variety of TNMG inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), it supports a wide range of cutting applications and materials, enhancing versatility in CNC machining.

4. Ease of Use: Featuring an ergonomic design and user-friendly components such as HL1813 clamps and ML0625 screws, it facilitates quick and efficient tool changes and adjustments.

5. Application Flexibility: Suitable for both roughing and finishing operations, the S32T-MTFNR16 adapts well to diverse machining needs in industrial settings.
