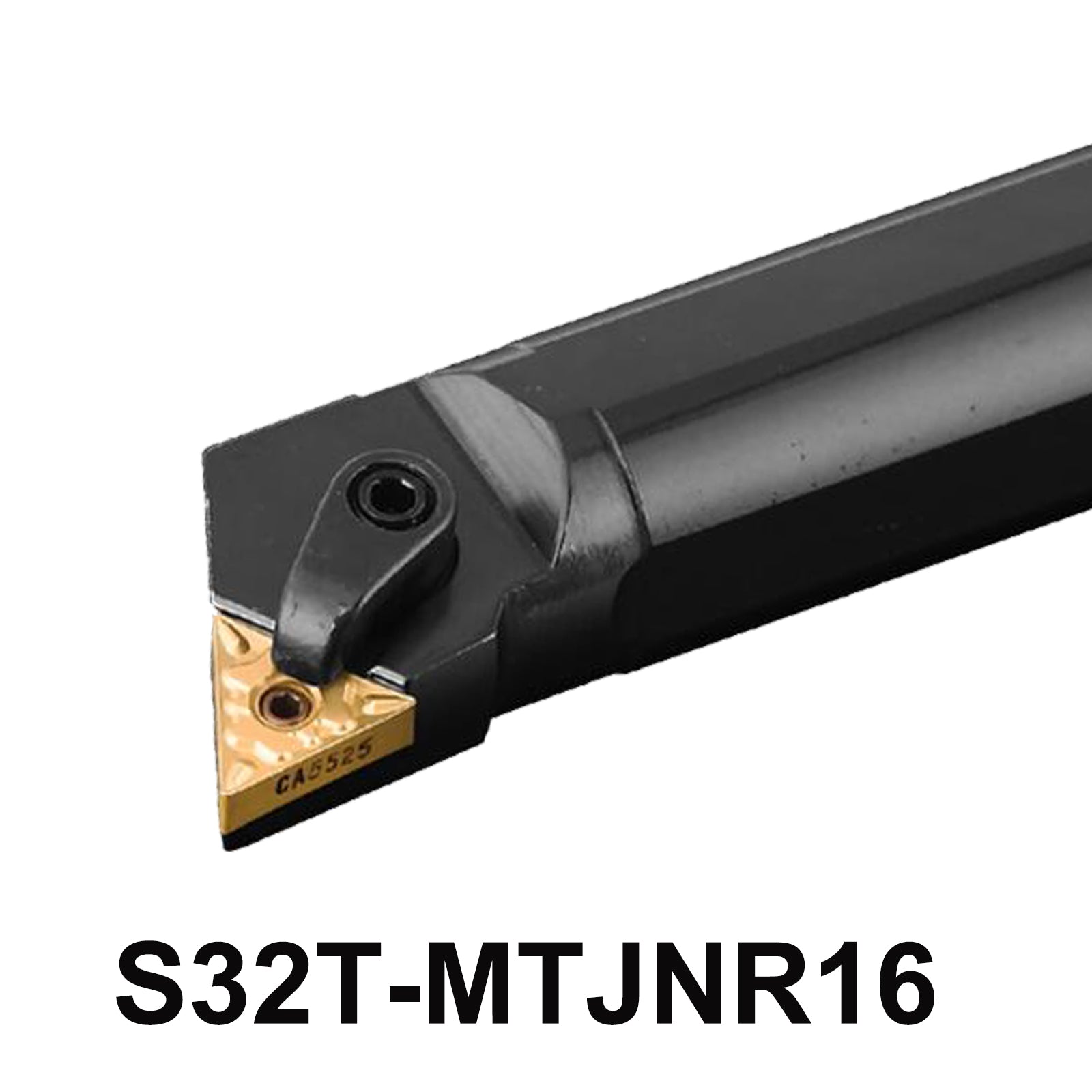

Overview:The S32T-MTJNR16 is a precision-engineered CNC machine boring bar designed for internal turning operations. It features a robust alloy steel construction with meticulous attention to detail, ensuring durability and high performance in machining tasks.

Specifications and Dimensions:

• Tool Holder Type: Right-hand tool holder
• Tool Cutting Edge Angle: 93°
• Relief Angle of Blade: 0°
• Internal Turning Tools Holder Material: Alloy steel, M-type
• Model: S32T-MTJNR16
• Diameter of Handle: 32mm
• Total Length: 300mm
• Length of Cutting Blade: 12mm
• Shim: MT1603
• Pin: CTM513
• Clamp: HL1813
• Screw: ML0625
• Wrenches Included: L2.0, L3.0
• Compatible Blade Inserts (Blade Types): TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

Application:This CNC machine boring bar holder, S32T-MTJNR16, is essential for internal turning operations in CNC machine tools and lathes, offering reliability and performance with its robust alloy steel construction and precise design.

5-point description:

1. Precision Design: Engineered for CNC lathes and machine tools, ensuring precise machining operations.
2. Durable Construction: Made from high-quality alloy steel for longevity and reliability.
3. Versatile Application: Suitable for various internal turning tasks, offering flexibility in CNC operations.
4. Complete Set: Includes necessary accessories such as shims, pins, clamps, screws, and wrenches for immediate use.
5. Optimized Performance: Designed with a 93° cutting edge angle for efficient cutting and minimal wear.

S32T-MTJNR16 CNC Machine Boring Bar Tool Holder

Specifications, Key Features, Applications of S32T-MTJNR16

Material, Dimensions, Included Accessories

Advantages of the S32T-MTJNR16:

1. Durability: Constructed from high-quality alloy steel, the S32T-MTJNR16 offers exceptional durability and longevity, ensuring reliable performance in demanding machining environments.

2. Precision Machining: Designed for internal turning operations, the holder provides precise control and accuracy, essential for achieving tight tolerances and high-quality surface finishes.

3. Versatility: Compatible with a range of cutting inserts (TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333), the holder supports various machining applications and materials, enhancing operational flexibility.

4. Secure Clamping: Features an M-type clamping mechanism and compatible components (Shim MT1603, Pin CTM513, Clamp HL1813, Screw ML0625) for secure and stable tool fixation, minimizing vibration and ensuring consistent cutting performance.

5. Ease of Use: Designed with user-friendly features such as standard wrench sizes (L2.0, L3.0), the holder facilitates straightforward setup and tool changes, reducing downtime and enhancing productivity.
