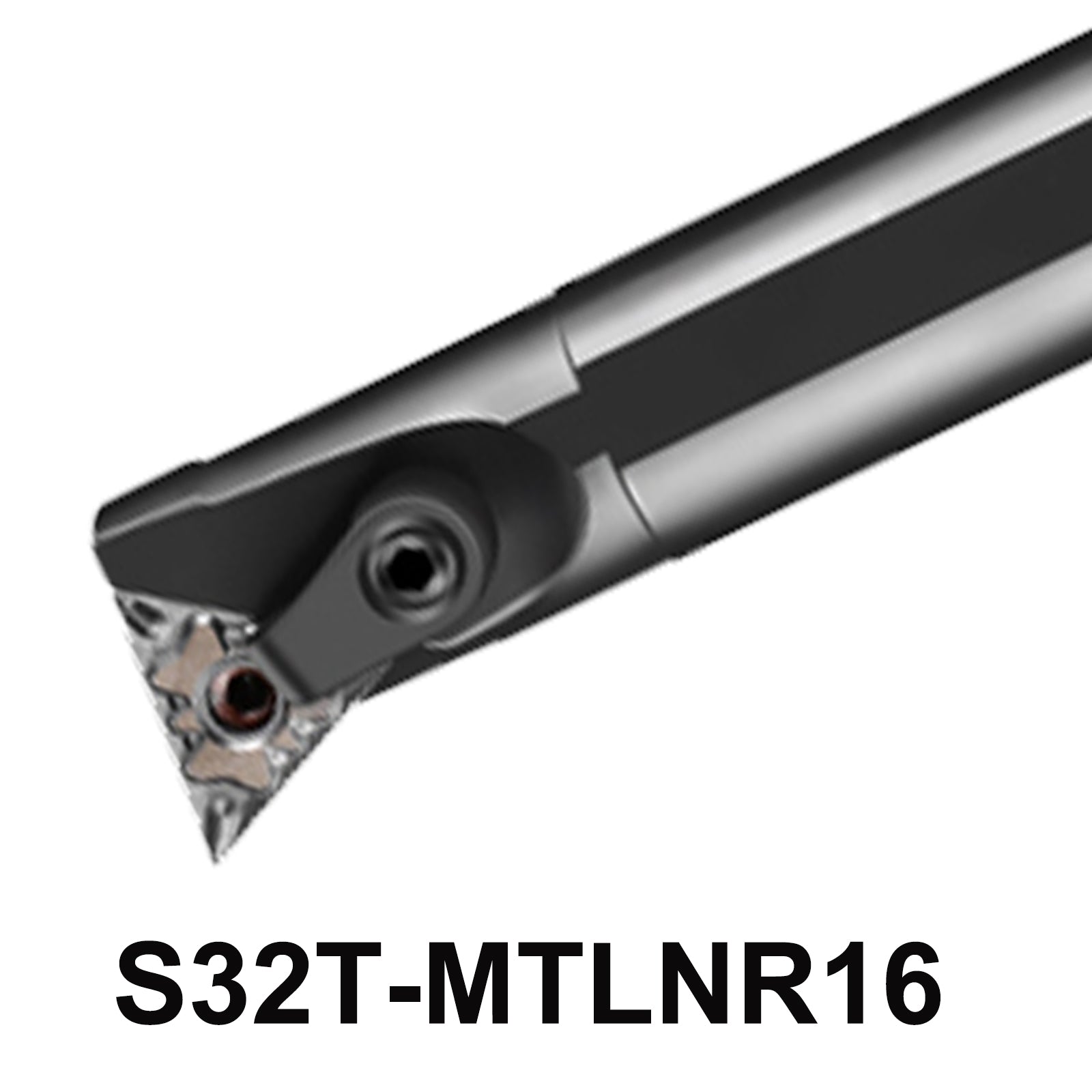

S32T-MTLNR16 Internal Boring Bar Right Tool Holder

• Overview of S32T-MTLNR16

• Specifications

• Features of S32T-MTLNR16

• Materials and Construction

• Insert Compatibility

• Applications

• Advantages

• Accessories Included

Overview:Discover the S32T-MTLNR16 Internal Boring Bar Right Tool Holder, crafted from durable alloy steel with a 95° cutting edge angle and 0° relief angle. Equipped with an M-type multi-lock system, it ensures secure clamping of TNMG inserts for precise internal turning operations on CNC lathes. Includes MT1603 shim, CTM513 pin, HL1813 clamp, ML0625 screw, and L2.0/L3.0 wrenches for easy setup.

Specifications:

• Material: Alloy Steel

• Model: S32T-MTLNR16

• Tool Type: Internal Turning Tools Holder

• Cutting Edge Angle: 95°

• Relief Angle of Blade: 0°

• Diameter of Handle: 32mm

• Total Length: 300mm

• Length of Cutting Blade: 16mm

• Components: Shim:MT1603,Pin CTM513, Clamp HL1813, Screw ML0625, Wrench L2.0, L3.0

• Blades Compatibility: TNMG160402, TNMG160404, TNMG160408, TNMG160412, TNMG160416, TNMG331, TNMG332, TNMG333

5-Point Product Description for S32T-MTLNR16:

1. Precision Machining: Designed for internal turning operations, featuring a 95° cutting edge angle and 0° relief angle for optimal performance.

2. Durable Construction: Made from high-quality alloy steel to ensure durability and reliability in CNC machine tools and lathes.

3. M-Type Multi-Lock System: Provides secure clamping of TNMG series carbide inserts (TNMG160402, TNMG160404, etc.), minimizing vibration and enhancing stability during machining.

4. Versatile Application: Suitable for a wide range of materials including metals and alloys, offering flexibility in CNC machining operations.

5. Complete Set: Includes essential accessories such as MT1603 shim, CTM513 pin, HL1813 clamp, ML0625 screw, and L2.0/L3.0 wrenches for convenient setup and maintenance

Application:

Ideal for CNC machine tools and CNC lathes, suitable for internal turning operations.

Advantages:

1. High-Quality Alloy Steel: Ensures durability and reliability in demanding machining environments.
2. Optimized Cutting Edge: 95° cutting edge angle enhances cutting performance and extends tool life.
3. Secure Insert Clamping: M-type multi-lock system provides stability and precision during machining.
4. Comprehensive Accessories: Includes essential accessories for convenient setup and operation.
5. Versatile Use: Suitable for various internal turning tasks on CNC lathes, ensuring accuracy and efficiency.
