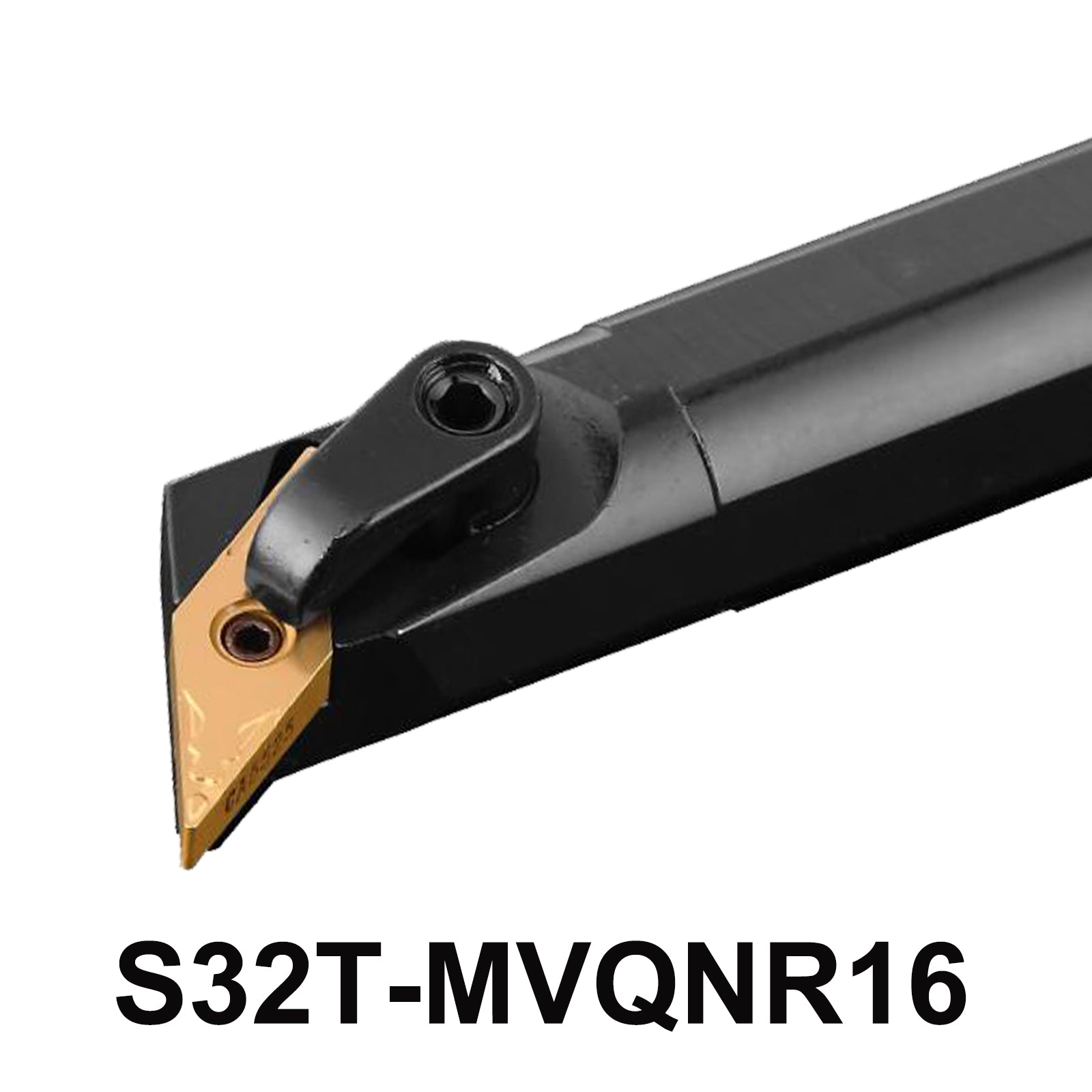

S32T-MVQNR16 Internal Turning Tool Holder for CNC Lathes - Alloy Steel, 32mm Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Overview:
The S32T-MVQNR16 Internal Turning Tool Holder is designed for precision machining in CNC lathes and machining centers. Crafted from high-quality alloy steel, it features a multi-lock system (M-type) for secure tool positioning. The tool holder has a 117.5° cutting edge angle, ensuring efficient cutting performance. Ideal for various turning operations, it comes with VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, and VNMG333 blades, offering versatility and reliability for professional machining tasks.
Detail Page:
- Material: Alloy Steel
- Tool Holder Type: Internal Turning Tool Holder
- Cutting Edge Angle: 117.5°
- Multi-Lock System: (M-type)
- Diameter of Handle: 32mm
- Total Length: 300mm
- Length of Cutting Blade: 16mm
- Included Components: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333 blades
- Compatibility: Shim MV1603, Pin CTM513, HL2114, Screw ML0625, Wrench L2.0/L3.0
Applications:
Ideal for use in CNC machine tools, CNC lathes, and machining centers, the S32T-MVQNR16 ensures precise internal turning operations. It offers reliability and durability for professional machining environments.
Why Choose S32T-MVQNR16?
- Precision Machining: Crafted from high-quality alloy steel, the S32T-MVQNR16 ensures precision in machining operations
- Versatility: With a 117.5° cutting edge angle and compatibility with VNMG blades, this tool holder accommodates a wide range of turning applications, enhancing operational flexibility.
- Secure Tool Positioning: Featuring a robust multi-lock system (M-type), the S32T-MVQNR16 provides secure and stable tool positioning, reducing vibration and enhancing machining stability.
- Durable Construction: Designed for durability and longevity, the alloy steel construction of the S32T-MVQNR16 ensures reliability in demanding machining environments, minimizing tool wear and maintenance costs.
S32T-MVQNR16 Internal Turning Tool Holder - Alloy Steel, 117.5° Cutting Edge Angle
-
Overview of S32T-MVQNR16 Internal Turning Tool Holder
-
Specifications of S32T-MVQNR16 Tool Holder
-
Features of S32T-MVQNR16 Internal Turning Tool Holder
-
Applications of S32T-MVQNR16 Tool Holder
-
Compatibility and Included Components
-
Material: Alloy Steel
-
Cutting Edge Angle: 117.5°
-
Multi-Lock System: M-type
-
Included Blades: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
-
Application Areas: CNC Machine Tools, CNC Lathes, Machining Centers
5-point description:
-
Precision Machining: Crafted from durable alloy steel, the S32T-MVQNR16 ensures precise internal turning operations with a 117.5° cutting edge angle and a 0° relief angle.
-
Multi-Lock System: Featuring an M-type multi-lock system, this tool holder provides secure clamping of inserts, enhancing stability during machining.
-
Versatile Inserts: Includes VNMG160404, VNMG160408, and VNMG160412 inserts, offering versatility for various cutting applications in CNC lathes and machining centers.
-
Robust Construction: With a 32mm diameter and total length of 300mm, it offers robustness for prolonged use in industrial settings, maintaining accuracy and reliability.
-
Application: Ideal for CNC machine tools, this tool holder is designed to meet the demands of professional machining, delivering consistent performance and efficiency.
S32T-MVQNR16 Internal Turning Tool Holder, designed with alloy steel for strength and performance. This tool holder is equipped with a multi-lock system for secure inserts and comes with various VNMG inserts for different cutting applications. It's suitable for CNC lathes and machining centers, providing precise internal turning capabilities.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
