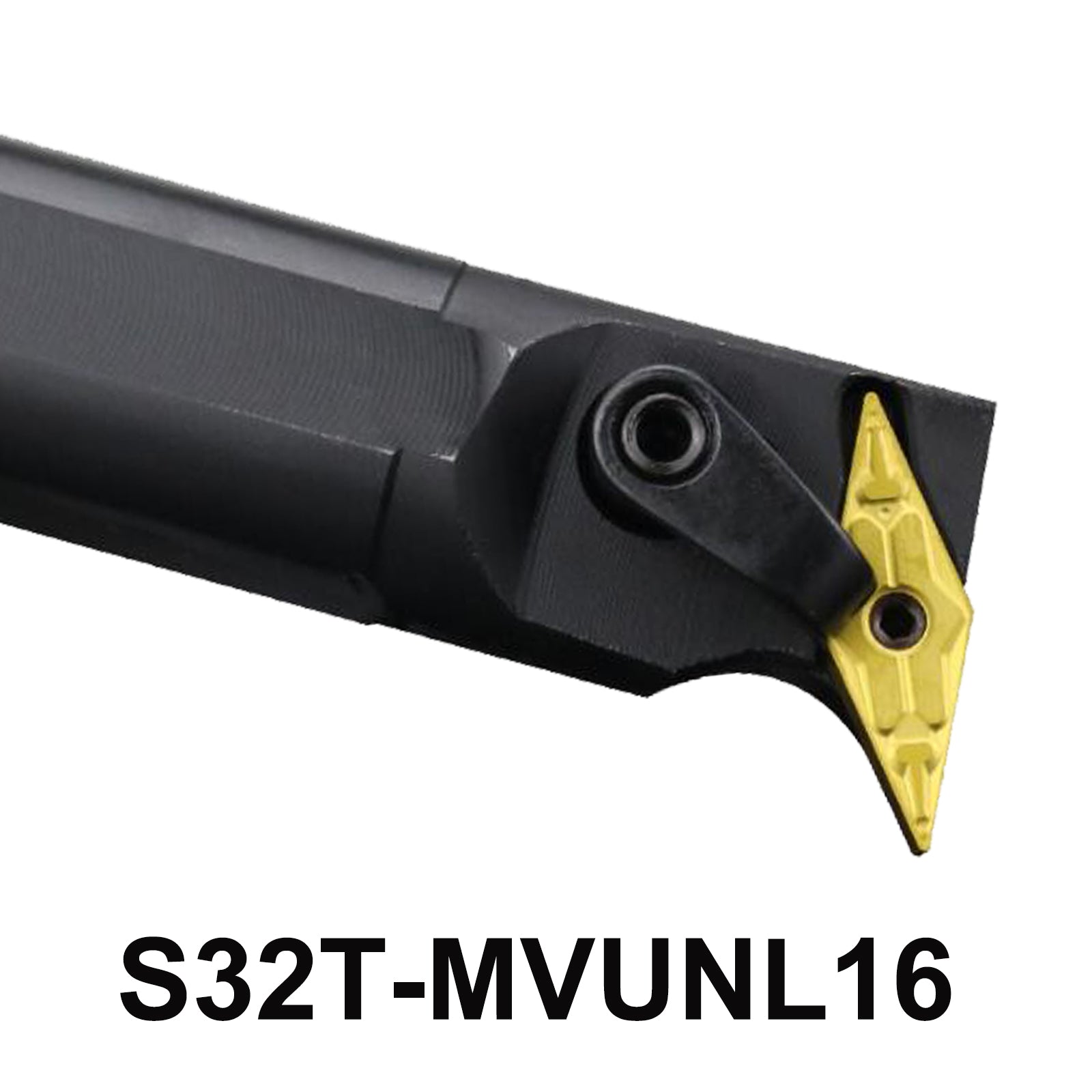

S32T-MVUNL16 Internal Boring Bar Tool Holder | CNC Lathe Tool Holder

Precision Tooling for CNC Machining

Key Features and Specifications

5-Point Description:

1. Premium Construction: Crafted from robust alloy steel for durability and reliability in machining operations.
2. Optimized Cutting Performance: 95° cutting edge angle and 0° relief angle facilitate efficient chip evacuation and reduce cutting forces.
3. Wide Insert Compatibility: Supports a range of VNMG inserts for versatility in turning applications.
4. Secure Tool Holder: Features an M-type multi-lock system ensuring stable tool positioning for precision machining.
5. Complete Package: Includes essential accessories such as MV1603 shims, CTM513 pin, HL2114 clamp, ML0625 screws, and L2.0 L3.0 wrenches for immediate use and maintenance.

Overview:

The S32T-MVUNL16 is a premium internal boring bar tool holder designed for precision machining in CNC lathes and machine tools. It features a robust alloy steel construction with a 32mm diameter handle and a total length of 300mm. The cutting blade measures 16mm in length and supports various VNMG inserts. Equipped with an M-type multi-lock system, it ensures secure and stable tool positioning during heavy-duty cutting tasks.

Specifications

• Model: S32T-MVUNL16
• Tool Cutting Edge Angle: 95°
• Relief Angle of Blade: 0°
• Material: Alloy Steel
• Diameter of Handle: 32mm
• Total Length: 300mm
• Length of Cutting Blade: 16mm
• Insert Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
• Tool Holder Type: Internal Boring Bar
• Shim:MV1603
• Pin: CTM513
• Clamp: HL2114
• Screw: ML0625
• Wrench: L2.0 / L3.0
• Locking System: M-type (multi-lock system)

Application:

The S32T-MVUNL16 Internal Boring Bar Tool Holder is ideal for CNC machine tools and CNC lathes, specifically for internal turning operations. It enhances machining efficiency and precision, making it suitable for various industrial applications.

Advantages:

• Enables precise and efficient machining with its optimized cutting geometry.
• Offers versatility with compatibility across various VNMG inserts.
• Provides secure and stable tool holding with the M-type multi-lock system.
• Designed for durability and long-term performance in industrial settings.
• Includes comprehensive accessories for immediate setup and usability.

Package Includes:

• S32T-MVUNL16 Tool Holder
• Compatible Clamps, Shims, Pins, Screws, and Wrenches
