S32T-MVUNR16 Internal Boring Bar Tool Holder for CNC Lathes - Alloy Steel, 32mm Diameter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S32T-MVUNR16 Internal Boring Bar Tool Holder | CNC Lathe Tool Holder
Precision Tooling for CNC Machining
Key Features and Specifications
5-Point Description:
- Premium Construction: Crafted from robust alloy steel for durability and reliability in machining operations.
- Optimized Cutting Performance: 95° cutting edge angle and 0° relief angle facilitate efficient chip evacuation and reduce cutting forces.
- Wide Insert Compatibility: Supports a range of VNMG inserts for versatility in turning applications.
- Secure Tool Holder: Features an M-type multi-lock system ensuring stable tool positioning for precision machining.
- Complete Package: Includes essential accessories such as MV1603 shims, CTM513 pin, HL2114 clamp, ML0625 screws, and L2.0 L3.0 wrenches for immediate use and maintenance.
Overview:

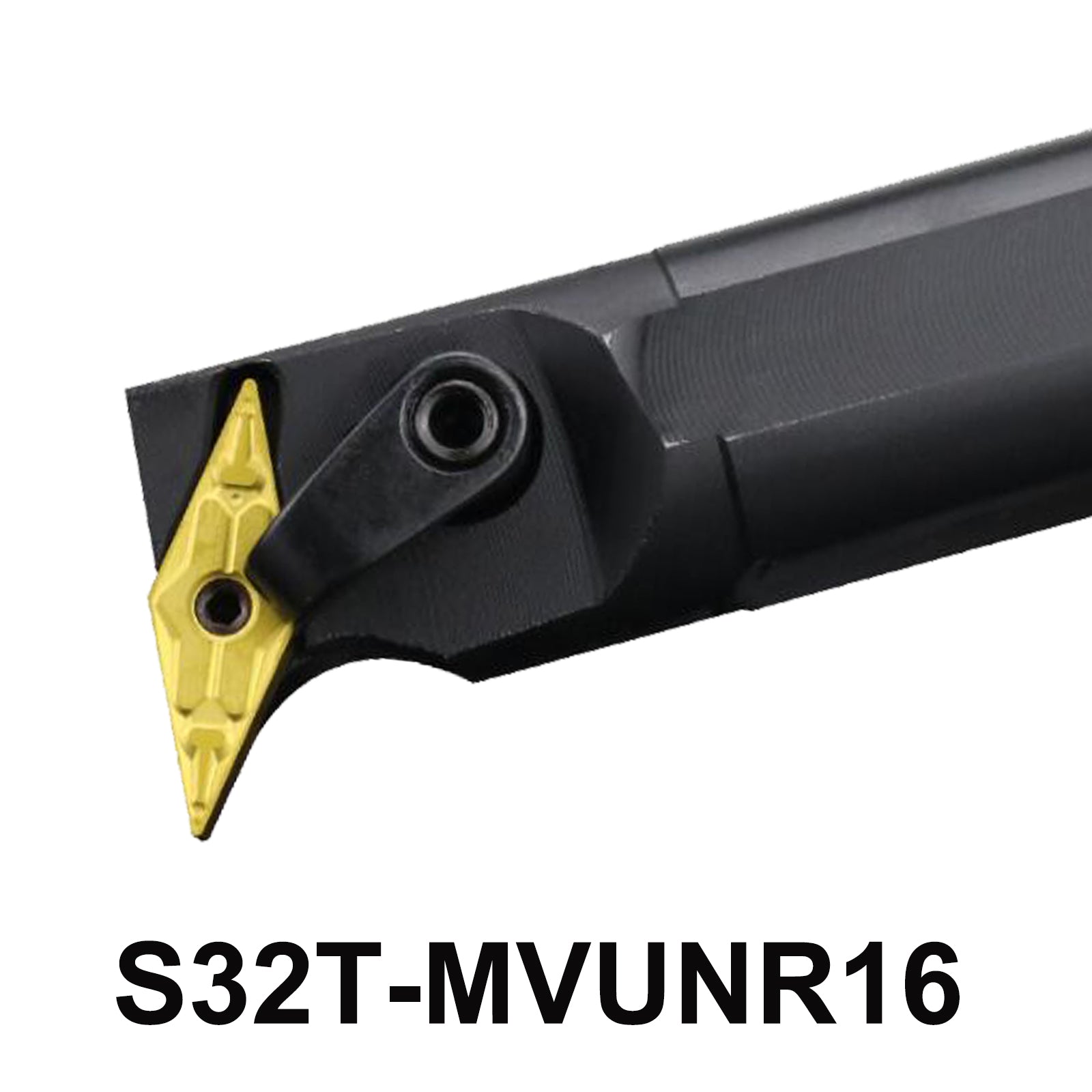

The S32T-MVUNR16 is a premium internal boring bar tool holder designed for precision machining in CNC lathes and machine tools. It features a robust alloy steel construction with a 32mm diameter handle and a total length of 300mm. The cutting blade measures 16mm in length and supports various VNMG inserts. Equipped with an M-type multi-lock system, it ensures secure and stable tool positioning during heavy-duty cutting tasks.

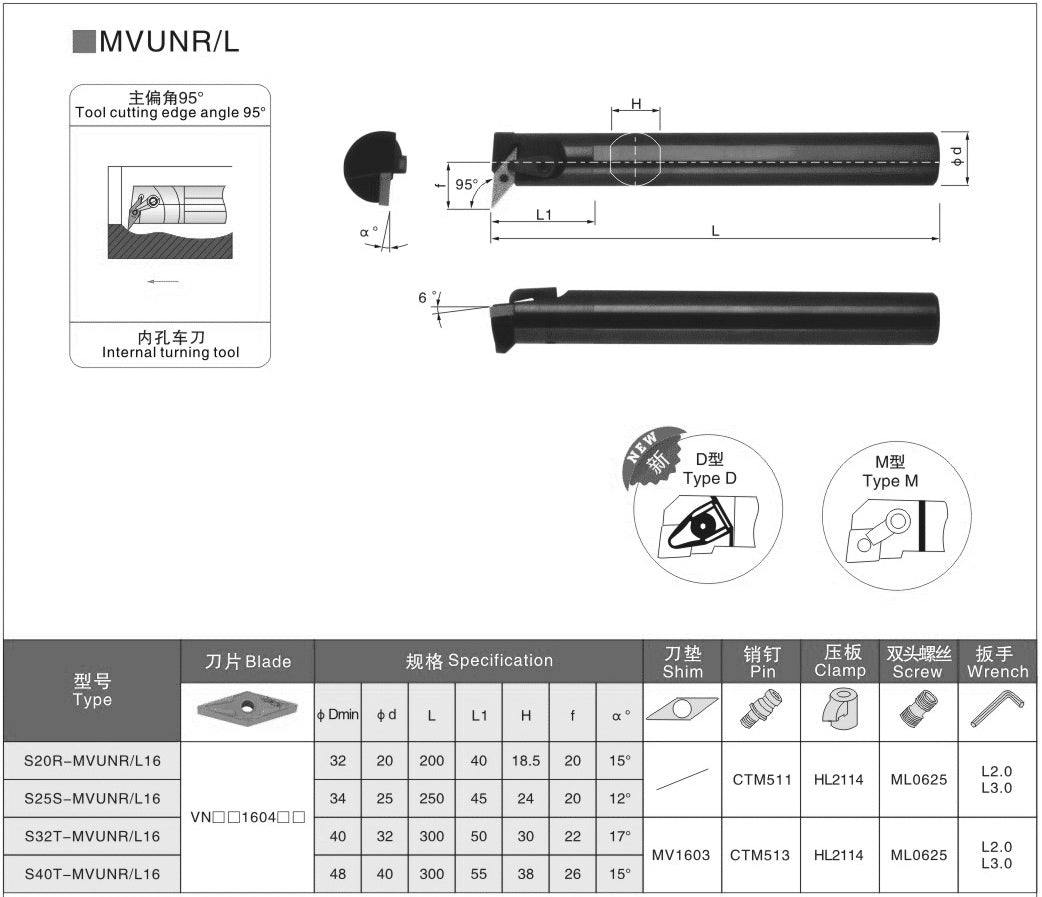

Specifications
- Model: S32T-MVUNR16
- Tool Cutting Edge Angle: 95°
- Relief Angle of Blade: 0°
- Material: Alloy Steel
- Diameter of Handle: 32mm
- Total Length: 300mm
- Length of Cutting Blade: 16mm
- Insert Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
- Tool Holder Type: Internal Boring Bar
- Shim:MV1603
- Pin: CTM513
- Clamp: HL2114
- Screw: ML0625
- Wrench: L2.0 / L3.0
- Locking System: M-type (multi-lock system)
Application:
The S32T-MVUNR16 Internal Boring Bar Tool Holder is ideal for CNC machine tools and CNC lathes, specifically for internal turning operations. It enhances machining efficiency and precision, making it suitable for various industrial applications.
Advantages:
- Enables precise and efficient machining with its optimized cutting geometry.
- Offers versatility with compatibility across various VNMG inserts.
- Provides secure and stable tool holding with the M-type multi-lock system.
- Designed for durability and long-term performance in industrial settings.
- Includes comprehensive accessories for immediate setup and usability.
Package Includes:
- S32T-MVUNR16 Tool Holder
- Compatible Clamps, Shims, Pins, Screws, and Wrenches
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
