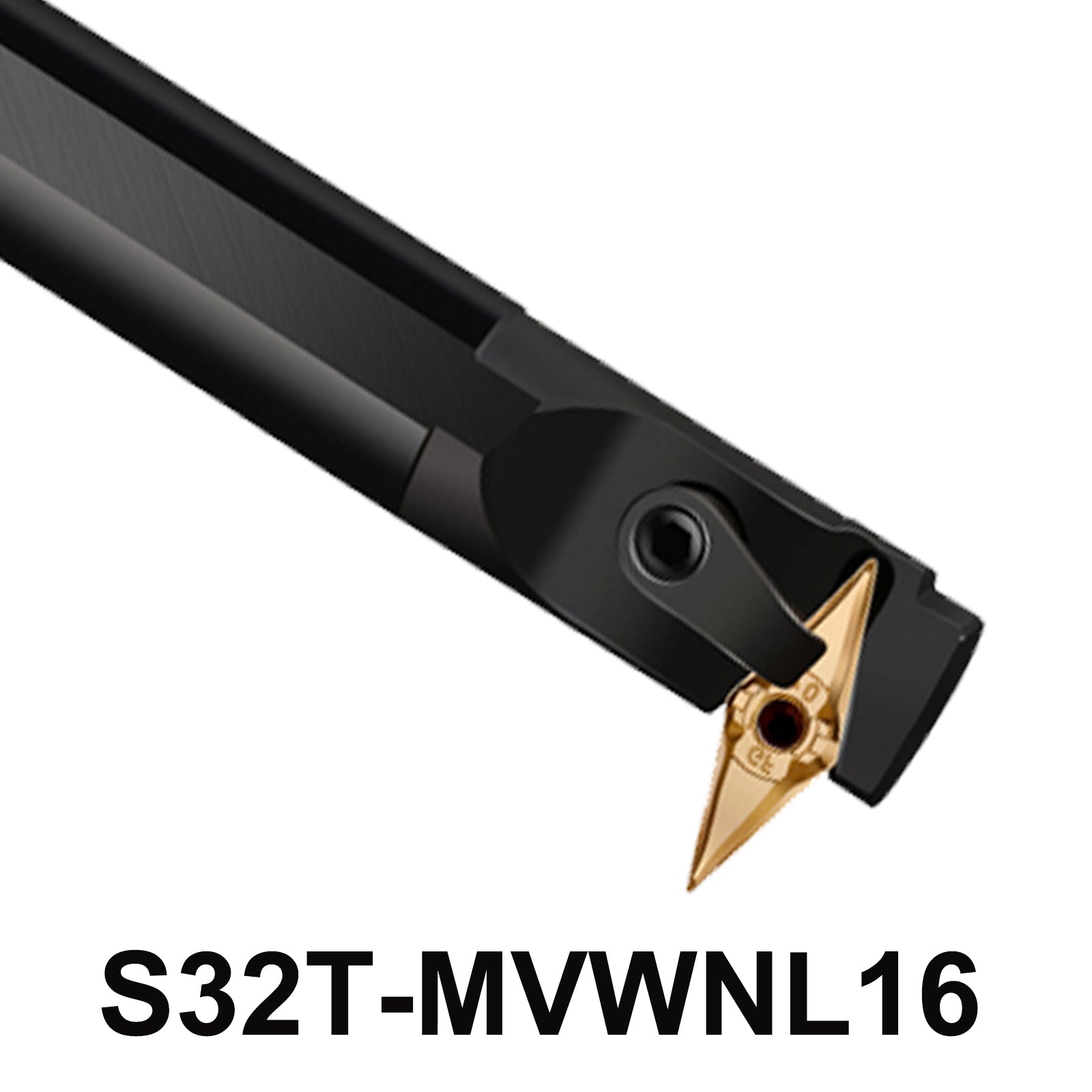

S32T-MVWNL16 Internal Boring Bar Tool Holder | CNC Lathe Cutter Tool

Overview of S32T-MVWNL16 Tool Holder

Application and Advantages

Overview:

The S32T-MVWNL16 Internal Boring Bar Tool Holder is engineered for precision machining on CNC machine tools and lathes. It features a 72.5° tool cutting edge angle and is crafted from durable alloy steel. The multi-lock system (M-type) ensures secure insert clamping, minimizing vibrations during cutting operations. This tool holder includes VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333) and comes complete with accessories: MV1603 shim, CTM513 pin, HL2114 clamp, ML0625 screw, and L2.0/L3.0 wrench.

Detail Page:

• Model: S32T-MVWNL16
• Tool Holder Type: Internal Boring Bar
• Tool Cutting Edge Angle: 72.5°
• Material: Alloy Steel
• Handle Diameter: 32mm
• Total Length: 250mm
• Cutting Blade Length: 16mm
• Multi-Lock System: (M-type)
• Included Inserts: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
• Accessories: MV1603 shim, CTM513 pin, HL2114 clamp, ML0625 screw, L2.0/L3.0 wrench

5-Point Description:

1. Precision Machining: Designed for internal turning operations with a 72.5° tool cutting edge angle.
2. Durable Construction: Made from high-quality alloy steel for longevity and reliability.
3. Multi-Lock System: Ensures stable and secure clamping of inserts, enhancing cutting performance.
4. Versatile Compatibility: Supports various VNMG carbide inserts for different machining needs.
5. Complete Set: Includes shim, pin, clamp, screw, and wrench for immediate use on CNC lathes.

The S32T-MVWNL16 is primarily used in CNC machine tools and CNC lathes for the following operations:

Internal Turning: Achieve precise machining of internal surfaces.
Boring: Expand existing holes with accuracy and reliability.
Facing: Create smooth and flat surfaces on workpieces.
Grooving and Parting: Perform detailed grooving and parting-off operations.

Advantages:

• High Precision: 72.5° tool cutting edge angle ensures accuracy in machining.
• Durability: Alloy steel construction provides robustness for intensive use.
• Stability: M-type multi-lock system minimizes vibrations for stable cutting.
• Versatility: Compatible with a range of VNMG carbide inserts for various materials.
• Complete Set: Includes all necessary accessories for immediate use.
