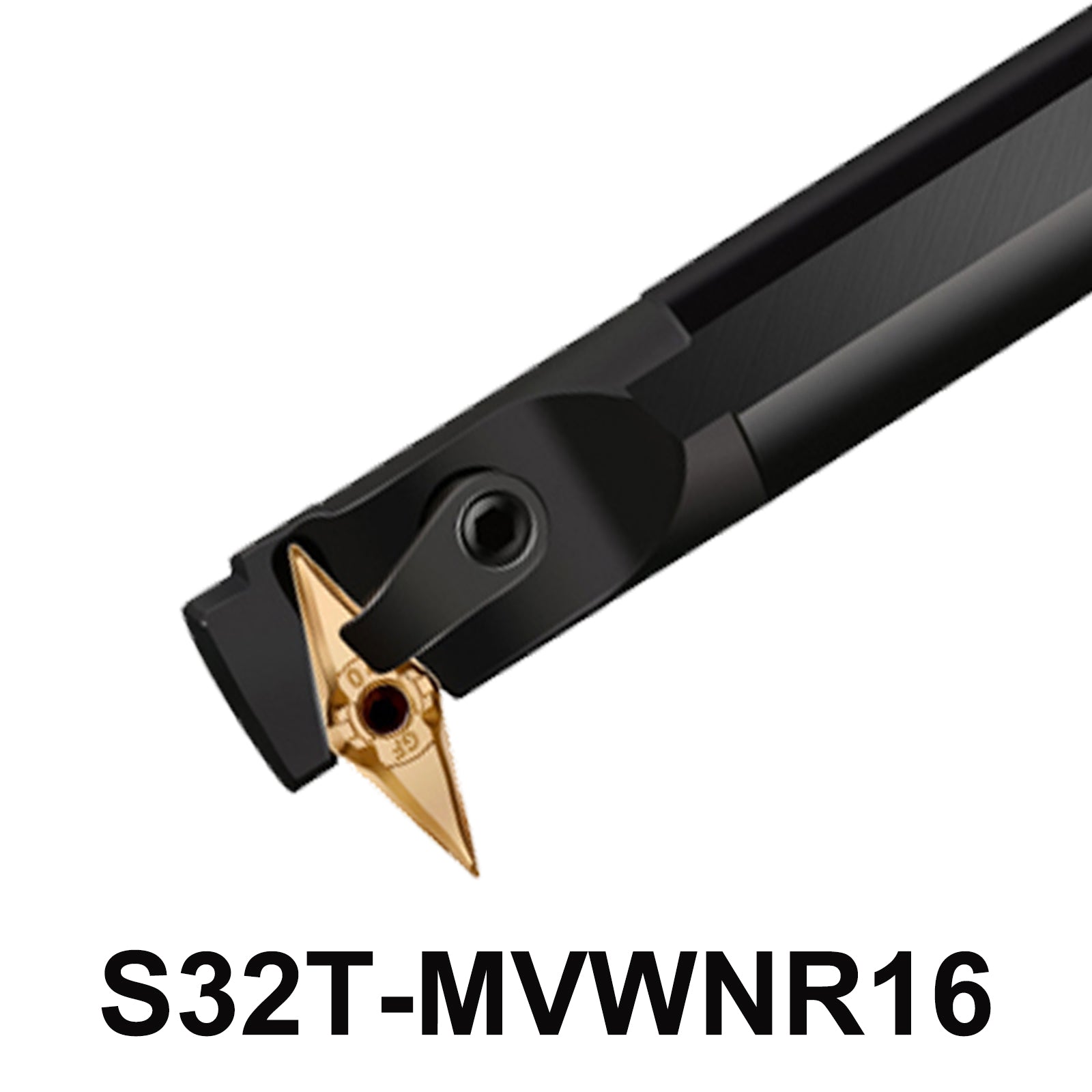

S32T-MVWNR16 Internal Boring Bar Tool Holder - CNC Lathe Cutter Tool with Multi-Lock System
Price shown is a starting point. Contact us for a precise quote based on your requirements.
S32T-MVWNR16 Internal Boring Bar Tool Holder | CNC Lathe Cutter Tool
Overview of S32T-MVWNR16 Tool Holder
Application and Advantages
Overview:
The S32T-MVWNR16 Internal Boring Bar Tool Holder is engineered for precision machining on CNC machine tools and lathes. It features a 72.5° tool cutting edge angle and is crafted from durable alloy steel. The multi-lock system (M-type) ensures secure insert clamping, minimizing vibrations during cutting operations. This tool holder includes VNMG carbide inserts (VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333) and comes complete with accessories: MV1603 shim, CTM513 pin, HL2114 clamp, ML0625 screw, and L2.0/L3.0 wrench.
Detail Page:
- Model: S32T-MVWNR16
- Tool Holder Type: Internal Boring Bar
- Tool Cutting Edge Angle: 72.5°
- Material: Alloy Steel
- Handle Diameter: 32mm
- Total Length: 250mm
- Cutting Blade Length: 16mm
- Multi-Lock System: (M-type)
- Included Inserts: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333
- Accessories: MV1603 shim, CTM513 pin, HL2114 clamp, ML0625 screw, L2.0/L3.0 wrench
5-Point Description:
- Precision Machining: Designed for internal turning operations with a 72.5° tool cutting edge angle.
- Durable Construction: Made from high-quality alloy steel for longevity and reliability.
- Multi-Lock System: Ensures stable and secure clamping of inserts, enhancing cutting performance.
- Versatile Compatibility: Supports various VNMG carbide inserts for different machining needs.
- Complete Set: Includes shim, pin, clamp, screw, and wrench for immediate use on CNC lathes.
The S32T-MVWNR16 is primarily used in CNC machine tools and CNC lathes for the following operations:
Internal Turning: Achieve precise machining of internal surfaces.
Boring: Expand existing holes with accuracy and reliability.
Facing: Create smooth and flat surfaces on workpieces.
Grooving and Parting: Perform detailed grooving and parting-off operations.
Advantages:
- High Precision: 72.5° tool cutting edge angle ensures accuracy in machining.
- Durability: Alloy steel construction provides robustness for intensive use.
- Stability: M-type multi-lock system minimizes vibrations for stable cutting.
- Versatility: Compatible with a range of VNMG carbide inserts for various materials.
- Complete Set: Includes all necessary accessories for immediate use.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
