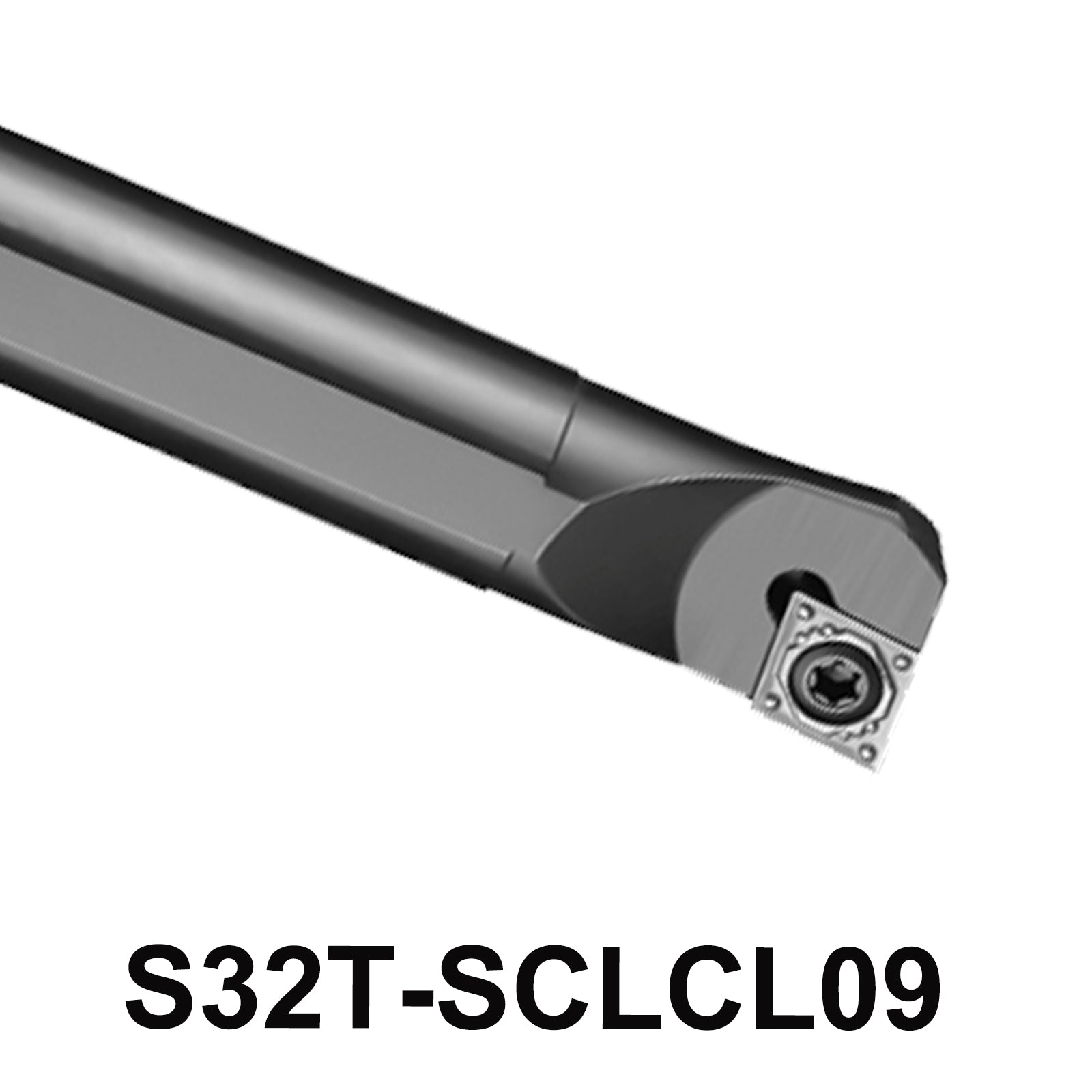

S32T-SCLCL09 Internal Boring Bar Machine Holder – High-Precision Alloy Steel for Diverse Machining Tasks
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Introducing the S32T-SCLCL09 CNC Internal Boring Bar Tool Holder S32T SCLCL09
-
95° Cutting Edge and 7° Relief Angle for Optimal Internal Turning
-
Robust Alloy Steel Construction with 32mm Diameter and 300mm
-
Compatible with CCMT Inserts
-
Durable and Reliable Screw-Type System
-
9mm Blade Length Precision Cutting
5-Point Description:
- Precision Cutting: Features a 95° cutting edge and 7° relief angle for accurate and clean internal turning.
- Durable Construction: Made from high-strength alloy steel with a 32mm diameter handle and 300mm length for added stability.
- Versatile Compatibility: Supports a variety of CCMT inserts ( CCMT09T302, CCMT09T304) for different machining needs.
- Easy Adjustment: S-type (screw-type) design with M4*8 screws and T15 wrench for straightforward setup and maintenance.
- Wide Application: Ideal for use in CNC machine tools and lathes, enhancing your machining efficiency and precision.
Overview:
The S32T-SCLCL09 CNC Internal Boring Bar Tool Holder is engineered to offer unparalleled precision and durability for internal turning operations. With a 95° cutting edge angle and a 7° relief angle, this tool holder ensures exceptional accuracy and clean finishes. Constructed from high-strength alloy steel, it features a robust 32mm diameter handle and a 300mm total length for superior stability. Compatible with various CCMT inserts, it’s designed for use in CNC machine tools and lathes, making it an essential addition to any professional workshop.
Specifications:
- Model: S32T-SCLCL09
- Tool Cutting Edge Angle: 95°
- Material: Alloy Steel
- Type: S-Type (Screw-type)
- Diameter of Handle: 32mm
- Total Length: 300mm
- Length of Cutting Blade: 9mm
- Screw: M4*8
- Wrench: T15
- Compatible Blade Inserts: CCMT09T302, CCMT09T304, CCMT09T308, CCMT3(2.5)0, CCMT3(2.5)1, CCMT3(2.5)2
Applications:
- CNC Internal Turning Operations
- Machining with CNC Lathes
- Precision Cutting in Boring Bar Sets
Advantages:
- Superior Cutting Accuracy
- Enhanced Tool Stability
- Versatile Insert Compatibility
Reasons to Choose:
- High-Strength Alloy Steel for Longevity
- Optimized Design for CNC Machining
- Easy Maintenance and Adjustment Features
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
