Description:

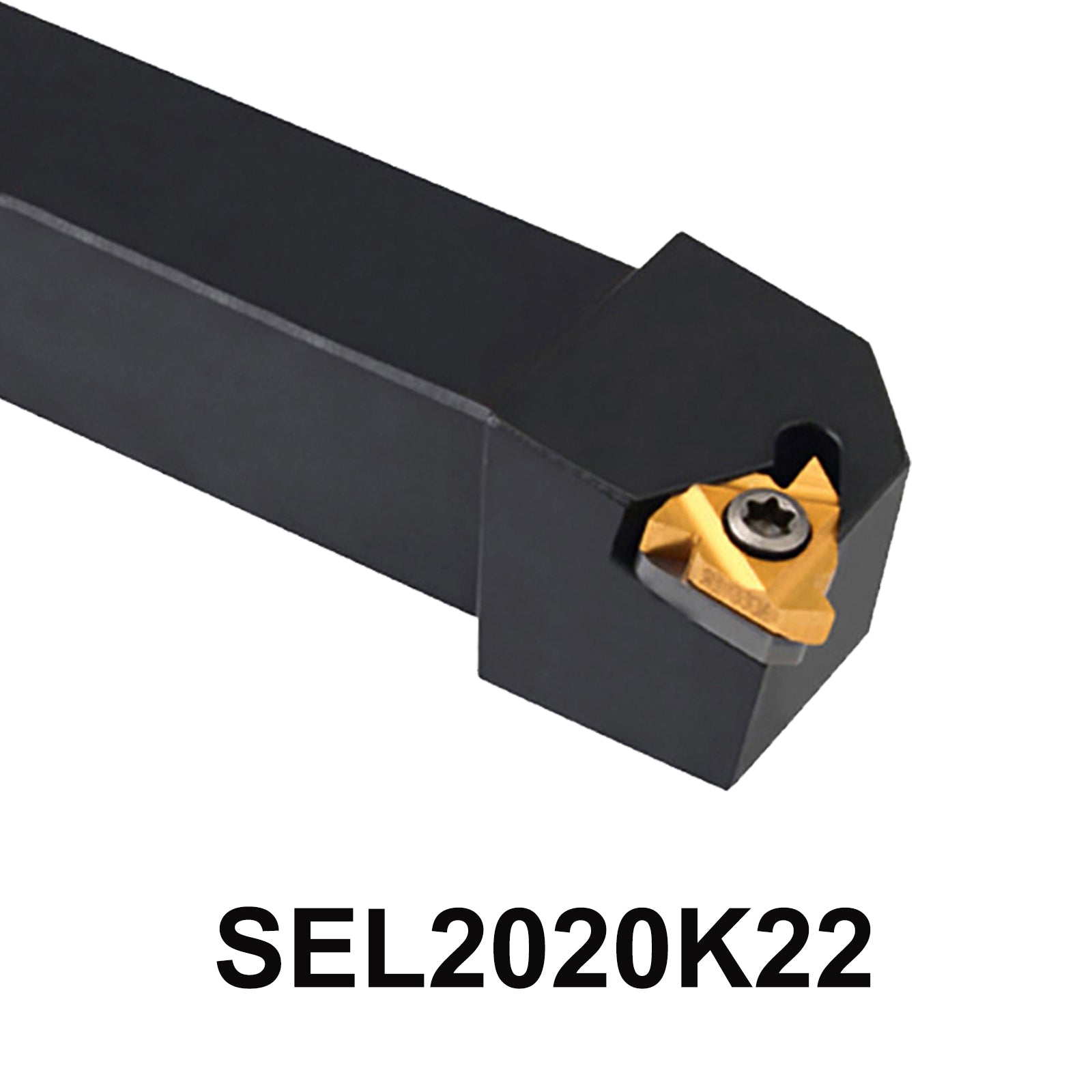

The SEL2020K22 External Threading Tool   is designed to provide precision and durability for external threading operations on CNC lathes

Featuring a 125mm length and 20mm body width, it is optimized for use with 22EL inserts.The tool holder's right-cut cutting direction and side length of 22mm triangle blade ensure smooth and accurate thread cutting.

Product parameters:

• Tool Holder Model: SER2020K22

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : External thread
• Cutting direction : Left cut
• Height of tool nose : 20mm
• Width of body of cutting tool : 20mm
• Length of cutting tool : 125mm
• Size of blade :
• 1.Side length of traingle : 22mm
• 2.Incircle : 12.7mm
• Applicable blade : 22L
• Shim : STM22T3L
• Screw : M4*14
• Lateral screw : M3*8C
• Wrench : T15
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * SEL2020K22 External Threading Tool

1 * STM22T3L Shim

1 * "T" Type wrench

1 * M4*14 Type Screw

1 *  M3*8C Lateral screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise threading, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND  SEL2020K22 External Threading Tool  SEL2020K22 SEL2020  SEL2020 K22 CNC Cutter Lathe Shank Carbide Insert

Optimize Threading Operations with the SEL2020K22 External Threading Tool – Durable, Accurate, and Versatile

Achieve High-Quality Threading with SEL2020K22 – Compatible with 22EL Inserts for Superior Performance

5-Point Description

1. High-Precision External Threading: The SEL2020K22 is designed specifically for external thread cutting with precision. Its left-cutting direction ensures smooth and accurate threads every time, ideal for a wide range of CNC lathe applications.

2. Durable and Robust Design: With a 20mm tool nose height, 20mm body width, and 125mm length, this tool offers superior stability and wear resistance, making it perfect for demanding cutting tasks.

3. Optimized Blade Geometry: The tool features a 22mm side length triangular blade with a 12.7mm incircle, designed for consistent cutting performance and reliable thread quality across various materials.

4. Complete Package for Easy Setup: Includes the tool holder, shim (STM22T3L), M414 screw, M38C lateral screw, and T15 wrench, providing all necessary components for quick and efficient installation.

5. Compatible with 22EL Inserts: Designed for use with 22EL inserts, this tool holder ensures maximum versatility and superior cutting performance for external threading applications.
