SEL2525M22 Indexable External Threading Tool
SER SEL

SEL2525M22 Indexable External Threading Tool | Left-Cut CNC Cutter for 22EL Inserts

$24.75 USD
Shipping calculated at checkout.

cnchome-beyond assurance

1.Safe payments Payment methods used by many international shoppers
2.Security & privacy We respect your privacy so your personal details are safe
3.Buyer protection Get your money back if your order isn't delivered by estimated date or if you're not satisfied with your order

4.Free shipping

american expressmasterpaypalvisa
SKU: SEL2525M22
Availability : In Stock Pre order Out of stock
Tags: SEL2525M22
Description

Description:

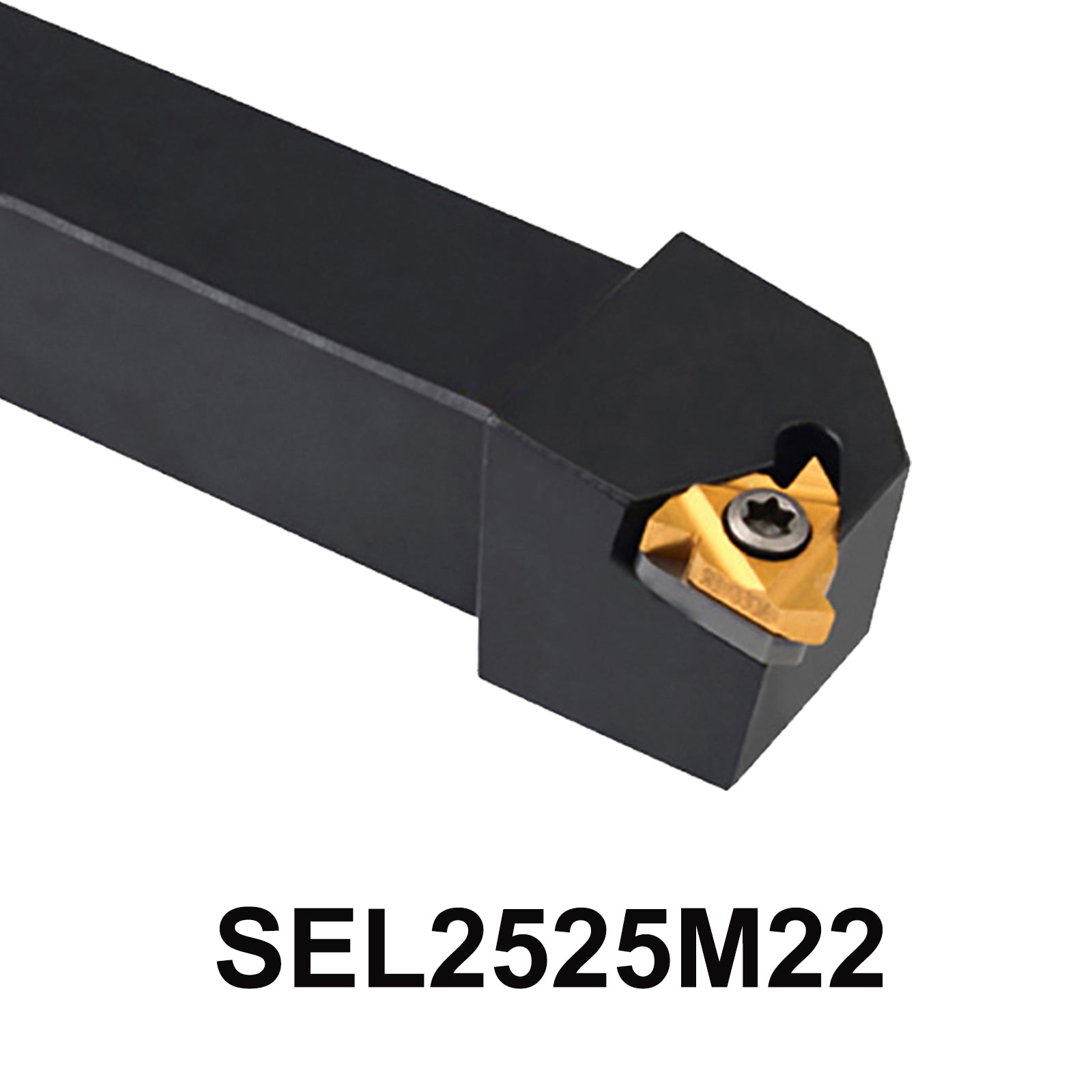

The SEL2525M22 Thread Tool For Lathe  is designed to provide precision and durability for external threading operations on CNC lathes

Featuring a 150mm length and 25mm body width, it is optimized for use with 22EL inserts.The tool holder's right-cut cutting direction and side length of 22mm triangle blade ensure smooth and accurate thread cutting.


Product parameters:



  • Tool Holder Model: SEL2525M22
  • Tool Holder Material : Carbide Steel, Carbon Steel
  • Model of Pressing plate :  Screw compession type
  • Thread form : External thread
  • Cutting direction : Left cut
  • Height of tool nose : 25mm
  • Width of body of cutting tool : 25mm
  • Length of cutting tool : 150mm
  • Size of blade :
  • 1.Side length of traingle : 22mm
  • 2.Incircle : 12.7mm
  • Applicable blade : 22L
  • Shim : STM22T3L
  • Screw : M4*14
  • Lateral screw : M3*8C
  • Wrench : T15
  • Detailed Dimensions of the tool holder : as pictured



Package Contents:



1 * SEL2525M22 Thread Tool For Lathe

1 * STM22T3L Shim

1 * "T" Type wrench

1 * M4*14 Type Screw

1 *  M3*8C Lateral screw



Features:



1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise threading, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench





BEYOND  SEL2525M22 External Threading Turning Tools Holder SEL2525M22 SEL2525  SEL2525 M22 CNC Cutter Lathe Shank Carbide Insert


High-Quality SEL2525M22 CNC Lathe Cutter – Ideal for Left-Cut External Threading with 22EL Inserts



Complete Tool Holder Package for CNC Machining – Includes Shim, Screws, Lateral Screw, and Wrench



5-Point Description

  1. Optimized for Left-Cut External Threading:
    The SEL2525M22 Indexable External Threading Tool is engineered for left-cut external threading, providing precision and efficiency in CNC lathe operations. Its high-performance design is perfect for producing clean and accurate threads.

  2. Versatile Insert Compatibility:
    This tool holder is designed to work with 22EL inserts, offering flexibility and reliability for a wide range of machining tasks. Whether cutting steel or non-ferrous metals, the SEL2525M22 excels in providing smooth, consistent thread profiles.

  3. Durable and Accurate Construction:
    With a 25mm tool nose height, 25mm body width, and 150mm length, this tool holder is built for durability and precision. It is engineered to handle demanding machining operations while maintaining the highest levels of accuracy.

  4. Complete Set for Easy Setup:
    The SEL2525M22 comes with all necessary components for hassle-free installation, including Shim STM22T3L, M4*14 screws, M3*8C lateral screws, and a T15 wrench. Everything you need to get up and running is included in the package.

  5. Reliable CNC Tooling for Professional Results:
    Crafted from high-quality materials, this tool holder is ideal for professional and industrial-grade CNC lathe operations. It delivers long-lasting performance, making it the perfect choice for machinists seeking reliable and high-performance tools.


SEL2525M22
Indexable External Threading Tool
