Description:

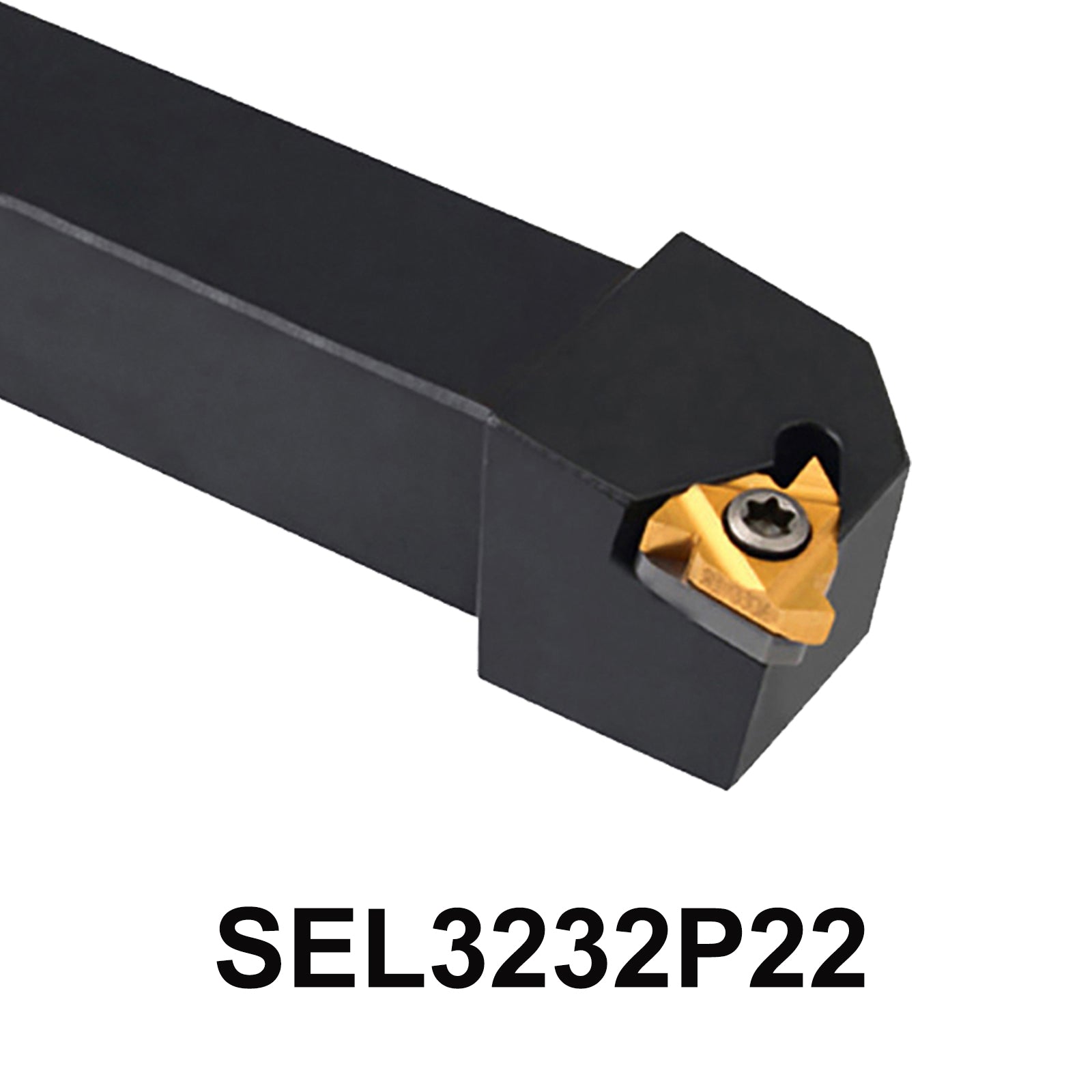

The SEL3232P22 Lathe Threading Tools  is designed to provide precision and durability for external threading operations on CNC lathes

Featuring a 170mm length and 32mm body width, it is optimized for use with 22EL inserts.The tool holder's right-cut cutting direction and side length of 22mm triangle blade ensure smooth and accurate thread cutting.

Product parameters:

• Tool Holder Model: SEL3232P22

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : External thread
• Cutting direction : Right cut
• Height of tool nose : 32mm
• Width of body of cutting tool : 32mm
• Length of cutting tool : 170mm
• Size of blade :
• 1.Side length of traingle : 22mm
• 2.Incircle : 12.7mm
• Applicable blade : 22L
• Shim : STM22T3L
• Screw : M4*14
• Lateral screw : M3*8C
• Wrench : T15
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * SEL3232P22 Lathe Threading Tools

1 * STM22T3L Shim

1 * "T" Type wrench

1 * M4*14 Type Screw

1 *  M3*8C Lateral screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise threading, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND  SEL3232P22 Lathe Threading Tools SEL3232P22 SEL3232  SEL3232 P22 CNC Cutter Lathe Shank Carbide Insert

Durable SEL3232P22 CNC Lathe Threading Tool – Ideal for External Threading with 22EL Inserts

SEL3232P22 CNC Cutter Holder for External Threading – Complete Tool Set with Accessories

5-Point Description

1. Left-Cut External Threading Tool: The SEL3232P22 is designed for high-precision external threading with a left-hand cutting direction, ensuring clean and smooth threads on CNC lathe operations, even in tight spaces.

2. Precision and Versatility: Featuring a 32mm tool nose height and 170mm tool length, this threading tool is optimized for a wide range of threading applications and is compatible with 22EL inserts for consistent cutting performance.

3. Robust and Durable: With a sturdy 32mm body width, this lathe tool is made to withstand the rigors of continuous use, providing reliable performance in both production and prototype work.

4. Complete Kit for Easy Setup: The SEL3232P22 comes with all necessary components, including the tool holder, STM22T3L shim, M4*14 screws, M3*8C lateral screw, and a T15 wrench, ensuring a quick and hassle-free setup.

5. Professional-Grade Quality: Crafted from high-quality materials, this lathe threading tool is built for professionals looking for precision, durability, and ease of use in their CNC machining operations.
