Buy SER1616H16-V CNC External Threading Tool Holder – Durable, Precision Machining Tools
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

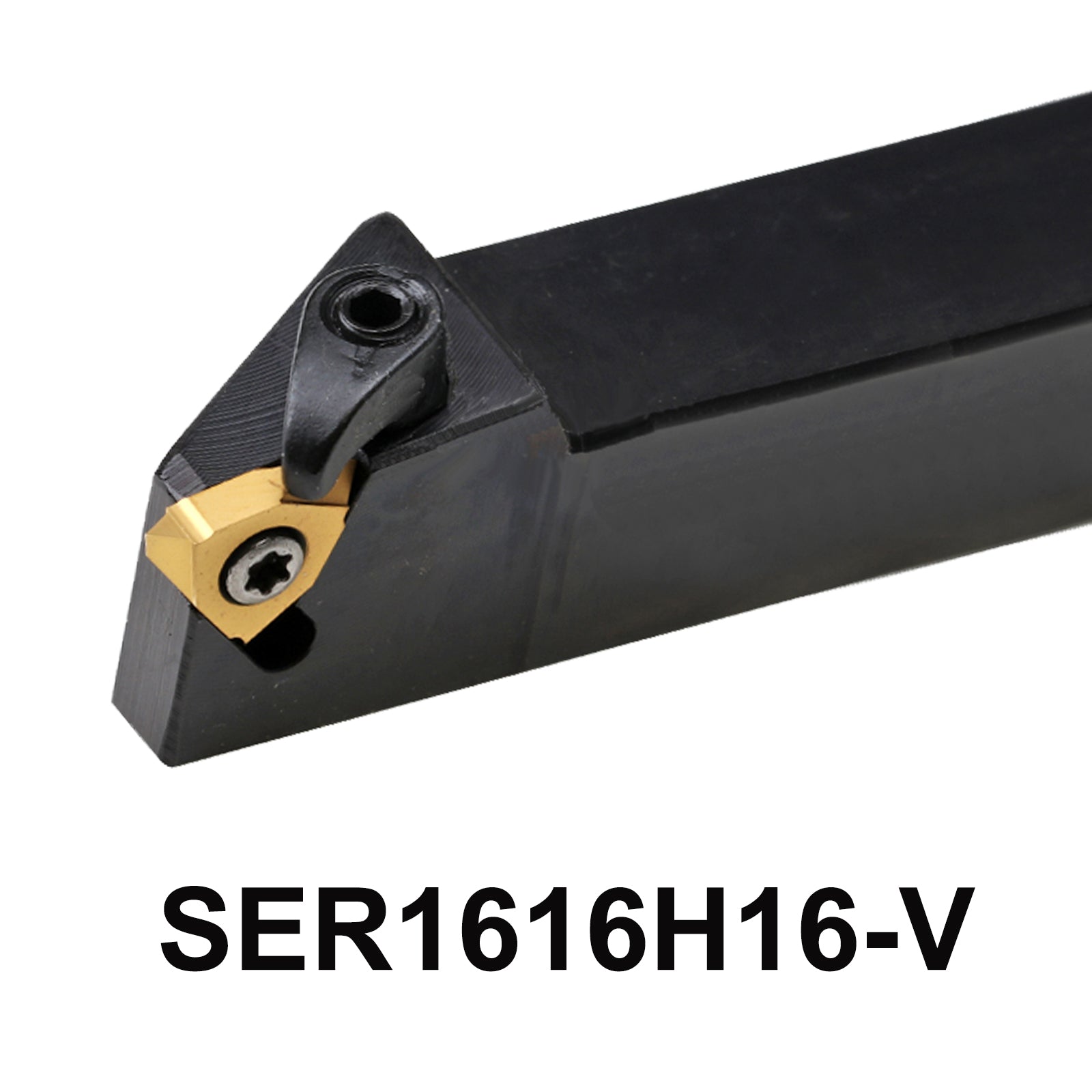

The SER1616H16-V CNC External Threading Tool Holder is designed for high-precision external thread cutting on CNC lathes.
Featuring a 100mm length and 16mm body width, it is optimized for use with MTTR32 inserts.The tool holder's right-cut cutting direction and side length of 16mm triangle blade ensure smooth and accurate thread cutting.
Product parameters:
-
Tool Holder Model: SER1616H16-V
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : External thread
- Cutting direction : Right cut
- Height of tool nose : 16mm
- Width of body of cutting tool : 16mm
- Length of cutting tool : 100mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
- Applicable blade : MTTR32
- Clamp : HI1808
- Screw : M4*10
- Stud screw : MI0520
- Wrench : T15 L2.5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SER1616H16-V Lathe Threading Tools
1 * HI1808 Clamp
1 * "T" Type wrench
1 * "L" Type wrench
1 * M4*10 Type Screw
1 * MI0520 Stud screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise threading, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SER1616H16-V External Threading Turning Tools Holder SER1616H16-V SER1616 H16 V CNC Cutter Lathe Shank Carbide Insert
High-Quality SER1616H16-V Tool Holder for External Thread Cutting with Reliable Performance
Versatile, Easy-to-Use CNC Tool Holder – Ideal for Precision Threading and Cost-Effective Machining
5-Point Description
-
Precision External Thread Cutting: The SER1616H16-V tool holder is engineered for external thread cutting, delivering smooth, precise threads with every pass. Perfect for professional CNC lathe applications where accuracy is paramount.
-
Durable and Reliable: Crafted from high-quality materials, this CNC tool holder offers long-lasting performance, minimizing tool wear and downtime during production, even under heavy use.
-
Easy Setup and Compatibility: The tool holder comes with all the necessary components including a screws (M4*12), and a T15 wrench. It’s designed to accommodate 16ER inserts, making it a versatile addition to your CNC machining toolbox.
-
Optimized for Right Cut Operations: Designed for right-cut operations, this tool holder ensures smooth cutting and excellent chip control, helping improve overall efficiency and reduce scrap material.
-
Compact and Efficient Design: With a tool height of 16mm, a body width of 16mm, and a length of 100mm, the SER1616H16-V offers a compact yet robust solution for your threading tasks, making it suitable for a wide range of machining environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
