Description:

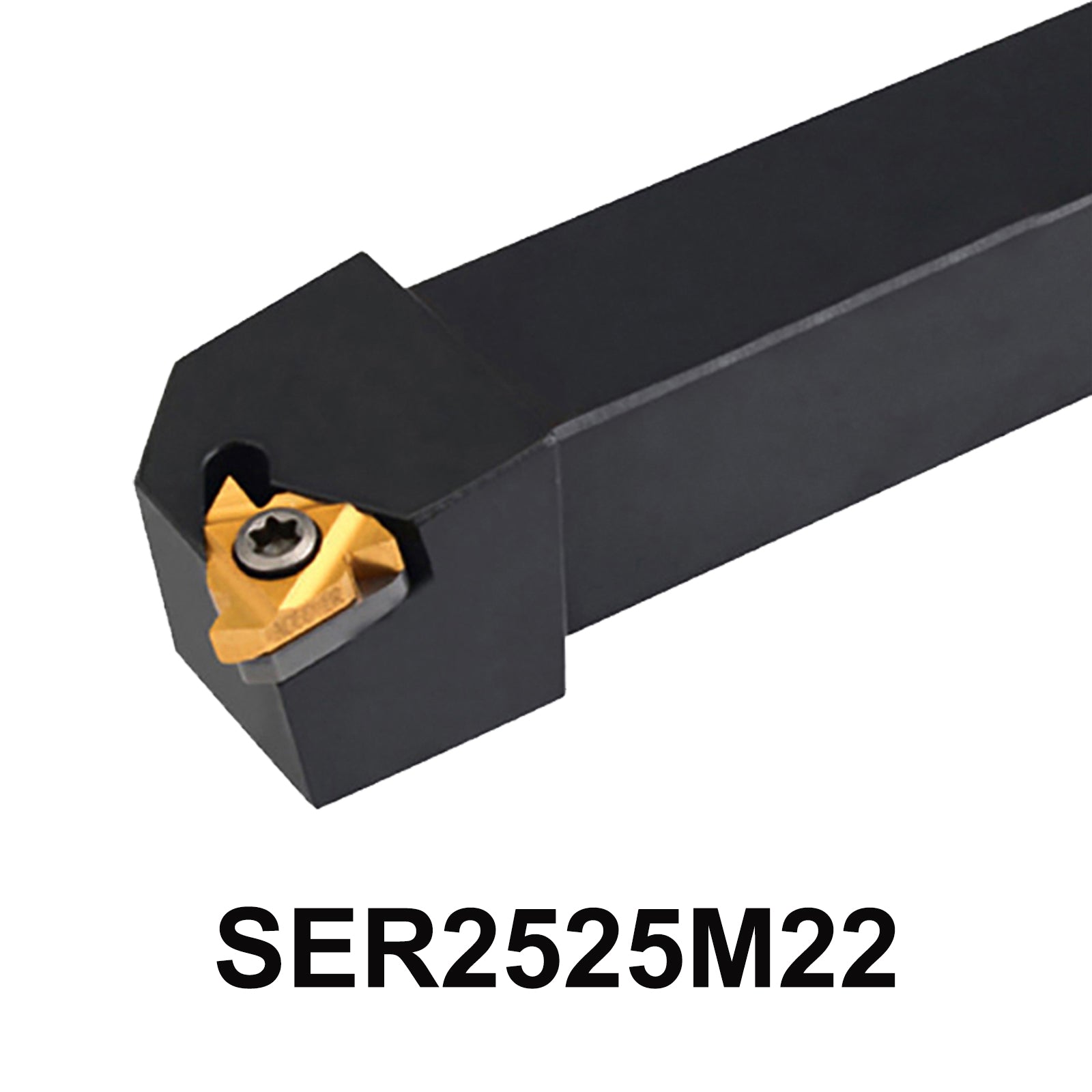

The SER2525M22 Thread Tool For Lathe  is designed to provide precision and durability for external threading operations on CNC lathes

Featuring a 150mm length and 25mm body width, it is optimized for use with 22ER inserts.The tool holder's right-cut cutting direction and side length of 22mm triangle blade ensure smooth and accurate thread cutting.

Product parameters:

• Tool Holder Model: SER2525M22

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : External thread
• Cutting direction : Right cut
• Height of tool nose : 25mm
• Width of body of cutting tool : 25mm
• Length of cutting tool : 150mm
• Size of blade :
• 1.Side length of traingle : 22mm
• 2.Incircle : 12.7mm
• Applicable blade : 22R
• Shim : STM22T3R
• Screw : M4*14
• Lateral screw : M3*8C
• Wrench : T15
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * SER2525M22 Thread Tool For Lathe

1 * STM22T3R Shim

1 * "T" Type wrench

1 * M4*14 Type Screw

1 *  M3*8C Lateral screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise threading, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND  SER2525M22 External Threading Turning Tools Holder SER2525M22 SER2525  SER2525 M22 CNC Cutter Lathe Shank Carbide Insert

Key Features of the SER2525M22 CNC Lathe Thread Cutter

Why Choose the SER2525M22 for Your CNC Threading Operations

5-Point Description

1. Right-Cut External Threading
   The SER2525M22 is designed for right-cut external threading, delivering high precision and smooth, uniform threads for a variety of applications in CNC lathe operations.

2. Durable and Sturdy Construction
   With a 25mm tool nose height and a 25mm body width, this tool offers enhanced stability and strength, ensuring long-lasting performance and precision throughout your threading tasks.

3. Comprehensive Tooling Kit Included
   The package comes with everything you need for easy installation and quick setup: tool holder, STM22T3R shim, M4*14 screws, M3*8C lateral screw, and a T15 wrench.

4. Compatible with 22ER Inserts
   The SER2525M22 is fully compatible with 22ER inserts, making it ideal for threading a wide range of materials with consistent quality.

5. 150mm Cutting Length for Extended Reach
   With a 150mm cutting length, this tool provides ample reach for versatile threading tasks, allowing you to tackle both short and long-threaded applications with ease.
