Description:

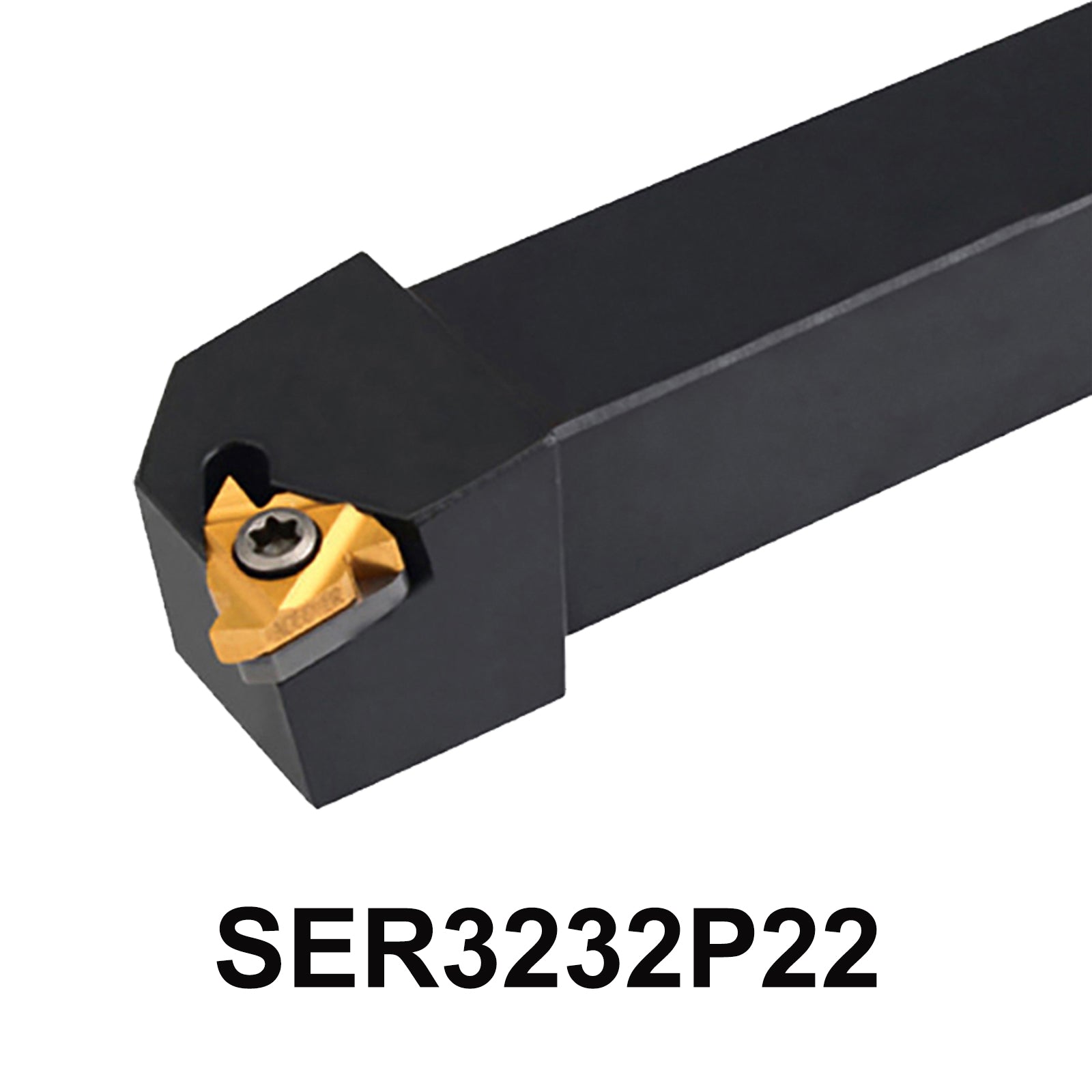

The SER3232P22 Thread Turning Tool holder  is designed to provide precision and durability for external threading operations on CNC lathes

Featuring a 170mm length and 32mm body width, it is optimized for use with 22ER inserts.The tool holder's right-cut cutting direction and side length of 22mm triangle blade ensure smooth and accurate thread cutting.

Product parameters:

• Tool Holder Model: SER3232P22

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : External thread
• Cutting direction : Right cut
• Height of tool nose : 32mm
• Width of body of cutting tool : 32mm
• Length of cutting tool : 170mm
• Size of blade :
• 1.Side length of traingle : 22mm
• 2.Incircle : 12.7mm
• Applicable blade : 22R
• Shim : STM22T3R
• Screw : M4*14
• Lateral screw : M3*8C
• Wrench : T15
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * SER3232P22 Thread Turning Tool holder

1 * STM22T3R Shim

1 * "T" Type wrench

1 * M4*14 Type Screw

1 *  M3*8C Lateral screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise threading, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND  SER3232P22 Thread Turning Tool holder SER3232P22 SER3232  SER3232 P22 CNC Cutter Lathe Shank Carbide Insert

Key Features of the SER3232P22 External Thread Turning Tool Holder

Why Choose the SER3232P22 for Your CNC Threading Projects?

5-Point Description

1. Superior Precision for External Threading – The SER3232P22 tool holder is designed for high-precision external threading with right-hand cutting direction, ensuring clean and accurate thread profiles.

2. Durable and Robust Design – With a body width of 32mm and a tool length of 170mm, this CNC lathe tool holder is built to withstand demanding cutting tasks, offering long-lasting performance and minimal wear.

3. Comprehensive Package – The tool comes complete with essential accessories, including the Shim (STM22T3R), M414 screws, M38C lateral screws, and a T15 wrench, providing everything needed for a smooth setup.

4. Compatible with 22ER Inserts – This tool holder is specially designed to accommodate 22ER inserts, expanding the range of applications and ensuring efficient thread cutting in various materials.

5. Efficient for Various CNC Applications – Ideal for external threading in a wide array of machining operations, the SER3232P22 provides reliable performance for professionals seeking precision and versatility in their CNC lathe tooling.
