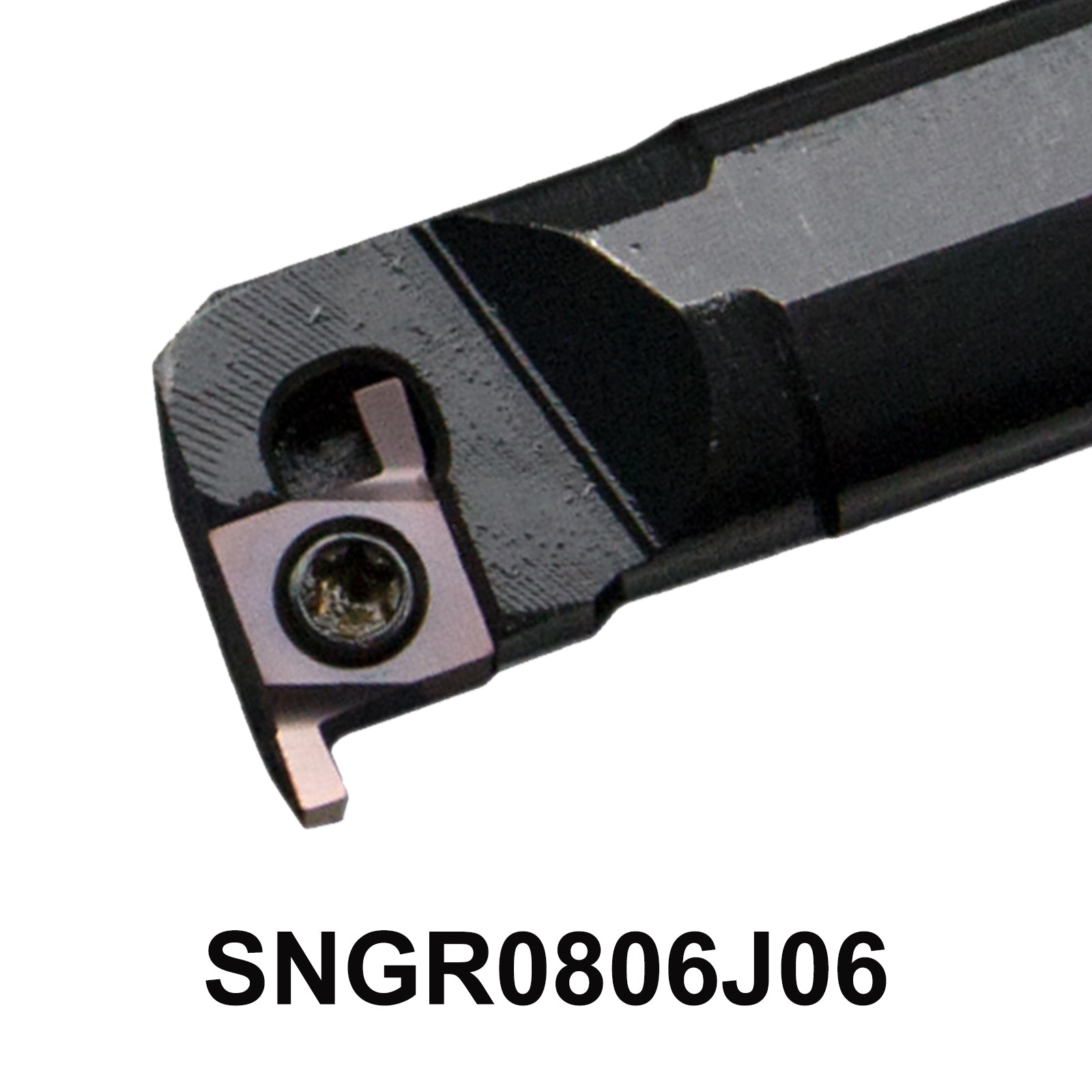

SNGR0806J06 Internal Grooving Tool Holder – High-Quality CNC Lathe Cutter with 2mm Cutting Depth
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SNGR0806J06 Internal Grooving Tool is designed to bring precision and reliability to your CNC lathe operations.
Engineered for precision and durability, this tool holder boasts a total length of 110mm, a shank size of 8mm, and a cutting depth of up to 2mm.It is compatible with the 6GR inserts, ideal for creating smooth, clean grooves in various materials
Product parameters:
-
Tool Holder Model: SNGR0806J06
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 110mm
- Shank : 8mm
- Tmax : 2mm
-
Applicable blade : 6GR
-
Screw : M2.2*4
- Wrench : T7

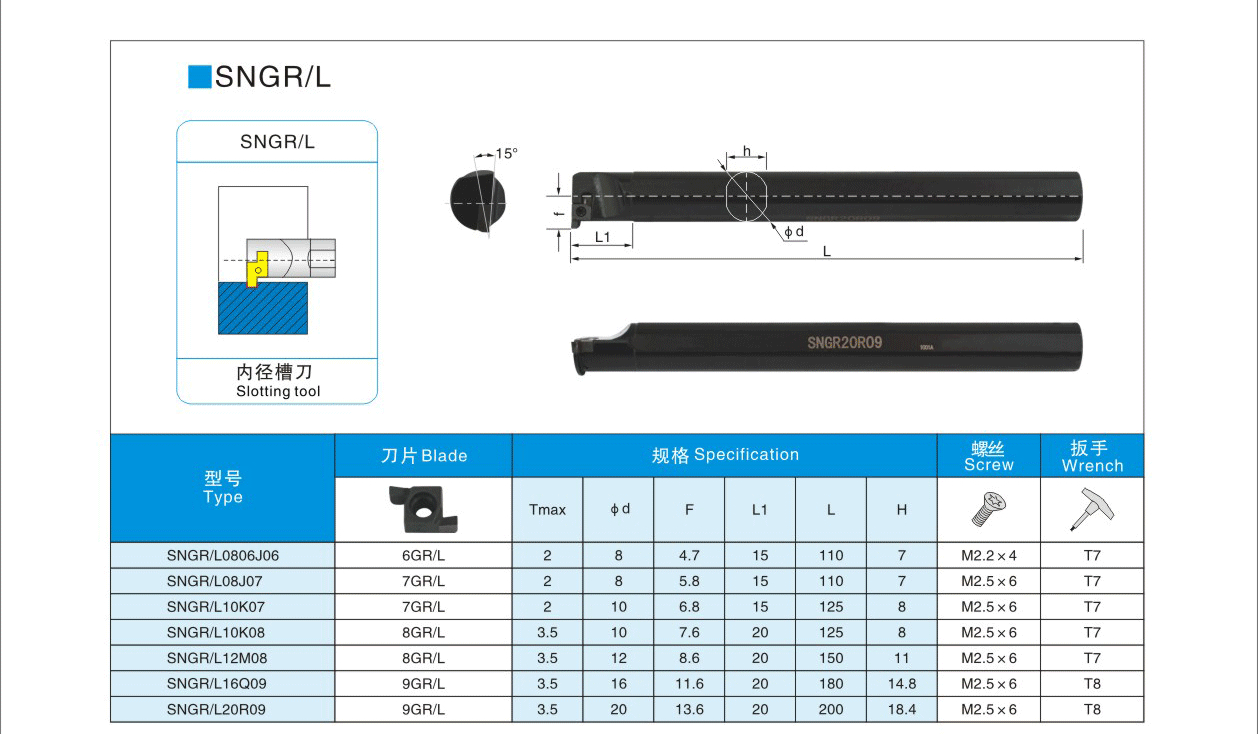

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNGR0806J06 Internal Grooving Tool
1 * "T" Type wrench
1 * M2.2*4 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNGR0806J06 Internal Grooving Tool SNGR0806J06 SNGR SNGR 0806 J06 CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Top Features of the SNGR0806J06 Internal Grooving Tool – Precision, Durability, and Versatility
-
Why Choose the SNGR0806J06 Internal Grooving Tool for Your CNC Lathe Projects?
5-Point Description
-
Precision Grooving for Exact Results
The SNGR0806J06 Internal Grooving Tool is engineered to achieve precise grooving with a cutting depth of up to 2mm. Whether you're working with tough materials or fine details, this tool ensures high-precision cuts every time. -
Durable and Reliable Construction
With a total length of 110mm and a sturdy 8mm shank, this tool holder is built to withstand the rigorous demands of CNC machining. Its strong and durable construction guarantees long-lasting performance, reducing the need for frequent tool replacements. -
Quick Installation and User-Friendly Design
This tool is delivered with everything you need to get started right away. The M2.2*4 screws and T7 wrench included in the package make installation quick and hassle-free, ensuring you spend less time setting up and more time cutting. -
Versatile Compatibility with 6GR Inserts
The SNGR0806J06 is compatible with the high-performance 6GR inserts, which are designed to provide superior cutting efficiency and versatility. This compatibility makes the tool ideal for a wide range of CNC lathe operations. -
High-Quality CNC Tool for Professionals
Whether you're a professional machinist or a hobbyist, the SNGR0806J06 Internal Grooving Tool offers unbeatable quality and performance. It’s the perfect tool for achieving smooth, clean grooves in internal machining applications, boosting your productivity and cutting efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
