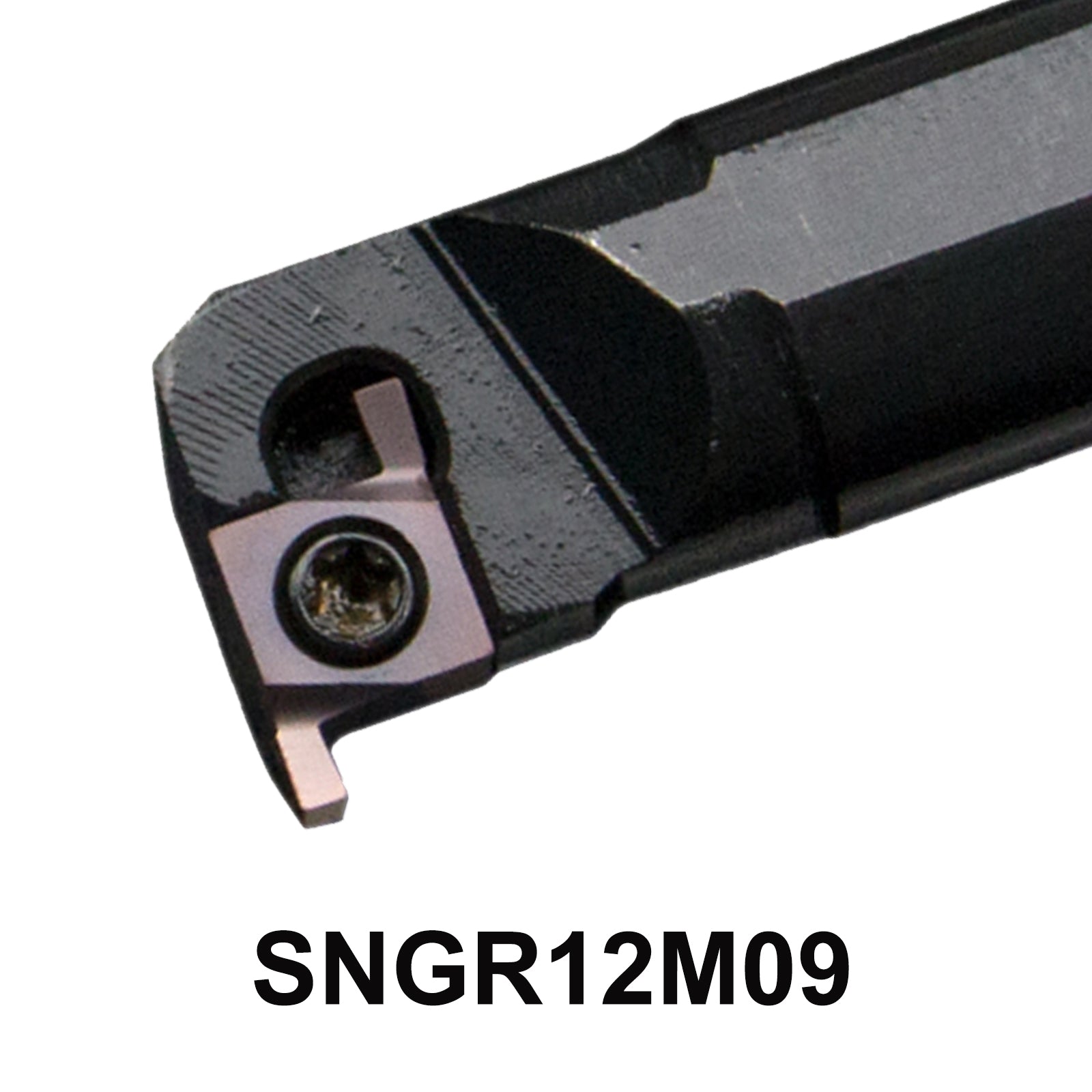

SNGR12M09 Internal Groove Cutting Tool for CNC Lathe – 3.5mm Cutting Depth, 9GR Insert Compatible
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SNGR12M09 Internal Groove Cutting Tool is designed to bring precision and reliability to your CNC lathe operations.
Engineered for precision and durability, this tool holder boasts a total length of 150mm, a shank size of 12mm, and a cutting depth of up to 3.5mm.It is compatible with the 9GR inserts, ideal for creating smooth, clean grooves in various materials
Product parameters:
-
Tool Holder Model: SNGR12M09
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 150mm
- Shank : 12mm
- Tmax : 3.5mm
-
Applicable blade : 9GR
-
Screw : M2.5*6
- Wrench : T7
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNGR12M09 Internal Groove Cutting Tool
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNGR12M09 Internal Groove Cutting Tool SNGR12M09 SNGR SNGR12M 09 CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
High-Performance Internal Groove Cutter – 3.5mm Cutting Depth with 9GR Insert Compatibility
-
Complete Tool Set – Includes Tool Holder, M2.5 Screws, and T7 Wrench for Hassle-Free Setup
5-Point Description
-
Precision Internal Grooving: The SNGR12M09 internal groove cutting tool is designed for high-precision internal grooving applications on CNC lathes. With a cutting depth (Tmax) of 3.5mm and a shank diameter of 12mm, it provides smooth and accurate cuts, ensuring high-quality results with minimal effort.
-
Superior Durability & Performance: Crafted from high-quality materials, this CNC lathe cutter holder features excellent wear resistance and longevity. It is designed to handle rigorous machining operations while maintaining cutting precision, helping extend tool life and reducing downtime.
-
Optimized for 9GR Inserts: The SNGR12M09 is specifically designed for use with 9GR inserts, ensuring compatibility and enhancing cutting performance. These inserts provide exceptional cutting edges for smooth finishes and efficient chip removal, making the tool ideal for internal groove cutting on a variety of materials.
-
Easy Installation with Included Accessories: This tool holder package includes M2.5*6 screws and a T7 wrench, making the installation process quick and seamless. With everything you need to set up your tool, you can reduce setup time and focus on delivering high-quality work.
-
Ideal for Versatile CNC Applications: Whether you’re working with metals or other tough materials, the SNGR12M09 internal groove cutting tool delivers reliable performance. Its precision design makes it perfect for a wide range of CNC machining applications, ensuring consistent, clean results in every operation.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
