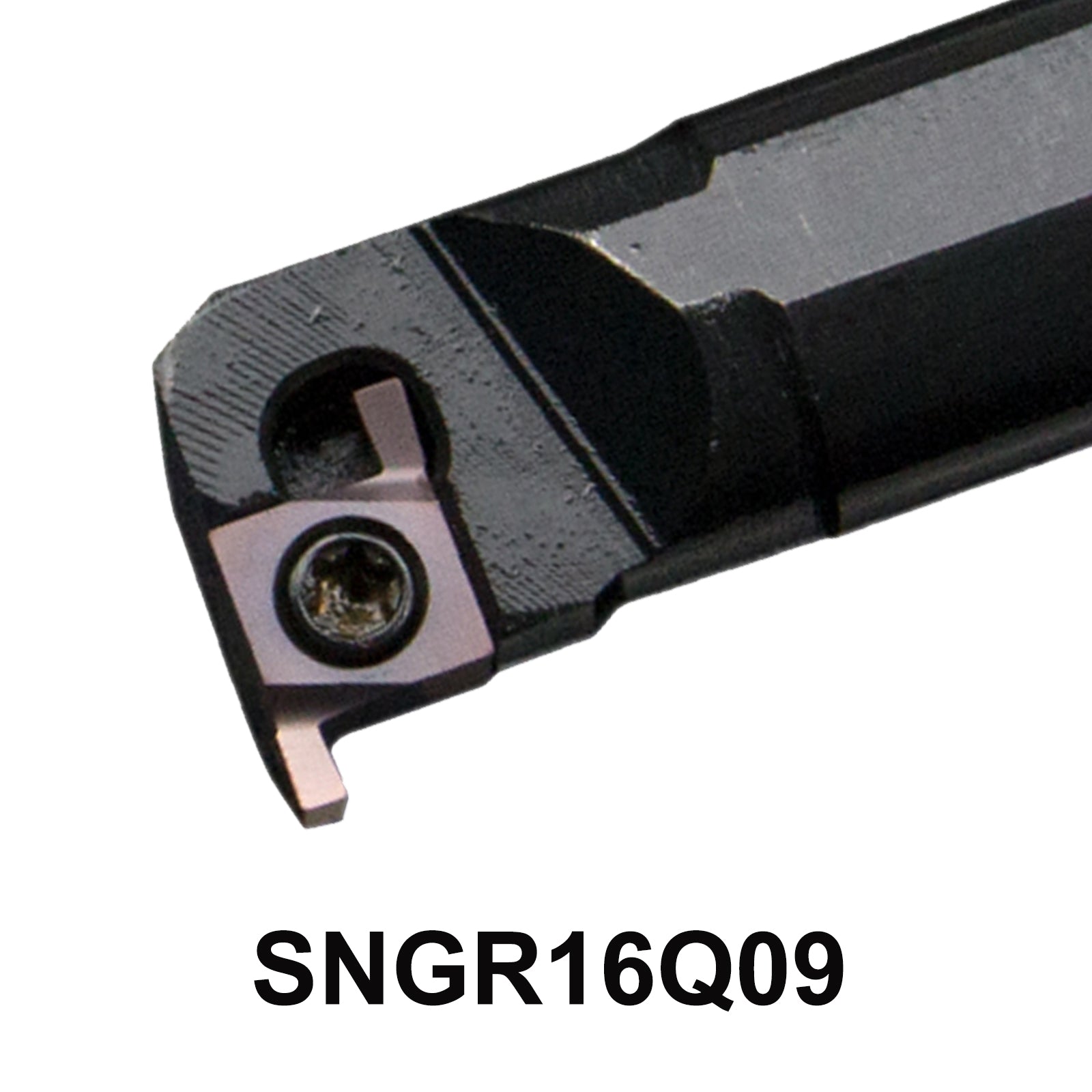

SNGR16Q09 Internal Grooving Toolholder for CNC Lathes | 3.5mm Cutting Depth, Compatible with 9GR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SNGR16Q09 Internal Grooving Holders is designed to bring precision and reliability to your CNC lathe operations.
Engineered for precision and durability, this tool holder boasts a total length of 180mm, a shank size of 16mm, and a cutting depth of up to 3.5mm.It is compatible with the 9GR inserts, ideal for creating smooth, clean grooves in various materials
Product parameters:
-
Tool Holder Model: SNGR16Q09
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 180mm
- Shank : 16mm
- Tmax : 3.5mm
-
Applicable blade : 9GR
-
Screw : M2.5*6
- Wrench : T7
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNGR16Q09 Internal Grooving Holders
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNGR16Q09 Internal Grooving Holders SNGR16Q09 SNGR SNGR16 Q09 CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Precision Internal Grooving Toolholder | SNGR16Q09 | Ideal for CNC Machining
-
Key Features of the SNGR16Q09 Internal Grooving Holder
5-Point Description
-
Precision Internal Grooving: The SNGR16Q09 Internal Grooving Holder is designed for high-precision internal grooving operations. With a total length of 180mm and a shank diameter of 16mm, it provides the stability and accuracy needed to achieve clean, precise internal grooves, perfect for intricate machining projects.
-
Enhanced Cutting Depth: With a maximum cutting depth (Tmax) of 3.5mm, this toolholder allows for efficient internal grooving in a variety of materials, offering versatility for a wide range of CNC machining tasks. Achieve deep, consistent cuts without compromising performance or tool life.
-
Durable and High-Quality Construction: Built from high-quality, wear-resistant materials, the SNGR16Q09 ensures long-lasting durability. It is engineered to withstand tough working conditions, offering reliable performance even in demanding machining environments, reducing downtime and increasing productivity.
-
Complete Kit for Easy Setup: The package includes the SNGR16Q09 toolholder, M2.5*6 screws, and a T8 wrench. These essential accessories make installation quick and easy, ensuring a hassle-free setup process, and allowing you to focus on your machining tasks without delay.
-
Compatible with 9GR Inserts: The SNGR16Q09 is specifically designed to work with 9GR inserts, providing excellent cutting performance. This compatibility helps optimize tool life, reduce wear, and enhance cutting efficiency, allowing for smooth operation and a superior finish on your workpieces.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
