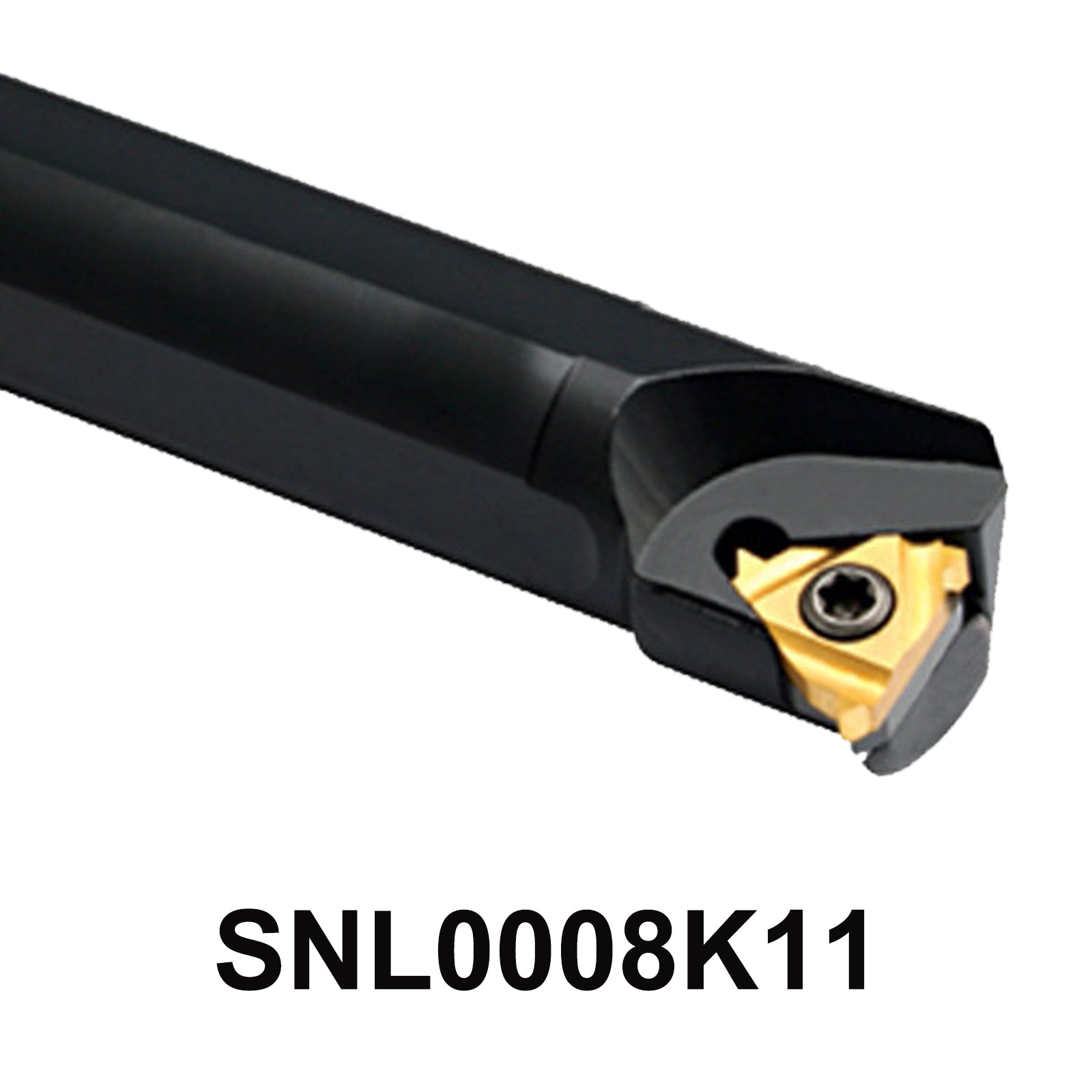

SNL0008K11 CNC Lathe Thread Tool – Left Cut Internal Thread Cutter with 11NL Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNL0008K11 Thread Tool For Lathe, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 11mm and a cutting length of 125mm, compatible with 11NL inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNL0008K11
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin :11mm
- Φd :8mm
- Width of body of cutting tool : 8mm
- Length of cutting tool : 125mm
- Size of blade :
- 1.Side length of traingle : 11mm
- 2.Incircle : 6.35mm
-
Applicable blade : 11NL
- Screw : M2.5*7
- Wrench : T8
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNL0008K11 Thread Tool For Lathe
1 * "T" Type wrench
1 * M2.5*7 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0008K11 Internal Threading Turning Tools Holder SNL0008K11 SNL0008 SNL0008 K11 CNC Cutter Lathe Shank Carbide Insert
-
High-Quality CNC Lathe Thread Tool - Left Cut, Designed for 11NL Inserts
-
Durable and Efficient SNL0008K11 Thread Toolholder for Internal Thread Cutting
5-Point Description
-
Precision Internal Thread Cutting: The SNL0008K11 Thread Tool is engineered for high-precision internal thread cutting operations on CNC lathes, offering smooth and consistent thread profiles for a variety of applications.
-
Left-Cut Design: This tool features a left-hand cutting direction, which makes it ideal for specific threading requirements, ensuring precise and efficient threading for both standard and complex operations.
-
Optimized for 11NL Inserts: Compatible with the 11NL inserts, the toolholder maximizes performance by providing superior cutting stability and tool life, enhancing both efficiency and the overall quality of your machined threads.
-
Durable Construction: The tool is made from high-quality materials, ensuring excellent wear resistance and a long service life. With a robust design, this tool is built to withstand demanding CNC lathe operations.
-
Complete Package: The package includes the tool holder, appropriate screws (M2.57), lateral screw (M38C), and a T8 wrench, ensuring that you have everything needed for quick setup and reliable performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
