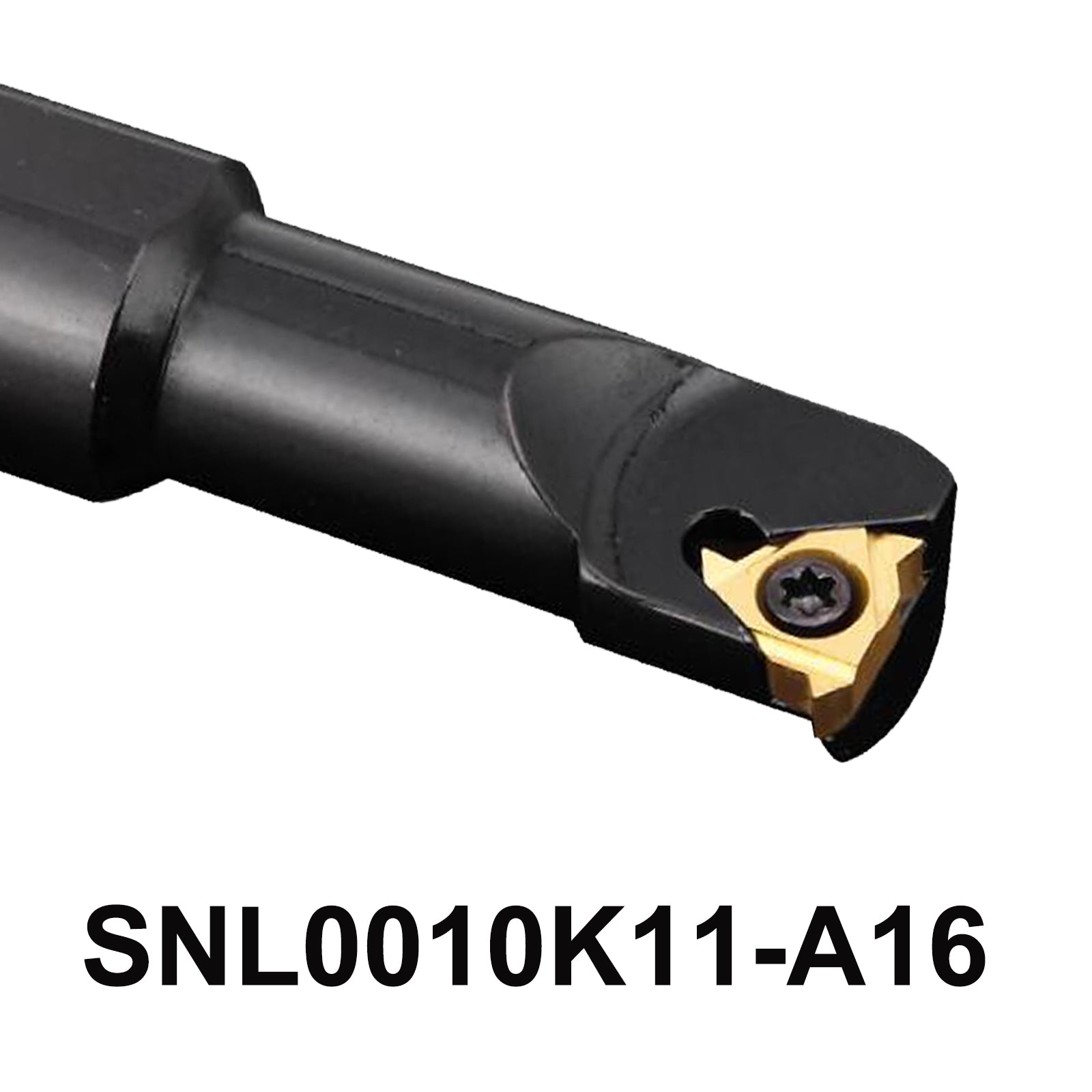

SNL0010K11-A16 Internal Threading Tool Holder for CNC Lathe – High Precision Left-Cut Tool with 11NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SNL0010K11-A16 Internal Threading Turning Tools is a high-quality CNC lathe cutter designed for right-hand internal thread cutting.
Featuring a tool length of 125mm and a body width of 10mm, compatible with 11NL inserts,this tool is built to withstand rigorous machining operations.
Product parameters:
-
Tool Holder Model: SNL0010K11-A16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin : 13mm
- Φd :16mm
- Width of body of cutting tool : 10mm
- Length of cutting tool : 125mm
-
Applicable blade : 11NL
- Screw : M2.5*6
- Wrench : T8
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNL0010K11-A16 Internal Threading Turning Tools
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise threading, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0010K11-A16 Internal Threading Turning Tools Holder SNL0010K11-A16 SNL0010 SNL0010K11 A16 CNC Cutter Lathe Shank Carbide Insert
-
Key Features of the SNL0010K11-A16 CNC Lathe Threading Tool
-
Why Choose the SNL1010K11-A16 for Your CNC Internal Threading Applications?
5-Point Description
-
Precision Internal Thread Cutting – The SNL0010K11-A16 is designed for right-hand internal thread cutting, delivering clean, accurate, and smooth threads for a variety of materials.
-
Durable and Sturdy Design – With a 10mm body width and 125mm length, this tool holder is built to withstand demanding machining conditions, ensuring longevity and consistent performance.
-
Screw Compression Type Pressing Plate – The screw compression mechanism provides optimal holding force, minimizing tool movement during cutting and ensuring accurate threading.
-
Compatible with 11NL Inserts – Specifically designed for 11NL inserts, this tool holder maximizes cutting efficiency and versatility for a wide range of internal threading tasks.
-
Complete Package for Easy Setup – The package includes the necessary M2.5*6 screws and a T8 wrench, allowing for quick and hassle-free tool installation and setup, so you can get to work immediately.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
