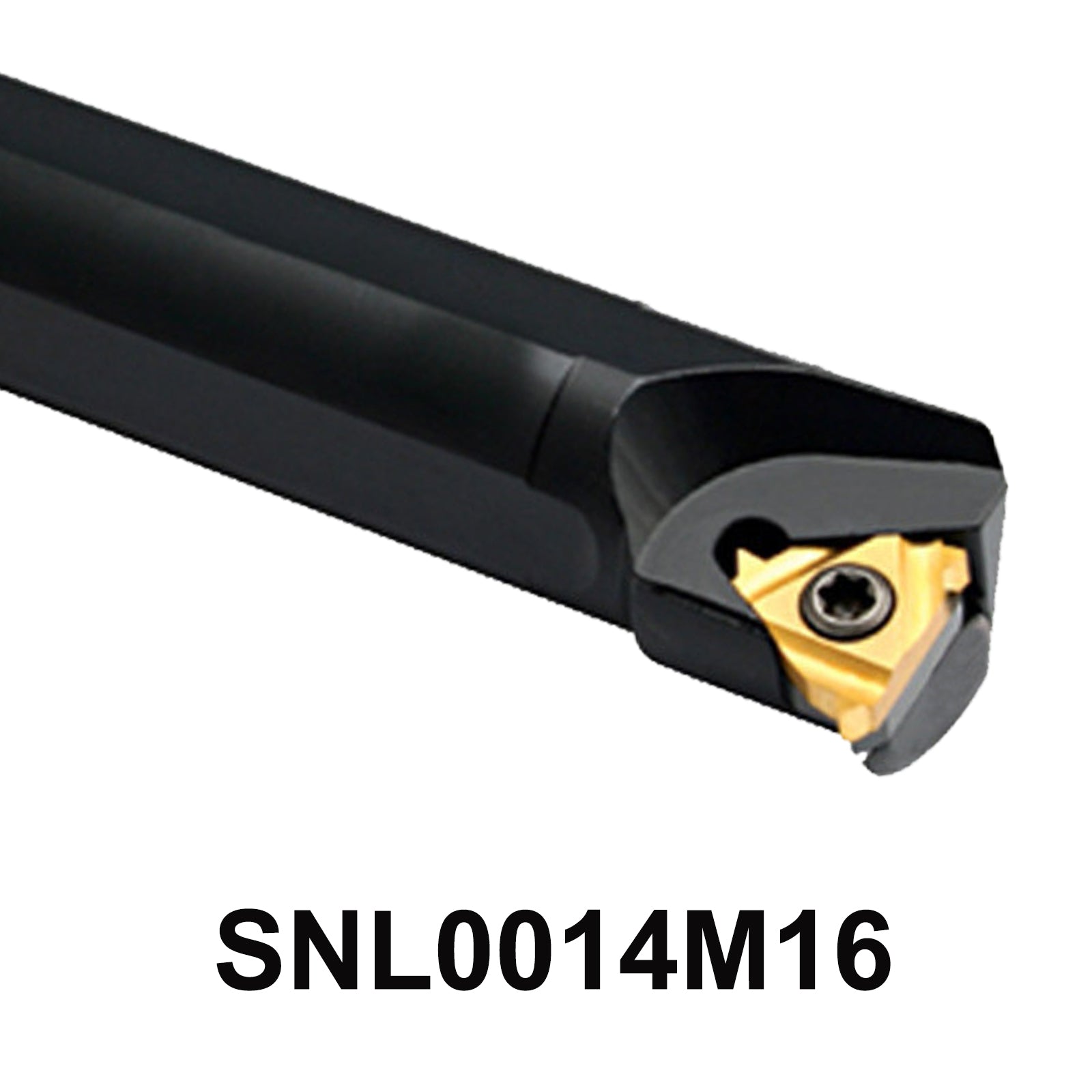

SNL0014M16 Lathe Threading Tools
SNR SNL

SNL0014M16 CNC Lathe Tool Holder with Left Cut & Screw Compression | High-Quality 16NL Insert Threading Tool

$14.57 USD
Shipping calculated at checkout.

cnchome-beyond assurance

1.Safe payments Payment methods used by many international shoppers
2.Security & privacy We respect your privacy so your personal details are safe
3.Buyer protection Get your money back if your order isn't delivered by estimated date or if you're not satisfied with your order

4.Free shipping

american expressmasterpaypalvisa
SKU: SNL0014M16
Availability : In Stock Pre order Out of stock
Tags: SNL0014M16
Description

Description:



Introducing the SNL0014M16 Lathe Threading Tools, expertly crafted for precision machining and reliability in internal threading applications

This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 17mm and a cutting length of 150mm, compatible with 16NL inserts ,allowing for accurate and efficient internal cuttings


Product parameters:



  • Tool Holder Model:  SNL0014M16
  • Tool Holder Material : Carbide Steel, Carbon Steel
  • Model of Pressing plate :  Screw compession type
  • Thread form : Internal thread
  • Cutting direction : Left cut
  • Height of tool nose : 00mm
  • ΦDmin :17mm
  • Φd :14mm
  • Width of body of cutting tool : 14mm
  • Length of cutting tool : 150mm
  • Size of blade :
  • 1.Side length of traingle : 16mm
  • 2.Incircle : 9.525mm
  • Applicable blade : 16NL
  • Screw : M3.5*10
  • Wrench : T15
  • Lateral screw : M3*8C
  • Detailed Dimensions of the tool holder : as pictured



Package Contents:



1 * SNL0014M16 Lathe Threading Tools

1 * "T" Type wrench

1 * M3.5*10 Type Screw

1 * M3*8C Type Lateral Screw



Features:



1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise grooving, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench





BEYOND SNL0014M16 Lathe Threading Tools Holder SNL0014M16 SNL0014 SNL0014 M16 CNC Cutter Lathe Shank Carbide Insert


  • SNL0014M16 CNC Lathe Threading Tool Holder with Screw Compression & Left-Cut Direction



  • Why Choose the SNL0014M16 Lathe Threading Tool Holder?



5-Point Description

  1. Precision Engineering for Internal Threading – The SNL0014M16 threading tool holder is designed to deliver smooth, accurate internal threads, ideal for a range of CNC lathe operations.
  2. Left-Cut Threading Direction – Optimized for left-cut operations, ensuring clean thread formation and reducing tool wear.
  3. Comprehensive Kit for Easy Use – Comes complete with a tool holder, M3.5 x 10 screws, T15 wrench, and M3 x 8C lateral screws for quick setup and convenience.
  4. Durable & High-Quality Components – Constructed from high-grade materials, offering exceptional durability for continuous use in demanding machining environments.
  5. Compatible with 16NL Inserts – Pre-configured for use with 16NL inserts, making it a versatile tool for a variety of threading applications.
