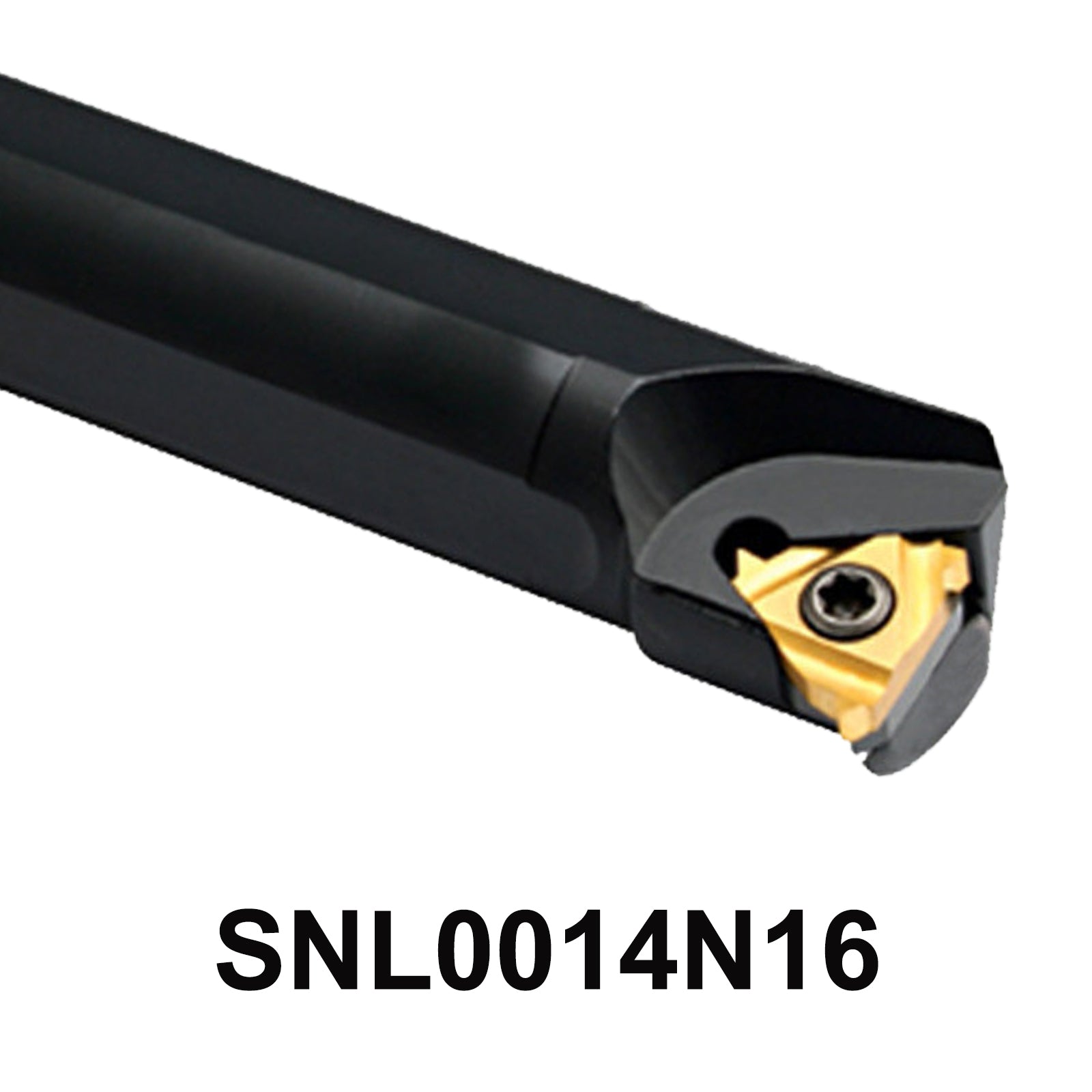

SNL0014N16 Internal Threading Tool - CNC Lathe Cutter for Left-Hand Threading
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNL0014N16 Internal Threading tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 17mm and a cutting length of 160mm, compatible with 16NL inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNL0014N16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin :17mm
- Φd :14mm
- Width of body of cutting tool : 14mm
- Length of cutting tool : 160mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NL
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNL0014N16 Internal Threading tool
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0014N16 Internal Threading tool SNL0014N16 SNL0014 SNL0014 N16 CNC Cutter Lathe Shank Carbide Insert
-
High-Performance Internal Threading with SNL0014N16 Tool Holder
-
Left-Hand Cut, Durable Design for Internal Thread Cutting
-
Complete Kit with Tool Holder, Screws, and Wrenches for Easy Setup
-
Compact and Precise CNC Threading Tool for Efficient Results
-
Compatible with 16NL Inserts for Reliable Thread Cutting
-
Enhanced Cutting Efficiency with Quality Blade and Tool Holder
5-Point Description
-
Precision Internal Thread Cutting:
The SNL0014N16 is designed specifically for internal thread cutting with a left-hand cut direction, ensuring high precision and accuracy for your machining needs. Ideal for creating clean, consistent internal threads. -
Compact and Efficient Design:
With a tool length of 160mm, a ΦDmin of 17mm, and a body width of 14mm, the SNL0014N16 threading tool provides excellent maneuverability and stability, allowing for smooth cutting in confined spaces or small internal diameters. -
Durable and High-Quality Cutting Blade:
The tool is equipped with a high-quality triangular blade with a side length of 16mm and an incircle of 9.525mm, providing sharp cutting edges and long-lasting durability for extended tool life. -
Complete Installation Kit:
This product comes with everything needed for a quick and simple setup: M3.5*10 screws, M3*8C lateral screw, and a T15 wrench. You can start using this tool right out of the box with minimal hassle. -
Compatible with 16NL Inserts:
The SNL0014N16 tool holder is designed to work seamlessly with 16NL inserts, offering exceptional versatility and reliability for a wide range of internal threading applications, from light to heavy machining.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
