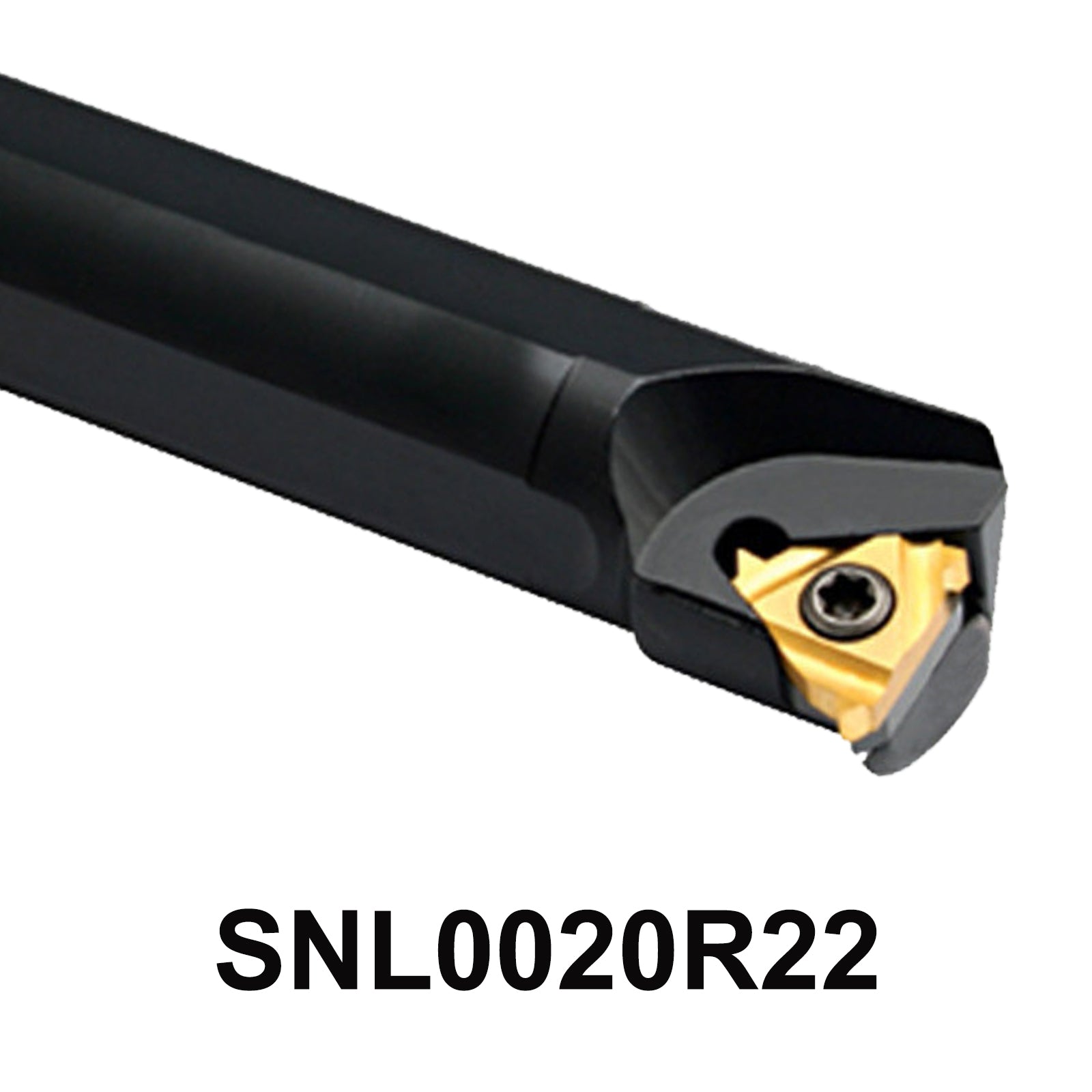

SNL0020R22 CNC Internal Threading Tool – Left Cut with 22NL Inserts for Precision Threading
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNL0020R22 Internal Threading tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 24mm and a cutting length of 200mm, compatible with 22NL inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNL0020R22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin :24mm
- Φd :20mm
- Width of body of cutting tool : 20mm
- Length of cutting tool : 200mm
- Size of blade :
- 1.Side length of traingle : 22mm
- 2.Incircle : 12.7mm
-
Applicable blade : 22NL
- Shim: STM22T3L
- Screw : M4*14
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0020R22 Internal Threading tool
1 * STM22T3L Shim
1 * "T" Type wrench
1 * M4*14 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0020R22 Internal Threading tool SNL0020R22 SNL0020 SNL0020 R22 CNC Cutter Lathe Shank Carbide Insert
-
Top-Performance CNC Threading Tool for Internal Threads with Left Cut Direction
-
Key Features of the SNL0020R22 CNC Internal Threading Tool
5-Point Description
-
Optimized for Left-Cut Internal Threading: The SNL0020R22 CNC Threading Tool is engineered for left-cut internal threading operations, providing precise and smooth thread profiles. Ideal for machining jobs that require accuracy and consistent thread quality.
-
Durable and Robust Design: Featuring a 20mm body width and a 200mm length, this tool holder ensures high rigidity and durability, withstanding demanding machining conditions for extended tool life and consistent results.
-
Precision Inserts for Superior Cutting Performance: The tool is compatible with 22NL inserts, which have a 22mm side length and 12.7mm incircle, designed to deliver optimal cutting performance and reduce tool wear. Perfect for achieving clean, accurate internal threads.
-
Complete Tooling Package for Convenience: This tool comes with the complete setup, including M4*14 screws, M3*8C lateral screw, STM22T3L shim, and a T15 wrench, ensuring quick and hassle-free assembly and use.
-
Versatile Application for Multiple Machining Projects: Suitable for a wide range of CNC lathe threading tasks, the SNL0020R22 offers unmatched precision and performance, making it a must-have for professionals seeking reliable and consistent internal threading solutions.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
