Description:

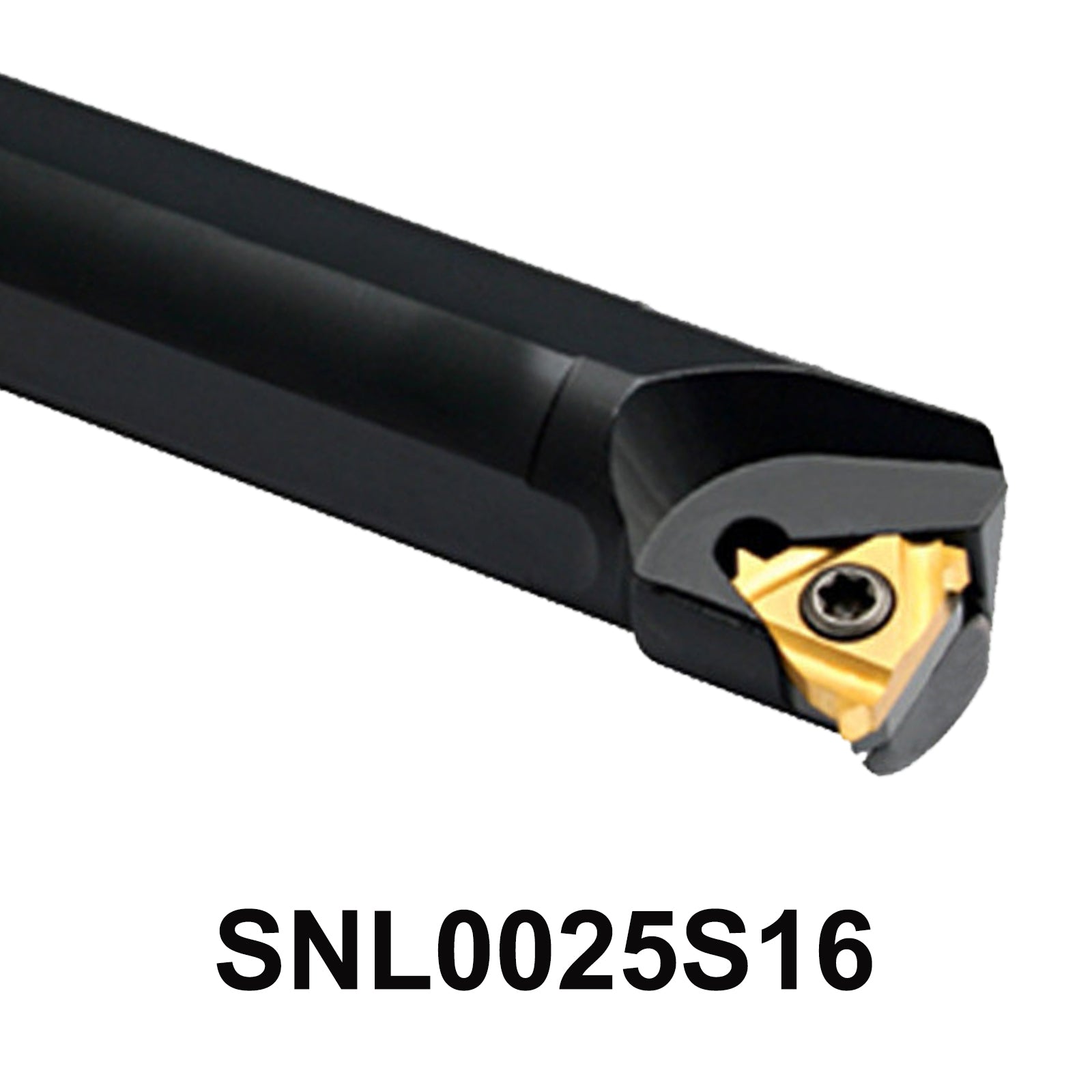

Introducing the SNL0025S16 Internal Threading tool expertly crafted for precision machining and reliability in internal threading applications

This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 29mm and a cutting length of 250mm, compatible with 16NL inserts ,allowing for accurate and efficient internal cuttings

Product parameters:

• Tool Holder Model:  SNL0025S16

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : Internal thread
• Cutting direction : Right cut
• Height of tool nose : 00mm
• ΦDmin :29mm
• Φd : 25mm
• Width of body of cutting tool : 25mm
• Length of cutting tool : 250mm
• Size of blade :
• 1.Side length of traingle : 16mm
• 2.Incircle : 9.525mm
• Applicable blade : 16NL

• Shim : STM1603L
• Screw : M3.5*10
• Wrench : T15
• Lateral screw : M3*8C
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * SNL0025S16 Internal Threading tool

1 * STM1603L Shim

1 * "T" Type wrench

1 * M3.5*10 Type Screw

1 * M3*8C Type Lateral Screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise grooving, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND SNL0025S16 Internal Threading tool SNL0025S16 SNL0025 SNL0025 S16 CNC Cutter Lathe Shank Carbide Insert

• High-Quality SNL0025S16 CNC Internal Threading Tool – Enhanced Performance for Thread Cutting

• Achieve Superior Threading Results with the SNL0025S16 Internal Threading Tool Holder

5-Point Description

1. Precision Internal Threading: The SNL0025S16 Internal Threading Tool is specifically designed for left-cut internal threading operations. It offers accurate thread formation with minimal burrs and clean finishes, ensuring high-quality results in all CNC lathe applications.

2. Optimized Tool Design: Featuring a 25mm width and a total length of 250mm, this tool is built for efficiency and strength. The ΦDmin of 29mm and Φd of 25mm provide optimal support and stability during operation.

3. Versatile Blade Size and Configuration: The included 16mm side length triangular blade with a 9.525mm incircle offers excellent cutting capabilities. Compatible with 16NL inserts, it provides versatility across various internal threading needs.

4. Durability and Reliability: Manufactured with high-quality materials, the tool body and included components such as the M3.5*12 screws and T15 wrench ensure long-lasting durability and reliable operation in heavy-duty machining environments.

5. Complete Tool Kit: The package comes with the tool holder, lateral screw (M3*8C), shim (STM1603L), and all necessary screws and wrenches for quick and easy assembly. It's an all-in-one solution for precision threading operations.
