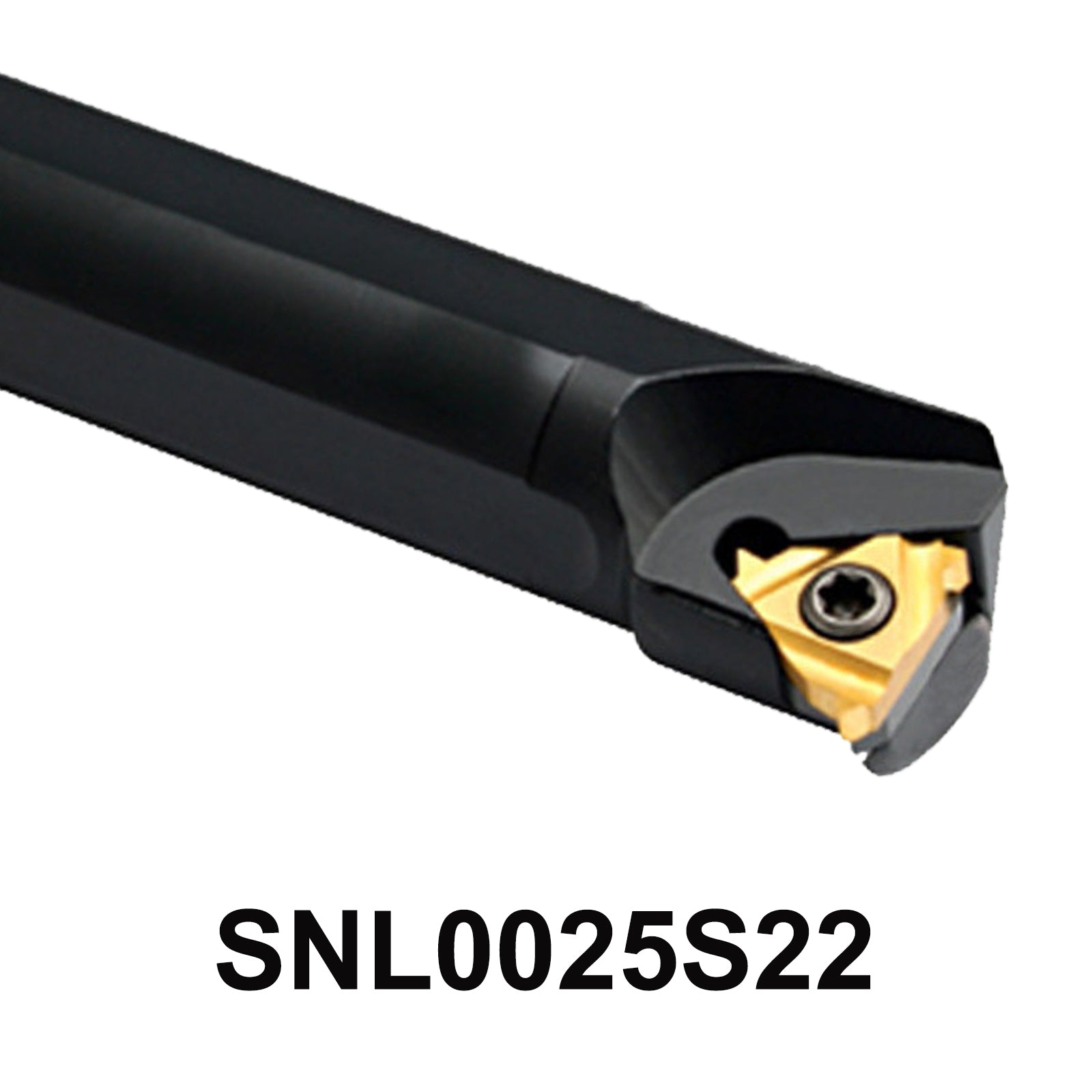

SNL0025S22 CNC Thread Tool for Internal Threading – Left Cut, 250mm, Compatible with 22NL Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNL0025S22 Thread Tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 31mm and a cutting length of 250mm, compatible with 22NL inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNL0025S22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin :31mm
- Φd :25mm
- Width of body of cutting tool : 25mm
- Length of cutting tool : 250mm
- Size of blade :
- 1.Side length of traingle : 22mm
- 2.Incircle : 12.7mm
-
Applicable blade : 22NL
- Shim: STM22T3L
- Screw : M4*14
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNL0025S22 Thread Tool
1 * STM22T3L Shim
1 * "T" Type wrench
1 * M4*14 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0025S22 Thread Tool SNL0025S22 SNL0025 SNL0025 S22 CNC Cutter Lathe Shank Carbide Insert
High-Quality CNC Lathe Cutter – 250mm Length, 25mm Body Width for Internal Threads
Ideal Tool for Left-Cut Internal Threading – Includes Tool Holder, Screws, Shim, and Wrench
5-Point Description
-
Precision Left-Cut Internal Threading
The SNL0025S22 is engineered for high-precision left-cut internal threading, ensuring smooth, accurate threads in a variety of materials. Its specialized design offers exceptional cutting performance in demanding CNC operations. -
Durable and Robust Design
Featuring a 25mm body width and 250mm length, this tool is built to withstand heavy use while maintaining stability and minimizing vibrations. The tool's ΦDmin of 31mm ensures reliable performance for larger internal diameters. -
Compatible with 22NL Inserts
The SNL0025S22 is compatible with 22NL inserts, offering versatility for different internal threading requirements. Insert replacements are quick and easy, making the tool adaptable for various machining tasks. -
Comprehensive Package
This product comes with everything you need for installation and setup: the tool holder, an M4*14 screw, a M3*8C lateral screw, a shim (STM22T3L), and a T15 wrench. The included accessories make it easy to get started right away. -
Ideal for CNC Lathe Machines
Designed for use with CNC lathes, the SNL0025S22 is perfect for professionals who require precision and reliability. Whether working on complex or simple internal threading projects, this tool delivers top-tier performance for a variety of machining needs.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
