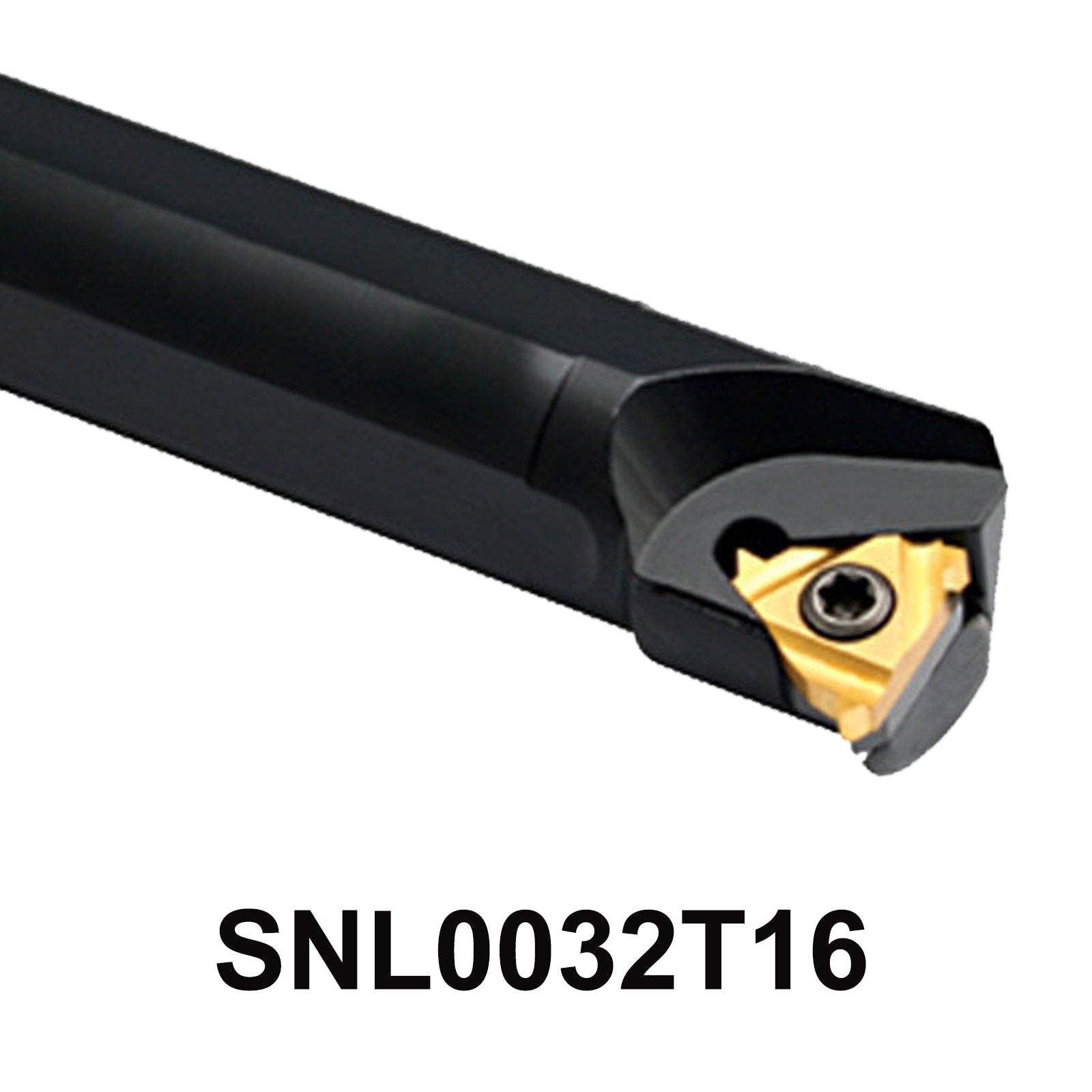

SNL0032T16 Indexable Internal Threading Tool – CNC Lathe Cutter, Compatible with 16NL Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNL0032T16 Indexable Internal Threading Tool expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 36mm and a cutting length of 300mm, compatible with 16NL inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNL0032T16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin :36mm
- Φd : 32mm
- Width of body of cutting tool : 32mm
- Length of cutting tool : 300mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NL
- Shim : STM1603L
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNL0032T16 Indexable Internal Threading Tool
1 * STM1603L Shim
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0032T16 Indexable Internal Threading Tool SNL0032T16 SNL0032 SNL0032 T16 CNC Cutter Lathe Shank Carbide Insert
-
Maximize Threading Efficiency with the SNL0032T16 Internal Thread Tool Holder
-
Key Features of the SNL0032T16: Durable, Accurate, and Easy to Use
5-Point Description
-
Precision Internal Threading: The SNL0032T16 is engineered for high-precision internal threading on CNC lathes. Designed with a left-cut cutting direction, it ensures clean and accurate internal threads for a variety of machining applications.
-
High-Quality Tool Construction: With a 32mm body width and 300mm length, this tool holder provides exceptional stability and rigidity during operation. Its robust design is built to withstand heavy-duty use, delivering consistent performance for demanding projects.
-
Optimized for 16NL Inserts: The tool is compatible with 16NL inserts, ideal for threading and ensuring precise, long-lasting cuts. The blade features a 16mm side length and 9.525mm incircle, providing enhanced cutting capabilities.
-
Complete Package for Easy Setup: The SNL0032T16 comes with the complete package including the tool holder, screws (M3.512), lateral screw (M38C), shim (STM1603L), and a T15 wrench for easy assembly and immediate use.
-
Versatile and Reliable: Designed for internal threading, this tool is perfect for applications requiring high precision, long tool life, and minimal downtime. Whether you're working with hard metals or softer alloys, the SNL0032T16 provides unmatched performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
