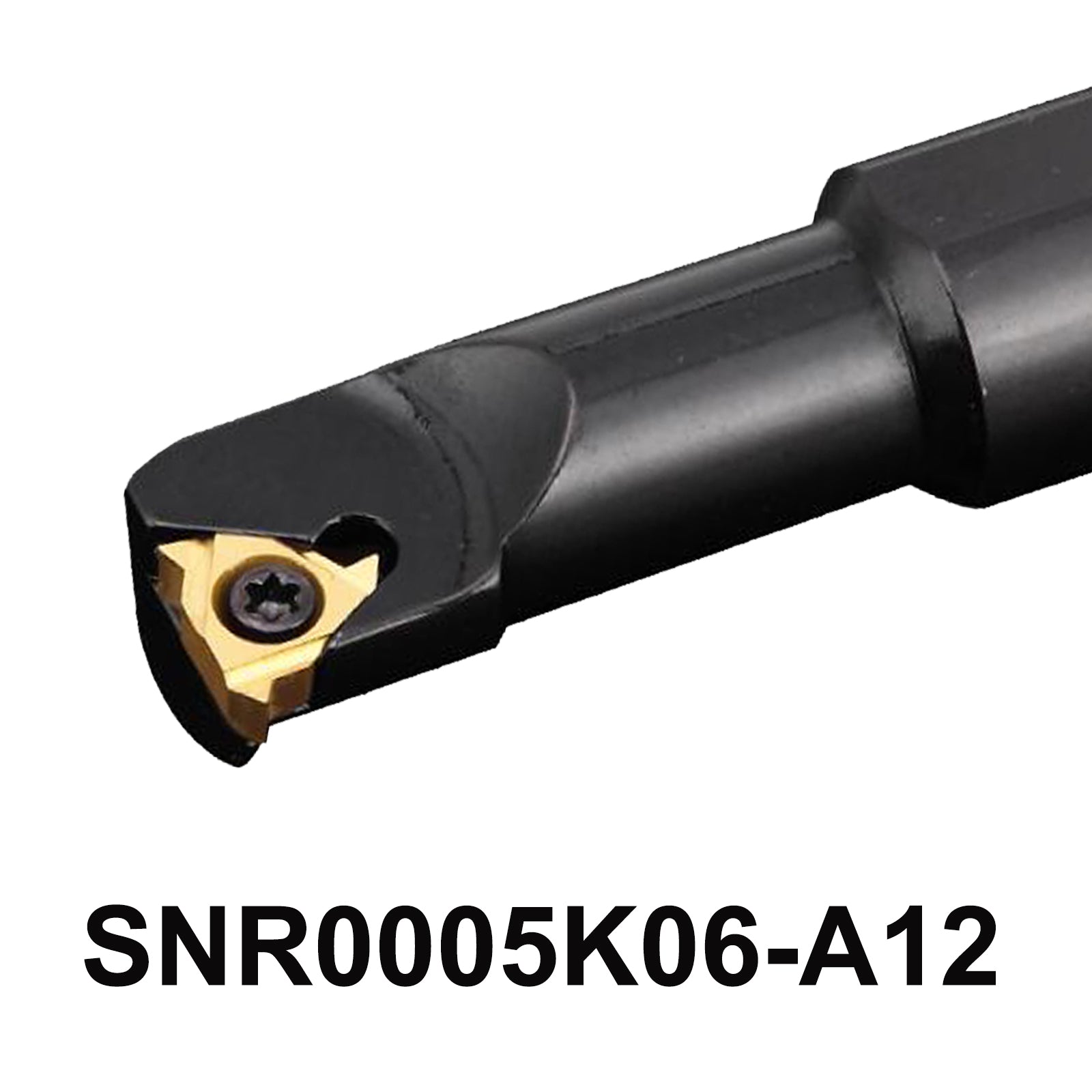

SNR0005K06-A12 CNC Internal Threading Turning Tool | Right-Cut | Compatible with 06NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SNR0005K06-A12 Internal Threading Turning Tools is a high-quality CNC lathe cutter designed for right-hand internal thread cutting.
Featuring a tool length of 125mm and a body width of 5mm, compatible with 06NR inserts,this tool is built to withstand rigorous machining operations.
Product parameters:
-
Tool Holder Model: SNR0005K06-A12
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :7mm
- Φd :16mm
- Width of body of cutting tool : 5mm
- Length of cutting tool : 125mm
-
Applicable blade : 06NR
- Screw : M2.0*6
- Wrench : T8
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0005K06-A12 Internal Threading Turning Tools
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise threading, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0005K06-A12 Internal Threading Turning Tools SNR0005K06-A12 SNR0005 SNR0005K06 A12 CNC Cutter Lathe Shank Carbide Insert
-
Key Features of the SNR0005K06-A12 Internal Threading Tool Holder
-
Why the SNR0005K06-A12 is the Best Choice for Your CNC Internal Threading Needs
5-Point Description
-
Right-Cut Internal Threading
The SNR0005K06-A12 is designed for right-cut internal threading, ensuring smooth, accurate threads in a variety of materials and applications. -
Wide Compatibility with 06NR Inserts
This tool holder is specifically designed to work with 06NR inserts, offering excellent threading results and the flexibility to use a variety of cutting geometries for different thread forms. -
Compact and Durable Construction
With a 5mm body width and 125mm length, this tool holder is built for precision and durability, providing high rigidity for optimal cutting performance in tight spaces. -
Easy Setup with Included Accessories
The package comes with M2.0*6 screws and a T6 wrench, allowing for quick and easy installation so you can start working without delay. -
Precision Thread Cutting
The ΦDmin of 7mm and Φd of 16mm design allows for precise internal threading operations, making this tool holder ideal for high-precision CNC lathe applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
