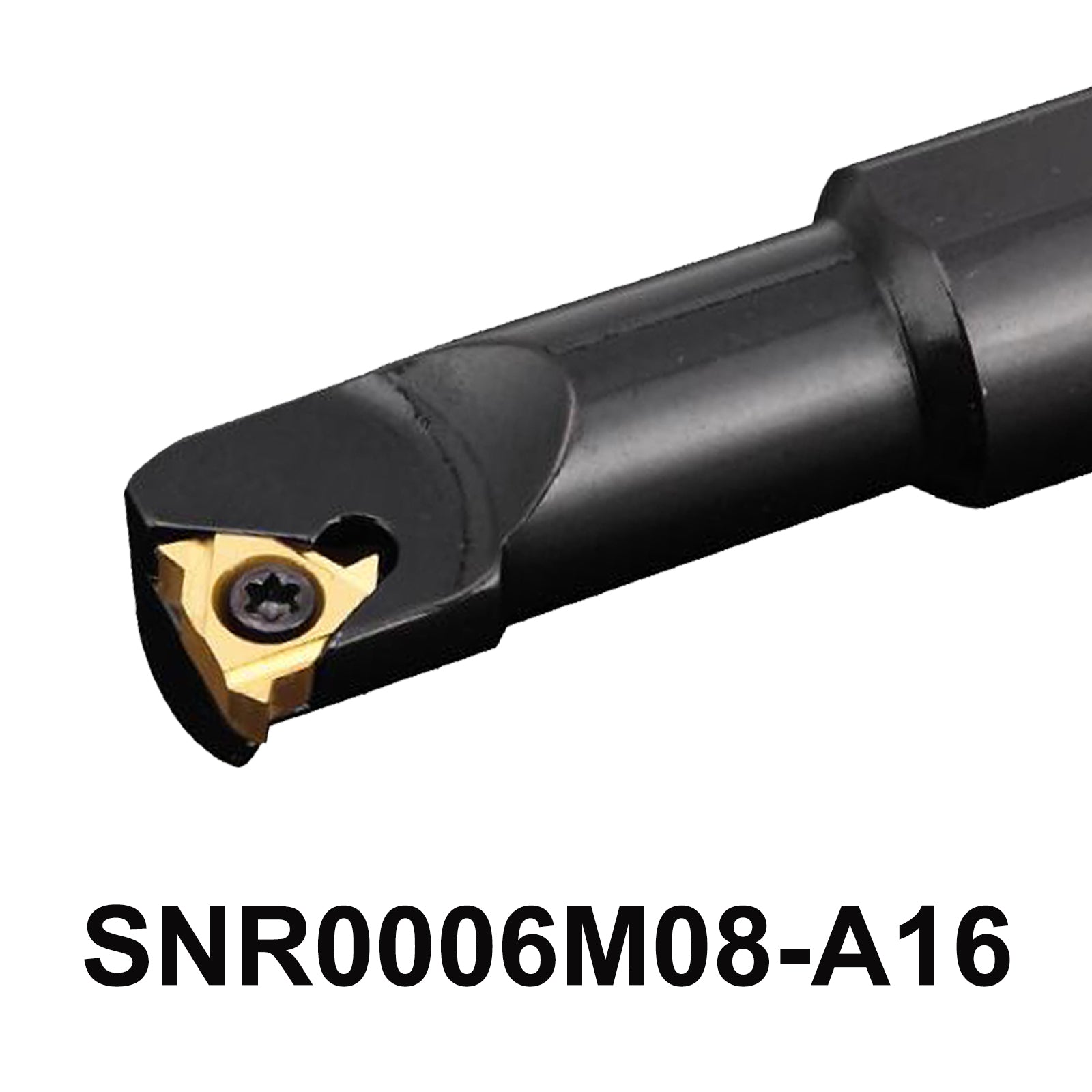

SNR0006M08-A16 CNC Threading Tool Holder for Internal Threading – Durable, Precise & Easy to Use
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SNR0006M08-A16 CNC Threading Tool is a high-quality CNC lathe cutter designed for right-hand internal thread cutting.
Featuring a tool length of 150mm and a body width of 8mm, compatible with 08NR inserts,this tool is built to withstand rigorous machining operations.
Product parameters:
-
Tool Holder Model: SNR0006M08-A16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin : 8mm
- Φd :16mm
- Width of body of cutting tool : 8mm
- Length of cutting tool : 150mm
-
Applicable blade : 08NR
- Screw : M2.5*6
- Wrench : T8
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0006M08-A16 CNC Threading Tool
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise threading, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0006M08-A16 Internal Threading Turning Tools Holder SNR0006M08-A16 SNR0006 SNR0006M08 A16 CNC Threading Tool
-
High-Quality CNC Threading Tool for Reliable Right-Cut Internal Threads
-
Premium Tool Holder for CNC Lathes – Includes Screws, Wrenches, and More
5-Point Description
-
Precision Engineering for Internal Threading
The SNR0006M08-A16 CNC threading tool is designed specifically for internal thread cutting with exceptional precision. Its right-cut direction ensures smooth and accurate thread creation for a wide range of applications. -
Durable and Reliable Construction
Crafted with a robust body width of 8mm and a cutting tool length of 150mm, this tool is built for long-lasting durability and reliable performance in demanding CNC machining environments. -
Compatible with 08NR Inserts
This tool holder is optimized for use with 08NR inserts, ensuring high cutting performance and flexibility across different threading tasks. Enjoy consistent results with every use. -
Complete Set with Accessories
The package includes the CNC threading tool holder, M2.5*6 screws, and a T8 wrench, providing everything you need to get started immediately and maintain optimal performance. -
Easy to Use and Maintain
With the included M2.5*6 screws and T8 wrench, installation and maintenance are straightforward, ensuring minimal downtime and maximum productivity for your CNC lathe operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
