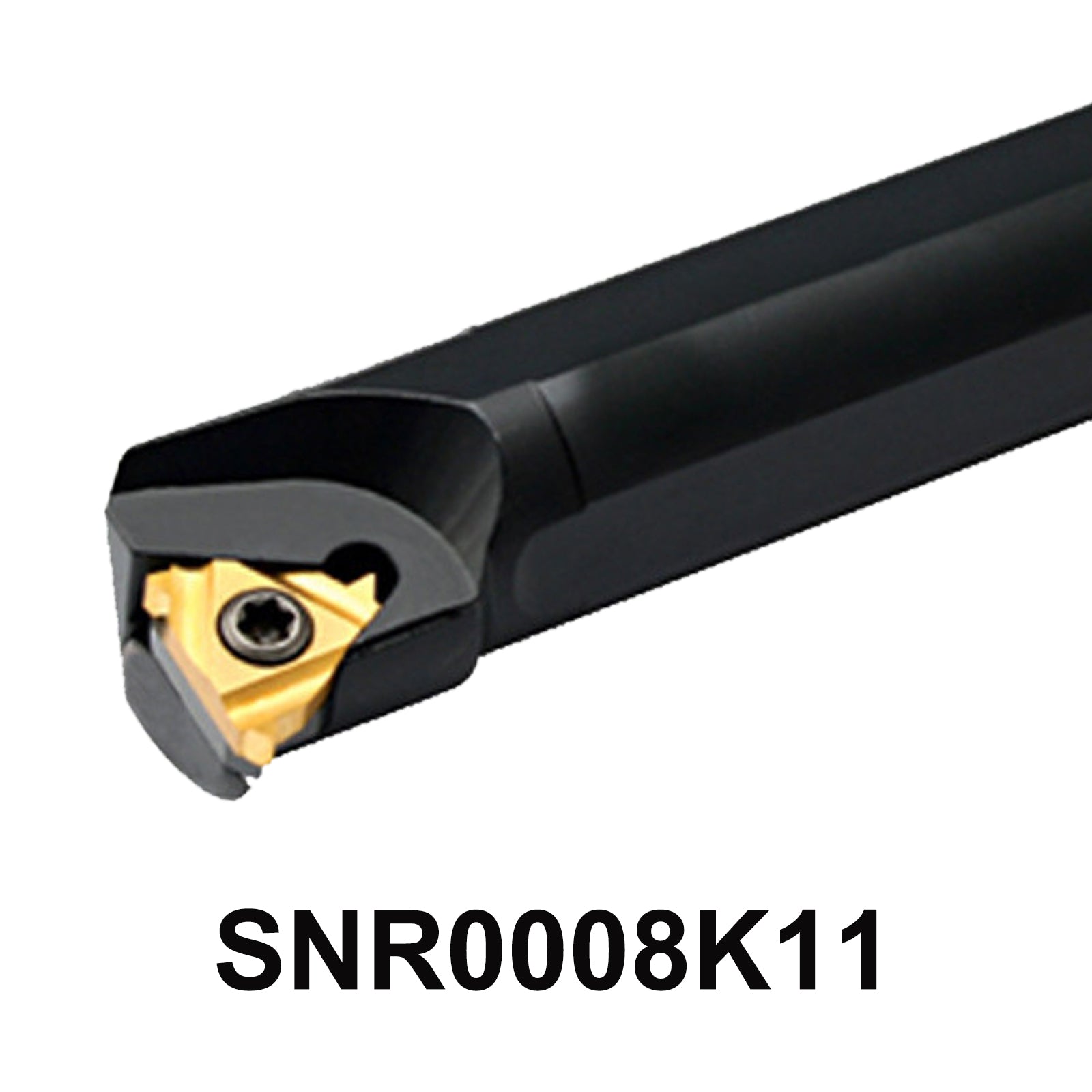

Shop SNR0008K11 Internal Threading Turning Tool – CNC Lathe Cutter Holder with Complete Setup
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0008K11 Internal Threading Turning Tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 11mm and a cutting length of 125mm, compatible with 11NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0008K11
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :11mm
- Φd :8mm
- Width of body of cutting tool : 8mm
- Length of cutting tool : 125mm
- Size of blade :
- 1.Side length of traingle : 11mm
- 2.Incircle : 6.35mm
-
Applicable blade : 11NR
- Screw : M2.5*7
- Wrench : T8
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0008K11 Internal Threading Turning Tools
1 * "T" Type wrench
1 * M2.5*7 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0008K11 Internal Threading Turning Tools SNR0008K11 SNR0008 SNR0008 K11 CNC Cutter Lathe Shank Carbide Insert
-
Key Features of the SNR0008K11 Internal Threading Tool
-
Why SNR0008K11 is the Ideal Tool for Your Internal Thread Cutting Needs
5-Point Description
-
Ultimate Precision – The SNR0008K11 is engineered for high-accuracy internal threading, ensuring superior results in your machining projects with minimal tool wear.
-
Versatile Compatibility – Designed to work seamlessly with 11NR inserts, this tool holder is perfect for a variety of applications, enhancing your shop's versatility and productivity.
-
Complete Package for Ease of Use – The tool comes with everything you need, including the tool holder, M2.57 screws, T8 wrench, and M38C lateral screws, making it easy to set up and start cutting right away.
-
Robust Construction – With a length of 125mm, a body width of 8mm, and a minimum diameter of 11mm, the SNR0008K11 is built to withstand demanding machining processes without compromising performance.
-
Designed for Right-Hand Cutting – The right-hand cutting direction optimizes the tool for internal thread profiles, making it an essential addition to any machinist’s toolkit.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
