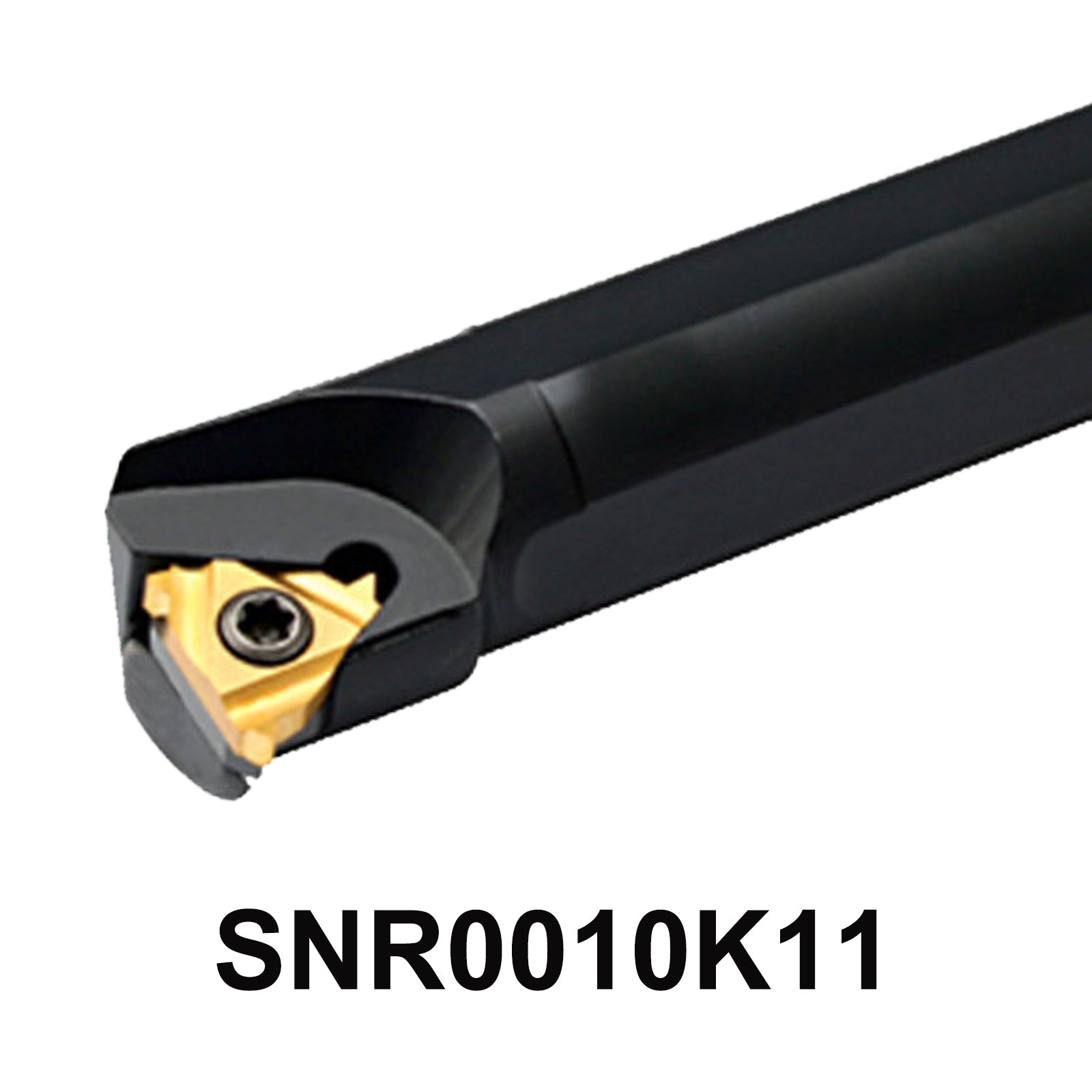

SNR0010K11 Internal Threading Holder & Boring Bar – Precision CNC Tool Holder for Internal Threading
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0010K11 Internal Threading Turning Tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 13mm and a cutting length of 125mm, compatible with 11NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0010K11
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :13mm
- Φd : 10mm
- Width of body of cutting tool : 10mm
- Length of cutting tool : 125mm
- Size of blade :
- 1.Side length of traingle : 11mm
- 2.Incircle : 6.35mm
-
Applicable blade : 11NR
- Screw : M2.5*7
- Wrench : T8
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0010K11 Internal Threading Turning Tools
1 * "T" Type wrench
1 * M2.5*7 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0010K11 Internal Threading Turning Tools Holder SNR0010K11 SNR0008 SNR0010 K11 CNC Cutter Lathe Shank Carbide Insert
-
Elevate Your Machining Experience with SNR0010K11 Internal Threading Tool Holder
-
Precision Engineering with SNR0010K11 – Designed for Efficient Internal Threading
5-Point Description
-
Innovative Design for Internal Threading: The SNR0010K11 features a screw compression type pressing plate, specifically designed for creating high-quality internal threads with remarkable precision. This tool holder ensures your internal machining tasks are efficient and accurate.
-
Right-Cutting Direction for Enhanced Performance: With a right-cutting direction, this tool holder facilitates smooth cutting, minimizing tool chatter and enhancing surface finish. Experience better control and improved cutting performance with every use.
-
Versatile Compatibility: Designed to accommodate inserts of type 11NR, the SNR0010K11 provides versatility in machining different material types. Paired with the appropriate tools, it ensures optimal performance tailored to your specific requirements.
-
Complete Toolholder Package: Each package includes the SNR0010K11 tool holder along with necessary screws (M2.57) and a T8 wrench, as well as lateral screws (M38C). This comprehensive package ensures you have everything needed for a quick setup and straightforward operation.
-
Compact and Durable Construction: With a cutting tool length of 125mm, a minimum diameter of 13mm, and a body width of 10mm, the SNR0010K11 is built for durability and strength, providing reliable performance even in demanding machining environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
